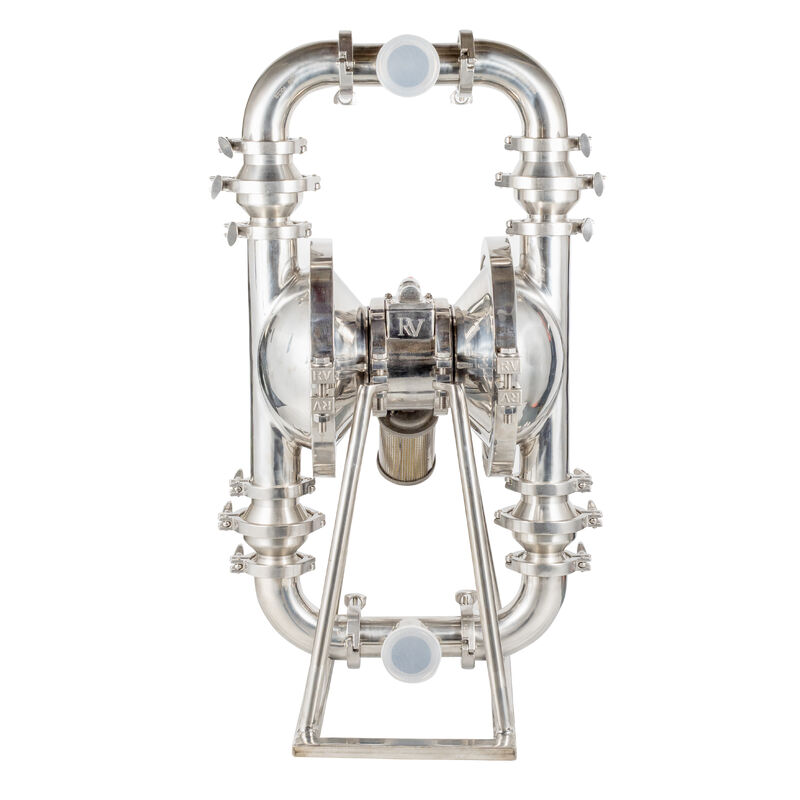

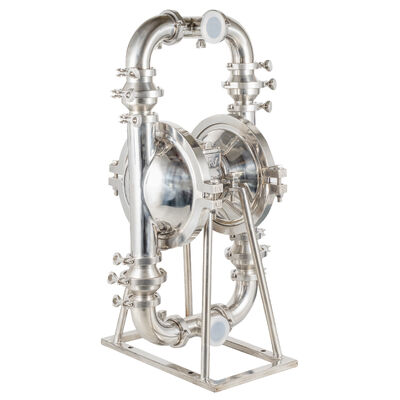

RV Sanitary Air Operated Double Diaphragm Pump

The RV sanitary AODD pump is designed for food, beverage, dairy, pharmaceutical and biotech industries that require strict hygienic standards. It features a smooth, crevice-free sanitary structure, easy disassembly and full CIP / SIP cleaning capability, to avoid medium residue and bacterial growth.

Constructed from high-grade stainless steel with polished wetted surfaces. Food-grade diaphragm options including EPDM and PTFE are available, fully compliant with food contact requirements. Pneumatic drive design offers intrinsic safety, suitable for transferring viscous liquids, fruit pulp, sauce, cream and other sanitary media.

Technical Data

• Max Working Pressure: 72 Psi (0.5 MPa, 5 bar)
• Max Flow Rate: 120 GPM (455 LPM)
• Max Reciprocating Speed: 135 CPM
• Dry Suction Lift: 5 m
• Max Permitted Solid Grain: 6 mm
• Max Air Consumption: 40 L/s
• Weight (Stainless Steel Version): 63 kg

Applications Dairy, juice, beverage, jam, sauce, pharmaceutical raw liquid, cosmetic slurry and other sanitary fluid transfer.
