PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

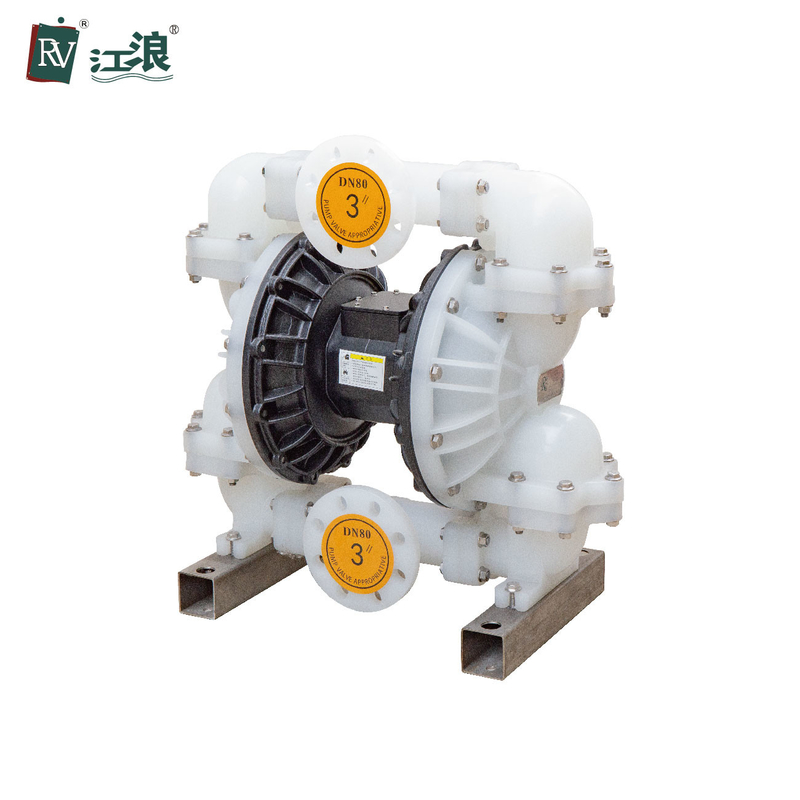

PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment

PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment
PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment

Large Image :  PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-K5A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment

Description
Materal: PVDF Brand: RV
Max Solid Passage: 0.37 In (9.4 Mm) Pump Weight: 79 Kgs
Max. Flow Rate: 1022 LPM Carton Size: 840×480×800mm
Size: 3 Inch Air Disctibution System: Three-way Pilot Valve
Ball / Seats: PTFE
High Light:

PVDF Pneumatic Operated Diaphragm Pump

,

Pneumatic Diaphragm Pump Explosion Proof

,

Water Treatment Air Driven Diaphragm Pump

Air Operated PVDF 3 Inch Mini Explosion Proof Submersible Diaphragm Dosing Pumps In Water Treatment



Air Operated Diaphragm Pump Advantages



Chemical industry: acid, alkali, solvent, suspension, dispersion system.

Petrochemical industry: crude oil, heavy oil, grease, mud, sludge, etc.

Coating industry: resin, solvent, colorant, paint, etc.

Daily chemical industry: detergent, shampoo, emulsion, emulsion, hand cream, surfactant.

Ceramic industry: mud, porcelain pulp, lime pulp, clay pulp.

Mining: coal slurry, magma, mud, mortar, explosive slurry, lubricating oil, etc.

Water treatment: lime slurry, soft sediment, sewage, chemicals, wastewater.

Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey, animal blood.

Beverage industry: yeast, syrup, concentrate, mixture of gas and liquid, wine, juice, corn pulp, etc.

Pharmaceutical industry: solvent, acid, alkali, plant extract and refining liquid, ointment, plasma and other pharmaceutical material liquid.

Paper industry: binder, resin, paint, ink, pigment, hydrogen peroxide, etc.

Electronic industry: solvent, electroplating fluid, cleaning fluid, sulfuric acid, nitric acid, waste acid, corrosive acid, polishing fluid.

Textile industry: dyestuff chemicals, resins, adhesives, etc.

Construction industry: cement slurry, ceramic tile binder, rock slurry, ceiling paint, etc.

Automotive industry: polishing emulsion, oil, coolant, automotive primer, oil emulsion, varnish, varnish additives, degreasing fluid, paint, etc.

Furniture industry: binder, varnish, dispersion system, solvent, color agent, white wood glue, epoxy resin, starch binder.

Metallurgy, casting and dyeing industries: metal pulp, hydroxide and carbonized pulp, dust washing pulp, etc



Features



3 in (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt

• Bolted leak-free, flanged connections — no clamp bands used

• Large flow paths for high viscosities

• Easy air valve maintenance

• Heavy-duty construction

• Fluid flow up to 270 gpm (1022 lpm)

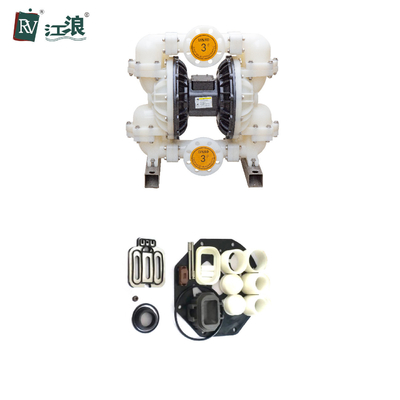

REPAIR KITS FOR WET END



Part No. Part Code Part Name Qty
1 8001-TF Valve Ball 4 pcs
2 8002-PVDF Valve Seat 4 pcs
3 8003-FCP Seat O-ring 8 pcs
4 8005-TF Diaphragm 2 pcs
5 8006-ST Backup Diaphragm 2 pcs
6 8008-TF Plate O-ring 4 pcs










PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment 0






Packing & Shipping:



PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment 1PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment 2

PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment 3PVDF Explosion Proof Air Operated Diaphragm Pump For Water Treatment 4

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
