Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation

Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation
Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation

Large Image :  Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation

Product Details:
Place of Origin: Shanghai, China
Brand Name: RV
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $1,485 / set
Contact Now

Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation

Description
Application: Automotive Industry Pressure: Other
Warranty: 1 Year Customized Support: OEM, ODM
Power Source: Pneumatic Structure: Diaphragm Pump
Material: Aluminum Name: Diaphragm Pump
Color: Black Weight: 99.5kgs
Brand: RV Packing: Carton
Max Pressure: 120psi(0.84Mpa,8.4bar) Pump Body: Aluminum
Max Flow: 270gpm(1022pm)
Highlight:

aluminum alloy diaphragm pump

,

pneumatic diaphragm pump for wastewater

,

3-inch diaphragm pump for irrigation

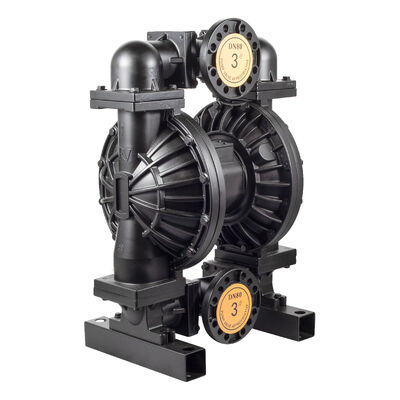

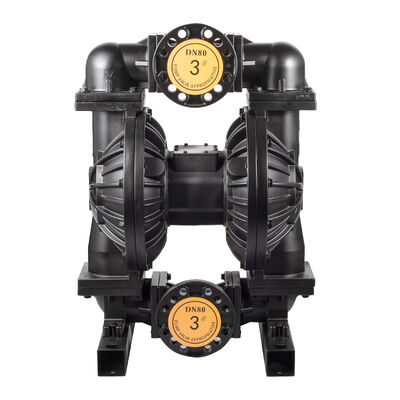

Aluminum Alloy Pneumatic Double Diaphragm Pump
Low Pressure 3-Inch model designed for wastewater treatment, irrigation, agriculture applications with leak detection rubber components.
Product Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 270gpm (1022L/M)
Max Reciprocating Speed 135cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37inch (9.4mm)
Max Air Consumption 90L/S
Air Inlet Size 3/4inch
Air Outlet Size 1in
Fluid Inlet Size 3in
Fluid Outlet Size 3in
Weight Aluminum pump: 122KGS | Stainless steel pump: 115KGS
Product Images
Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation 0 Aluminum Alloy Pneumatic Double Diaphragm Pump 3-Inch for Wastewater Treatment and Irrigation 1
Company Profile
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
Our Capabilities
  • Strong design, innovation, and precision production capabilities
  • Cooperation with Shanghai universities for R&D
  • Main products: diaphragm pumps and control valves
  • Over 40 patents including 10 invention patents
  • Participated in setting national standards for pneumatic diaphragm pumps
  • Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS
Material Options
Wetted Parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
Diaphragm Materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
Connection Types: Threaded (1/4" to 1-1/2") and Flanged (1/2" to 3")
Our Service Commitment
  • All enquiries replied within 24 working hours
  • Professional pump production with dedicated design team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service and technical support
Frequently Asked Questions
Minimum Order Quantity
1 piece for regular products. Sample costs can be deducted from future orders.
Payment Methods
D/P, T/T, Western Union - confirmed with exact order details.
Delivery Time
1-7 working days depending on quantity requirements.
Packaging
Cartons with foam inside, wooden cases, and pallets for secure shipping.
Shipping Methods
International express or sea freight available.
Warranty
15 years warranty for air motor, 5 years for pump body.
Customization
Yes, we can produce products according to custom specifications and requirements.
