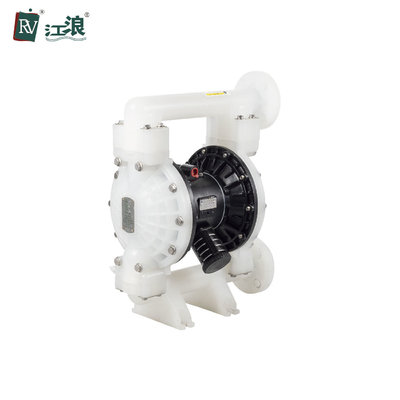

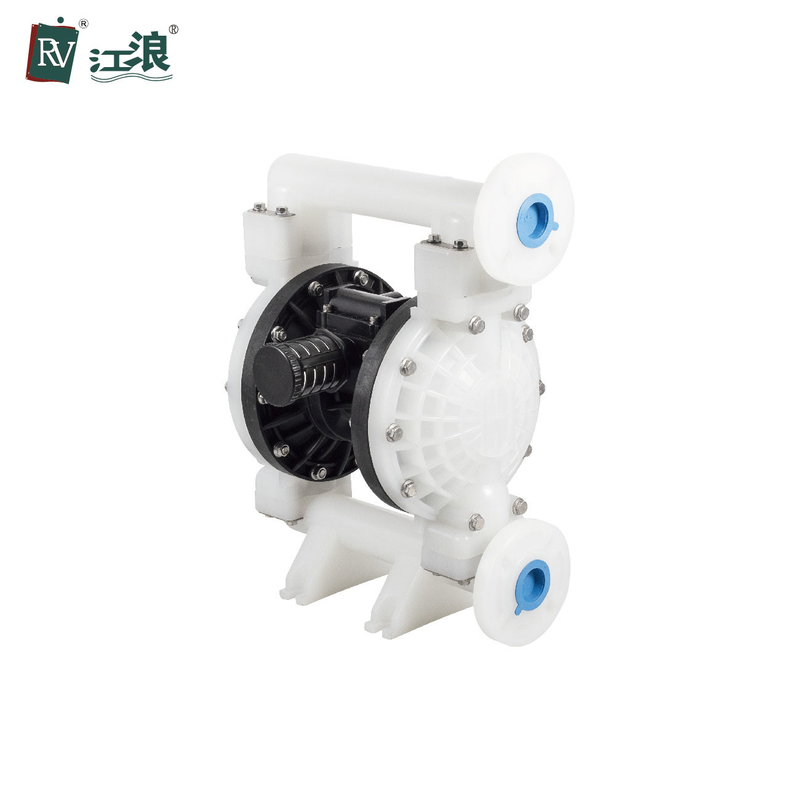

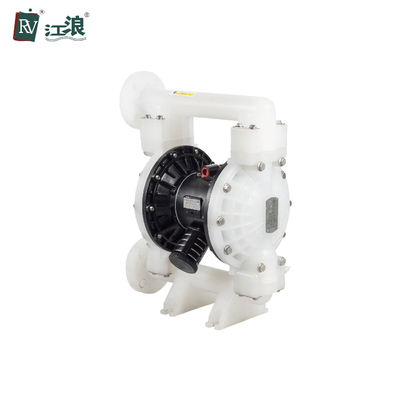

1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump

1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump
1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump 1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump 1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump

Large Image :  1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-B2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump

Description
Materal: PP Brand: RV
Color: White Flow Rate: 446L/M
Weight: 18kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVP-B2A11-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

1-1/2 inch diaphragm sludge pump

,

RV diaphragm sludge pump air powered

,

1-1/2 inch air powered water transfer pump

1-1/2 inch diaphragm sludge pump air powered oil transfer pump

Main Advantages of Plastic Diaphragm Pump :
- Due to the use of air power, the flow automatically changed according to export resistance. Which is suitable for high viscosity fluid.
- In inflammable and explosive environment, the pump is reliable and low cost, won't produce spark and not overheat,
- The pump volume is small, easy to move, no foundation needed, convenient installation and economy. Can be used as mobile conveying pump.
- Where there are dangers, corrosive materials processing, diaphragm pump can be separated completely with outside.
- The pump shearing force is low, physical effect to medium is small, can be used for conveying unstable chemistry fluid
.


Plastic Diaphragm Pump Function Description:


A Simple structure,reliable connection ,easy assembly and disassembly.
B Modular design,low air consumption,no dead spots and no need lubrication.
C Enhanced the chamber strength,has long_term durability.
D Bolts connection design,good seal.
E Adopt special grinding machine to process in high roundness and good seal.
F Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm.




Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 118 gpm(446lpm)
Max Reciprocating Speed 200 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Max Air Consumption 80scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight PP pump 16kg; PVDF pump20kg


1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump 0
Company Information:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
1-1/2 Inch Diaphragm Sludge Pump Air Powered Water Transfer Pump 1

Our service
* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.


2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.


3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.


4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.


5. Q: How are the products delivered to us?
A: By International express.


6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)


7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
