Aluminum Pneumatic Diaphragm Pump with 57L/M Flow Rate for Industrial Applications

Large Image : Aluminum Pneumatic Diaphragm Pump with 57L/M Flow Rate for Industrial Applications

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RV
Model Number:	RV-P-53366-t

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$188 / set

Contact Now

Aluminum Pneumatic Diaphragm Pump with 57L/M Flow Rate for Industrial Applications

Description

Application:	Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, Hvac OEM, Industrial Boilers, Industrial Utilities, Irrigation And Ag	Customized Support:	OEM, ODM
Power Source:	Pneumatic	Structure:	Diaphragm Pump
Color:	Black	Function:	Transport Liquid
Flow Rate:	57L/M	Keywords:	Diaphragm Pump
Name:	Air Operated Diaphragm Pump	Material:	Aluminum
Product Name:	Pump	Warranty:	One Year ( Except For Wearing Parts)
Weight:	4.5kgs	Other Name:	Air Driven Diaphragm Pump
Highlight:	aluminum sanitary ware diaphragm pump , ceramic slip conveying diaphragm pump , pneumatic diaphragm pump with warranty

Aluminum Sanitary Ware Ceramic Slip Conveying Pneumatic Diaphragm Pump

Technical Specifications

Parameter	Specification
Max Working Pressure	100 psi (0.7Mpa, 7bar)
Max Flow Rate	15gpm (57L/M)
Max Reciprocating Speed	400cpm
Max Suction Height (Dry Sucking)	4.5 m
Max Permitted Grain	2.5mm
Max Air Consumption	20 scfm (10L/S)
Air Inlet Size	1/4 in
Air Outlet Size	3/8 in
Fluid Inlet Size	1/2 - 3/4 in
Fluid Outlet Size	1/2 - 3/4 in
Weight	Aluminum pump: 4.5KGS \| Stainless steel pump: 6.8KGS

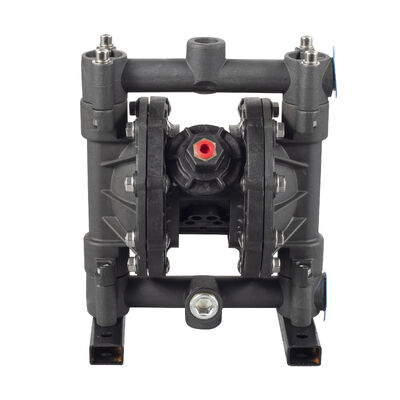

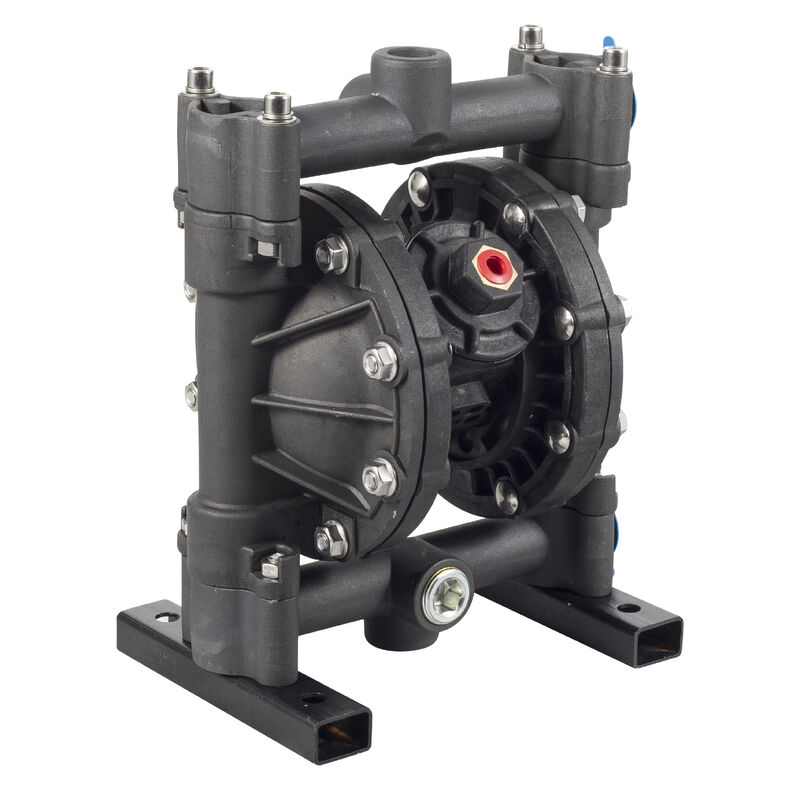

Product Images

Packaging & Delivery

Manufacturer Profile

Shanghai Jiangliang Technology Co., Ltd is a high-tech enterprise headquartered in Shanghai with 2 production bases and 3 branches across China. We specialize in precision manufacturing of diaphragm pumps and control valves.

Core Competencies

Strong design and innovation capabilities with university partnerships
Over 40 patents including 10 invention patents
Contributor to national technical standards (SH/T 3191-2017)
Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS
Serves chemical, coating, water treatment, petroleum, environmental, food and pharmaceutical industries
Established partnerships with global companies including BASF, Bayer, and SAMSUNG
Export to over 70 countries and regions

Available Materials & Configurations

Wetted Parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel

Diaphragm Materials: Teflon, Santoprene, Viton, Hytrel, Buna-N

Available Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection Types: Threaded (1/4" to 1-1/2" plastic, all metal pumps) | Flanged (1/2" to 3" plastic pumps)

Customer Service

All inquiries responded within 24 working hours
Professional design team and engineering support
Standard export wooden case packaging (non-fumigation)
Fast and responsive after-sales service

Frequently Asked Questions

Minimum Order Quantity

1 piece for regular products. Sample costs are deductible from future orders.

Payment Methods

D/P, T/T, Western Union - confirmed with exact order details.

Delivery Time

1-7 working days depending on quantity requirements.

Packaging

Cartons with foam interior, wooden cases, and pallets for secure shipping.

Shipping Methods

International express or sea freight based on customer requirements.

Warranty

15-year warranty for air motor, 5-year warranty for pump body.

Custom Specifications

Yes, we can produce products according to custom requirements and specifications.
