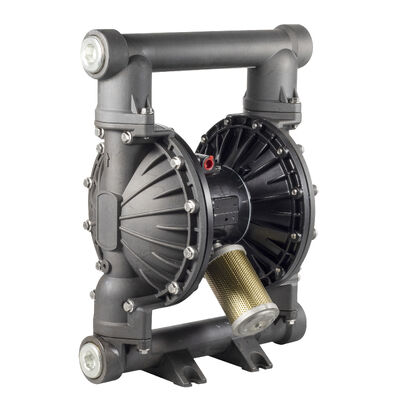

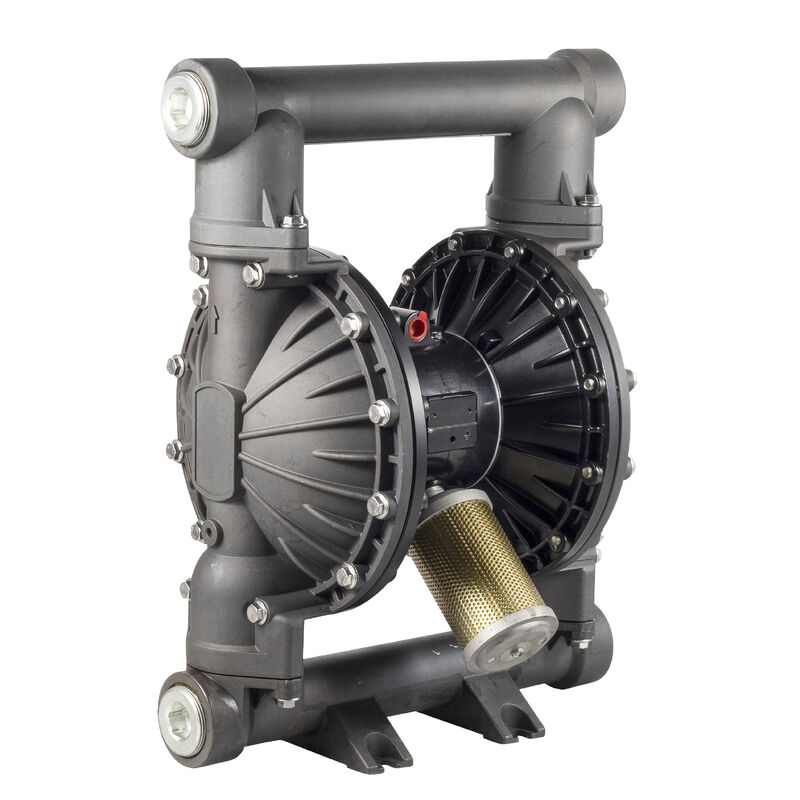

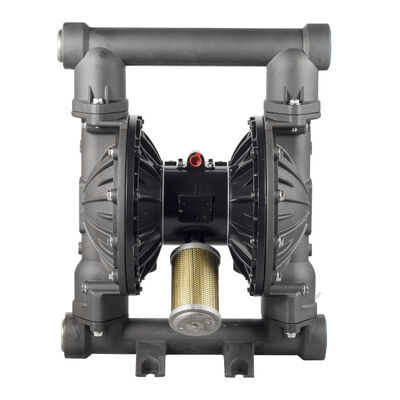

2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate

2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate
2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate

Large Image :  2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate

Product Details:
Place of Origin: Shanghai, China
Brand Name: RV
Model Number: RV-A-F3366-T
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $511 / set
Contact Now

2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate

Description
Application: Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, Hvac OEM, Industrial Boilers, Industrial Utilities, Irrigation And Ag Warranty: 1 Years
Customized Support: OEM Power Source: Other
Structure: Diaphragm Pump Material: Aluminum
Color: Grey Function: Fluid Handling, Pump Industrial Applications
Weight: 32KGS Model: RV-A-F3377-T
Flow Rate: 570l/m MOQ: 1pc
Package: Carton Max Pressure: 8.4bar
Pump Body: Aluminum
Highlight:

2 inch aluminum diaphragm pump

,

air operated double diaphragm pump

,

pneumatic chemical transfer pump

Product Overview
Pneumatic Water Chemical 2 Inch Aluminum Air Operated Drive Double Diaphragm Pump - High-performance industrial pump designed for demanding chemical and water transfer applications.
Technical Specifications
Max Working Pressure120 psi (0.84Mpa, 8.4bar)
Max Flow Rate150 gpm (570 L/M)
Max Reciprocating Speed145 cpm
Max Suction Height (Dry Sucking)5m
Max Permitted Grain0.24 min (6mm)
Max Air Consumption140 scfm (70 L/S)
Air Inlet Size1/2 in
Air Outlet Size3/4 in
Fluid Inlet Size2 in
Fluid Outlet Size2 in
WeightAluminum pump: 29KGS, Stainless steel pump: 47KGS, Ductile iron pump: 57.5KGS
Product Images
2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 0 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 1
Key Advantages
2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 2
  • Robust construction with multiple material options
  • High efficiency with minimal air consumption
  • Dry-run capability with 5m suction height
  • Handles abrasive fluids with up to 6mm particles
  • Multiple connection types available
Packaging & Delivery
2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 3 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 4 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 5 2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 6

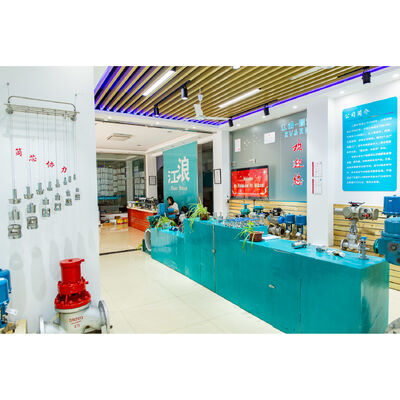

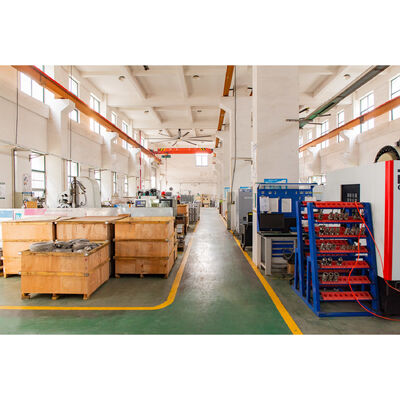

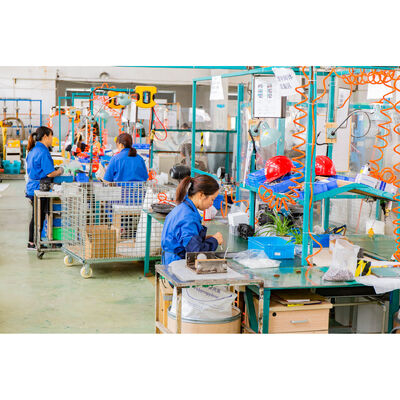

Manufacturer Profile
2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 7
Company Introduction
Shanghai Jiangliang Technology Co., Ltd is a high-tech enterprise headquartered in Shanghai with multiple production bases and branches across China. We specialize in precision manufacturing of diaphragm pumps and control valves with over 40 patents, including 10 invention patents.
Certifications & Standards
TS.A National Manufacturing License, CE, ATex, ISO9001, SGS certifications. Contributor to national technical standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017).
Material Options
Wetted Parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, Stainless steel
Diaphragm Materials: Teflon, Santoprene, Viton, Hytrel, Buna-N
Connection Types: Threaded (1/4" to 1-1/2"), Flanged (1/2" to 3")
Customer Service
2 Inch Aluminum Air Operated Double Diaphragm Pump with 570L/M Flow Rate 8
  • 24-hour response time for all inquiries
  • Professional engineering design team support
  • Standard export wooden case packaging
  • Comprehensive after-sales service
Frequently Asked Questions
What is the minimum order quantity?
1 piece for regular products. Samples available with cost deduction from future orders.
What payment methods are accepted?
D/P, T/T, Western Union - confirmed based on exact order requirements.
What is the delivery time?
1-7 working days depending on quantity.
How are products packaged?
Cartons with foam, wooden cases, and pallets for secure shipping.
What is the warranty period?
15 years warranty for air motor, 5 years for pump body.
Can products be customized?
Yes, we produce according to custom specifications and requirements.
