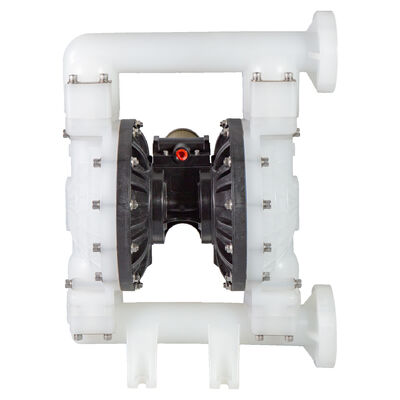

2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment

2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment

Large Image :  2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment

Product Details:
Place of Origin: Shanghai, China
Brand Name: RV
Model Number: RV-P-F2A66-F
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: $603.80 / set
Contact Now

2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment

Description
Application: Other, Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, Hvac OEM, Industrial Boilers, Industrial Utilities, Irrigation And Ag Pressure: Low Pressure
Warranty: 1 Year Customized Support: OEM, ODM
Power Source: Pneumatic Structure: Diaphragm Pump
Voltage: None Material: PP
Name: Diaphragm Pump Color: White
Weight: 30kgs Diaphragm: SP(EPDM)
Brand: RV Packing: Carton
Max Pressure: 120psi(0.84Mpa,8.4bar) Pump Body: Pp
Max Flow: 150gpm(570lpm)
Highlight:

2 inch pneumatic diaphragm pump

,

PP air driven wastewater pump

,

plastic diaphragm pump with warranty

Specification
Max Working Pressure
120 psi (0.84Mpa , 8.4bar)
Max Flow Rate
150gpm(570L/M)
Max Reciprocating Speed
145cpm
Max Suction Height (Dry Sucking)
5m
Max Permitted Grain
0.2in. (6mm)
Max Air Consumption
140scfm(70L/S)
Air Inlet Size
1/2in
Air Outlet Size
3/4 in
Fluid Inlet Size
2 in
Fluid Outlet Size
2 in
Weight
PP pump： 31KGS
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 0
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 2
Our Advantages
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 4
Packing & Delivery
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 6
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 8
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 10
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 12

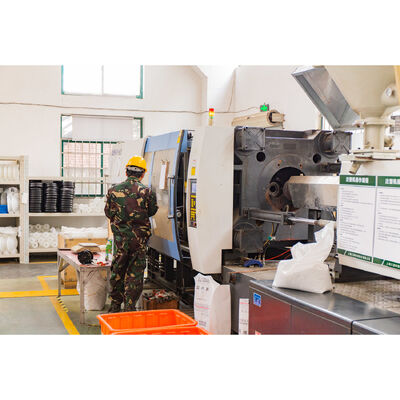

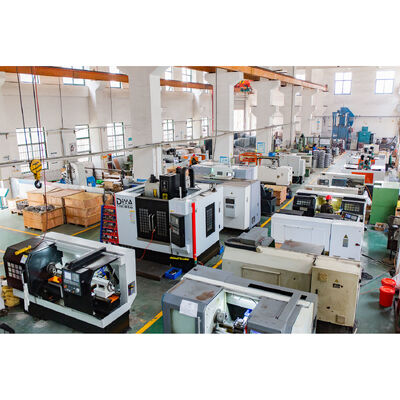

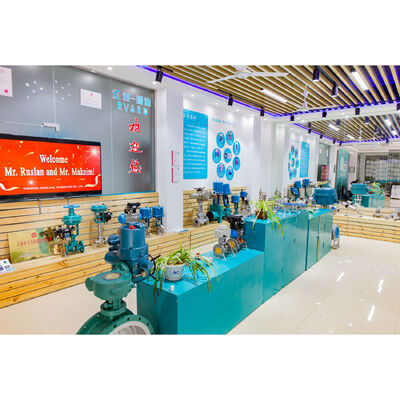

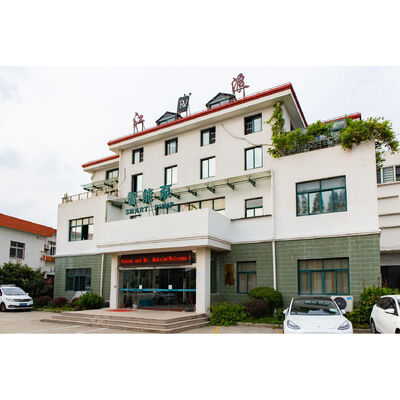

Company Profile
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 14
Company Introduction:
Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
Our Service
2" PP Air Driven Pneumatic Diaphragm Pump for Low Pressure Wastewater Treatment 16
* All of the enquiry will be replied within 24 working hours

* Professional pump producer, with design team.

* All of the goods are packed with standard export wooden case (non-fumigation)

* Fast after-service
FAQ
1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
