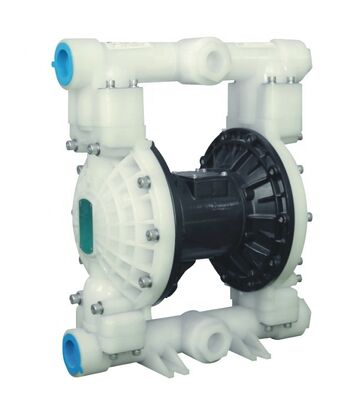

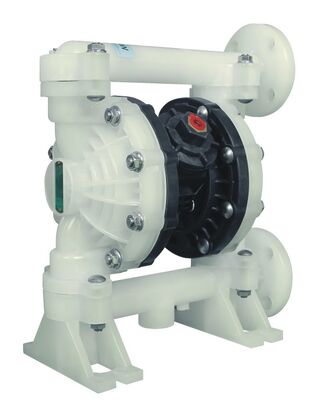

1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump

1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump

Large Image :  1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump

Product Details:
Place of Origin: Shanghai, China
Brand Name: RV
Model Number: RVP-B2A11-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $486 / set
Contact Now

1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump

Description
Application: Other Pressure: Low Pressure
Warranty: 1 Year Customized Support: OEM, ODM
Power Source: Pneumatic Structure: Diaphragm Pump
Voltage: NONE Color: White
Function: Transport Liquid Flow Rate: 192 L/M
Keywords: Diaphragm Pump Name: Air Operated Diaphragm Pump
Material: Carbon Fiber Product Name: Pump
Warranty: One Year ( Except For Wearing Parts) Weight: 4.6kgs
Other Name: Air Driven Diaphragm Pump
Highlight:

1-1/2 inch pneumatic diaphragm pump

,

air powered PP plastic pump

,

double diaphragm pump for wastewater

Specification
Max Working Pressure
120 psi (0.84Mpa , 8.4bar)
Max Flow Rate
90gpm(340 L/M)
Max Reciprocating Speed
200cpm
Max Suction Height (Dry Sucking)
5m
Max Permitted Grain
0.2 inch (5mm)
Max Air Consumption
80 scfm(40 L/S)
Air Inlet Size
1/2 inch
Air Outlet Size
3/4 inch
Fluid Inlet Size
1.1/2 inch
Fluid Outlet Size
1.1/2 inch
Weight
14Kgs
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 0
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 2
Our Advantages
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 4
Packing & Delivery
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 6
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 8
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 10
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 12

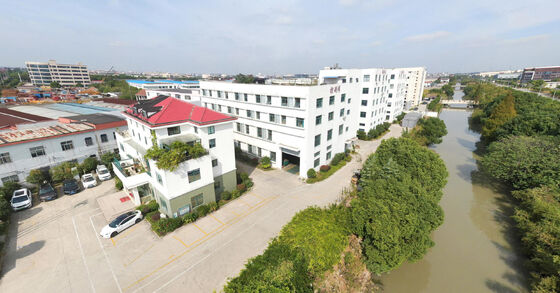

Company Profile
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 14
Company Introduction:
Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
Our Service
1-1/2 Inch PP Plastic Pneumatic Diaphragm Pump for Wastewater Treatment Air Operated Double Diaphragm Pump 16
* All of the enquiry will be replied within 24 working hours

* Professional pump producer, with design team.

* All of the goods are packed with standard export wooden case (non-fumigation)

* Fast after-service
FAQ
1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
