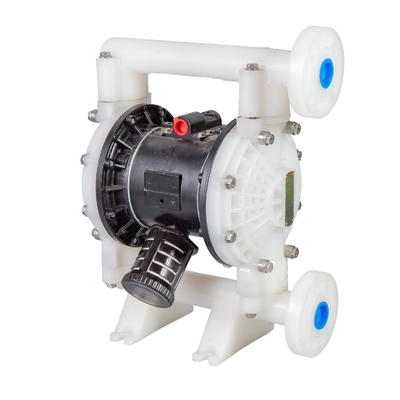

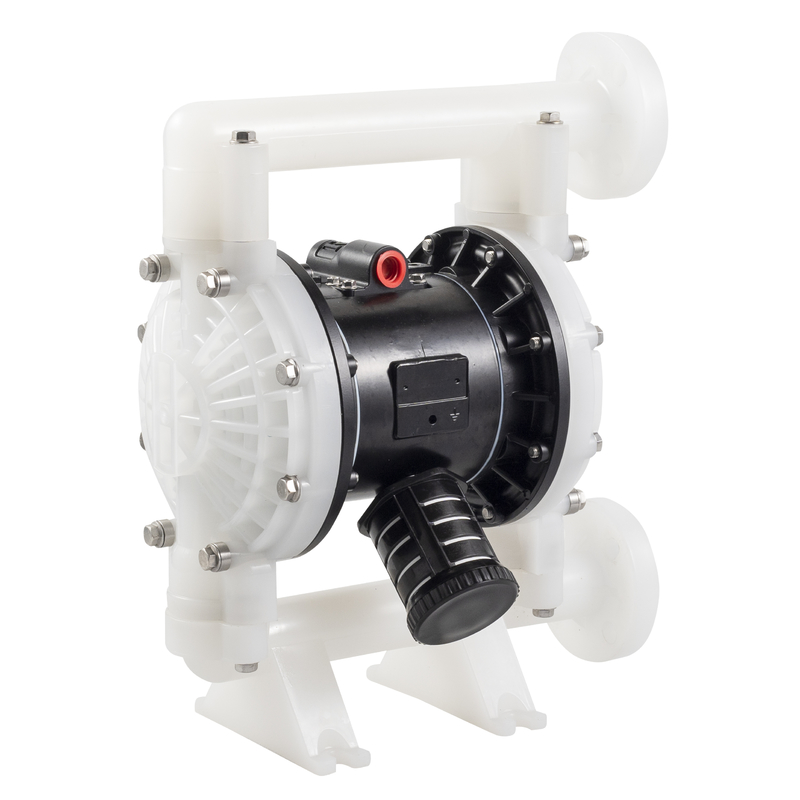

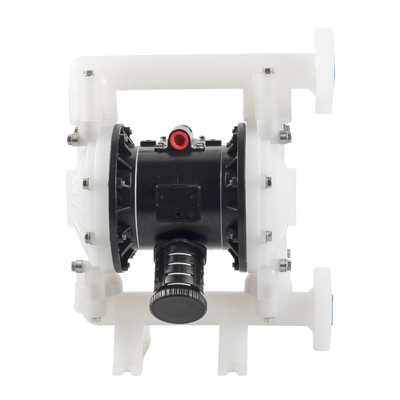

AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment

AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment
AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment

Large Image :  AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $325
Contact Now

AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment

Description
Max Working Pressure: 120 Psi (0.84Mpa, 8.4bar) Max Flow Rate: 40gpm (150lpm)
Max Reciprocating Speed: 276cpm Max Suction Height: 5m
Max Permitted Grain: 0.16in. (4mm) Max Air Consumption: 45 Scfm (22.5L/S)
Air Inlet Size: 1/2 In Air Outlet Size: 3/4 In
Fluid Inlet Size: 1in Fluid Outlet Size: 1in
Weight: 8.2KGS Wetted Parts Material: PP, PVDF, Acetal, Aluminum Alloy, Ductile Iron, Stainless Steel
Diaphragm Material: Teflon, Santoprene, Viton, Hytrel, Buna-N Available Inlet/Outlet Sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection Type: Threaded, Flanged
Highlight:

AdBlue diaphragm pump 120 psi

,

wastewater treatment diaphragm pump

,

plastic diaphragm pump 40gpm

High-Efficiency AdBlue Diaphragm Pump for Wastewater Treatment and Pharmaceutical Industry
Technical Specifications
Parameter Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 40gpm (150lpm)
Max Reciprocating Speed 276cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16in. (4mm)
Max Air Consumption 45 scfm (22.5L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1in
Fluid Outlet Size 1in
Weight (PP pump) 8.2KGS
AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 0 AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 1
Product Advantages
AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 2
Packaging & Delivery
AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 3 AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 4 AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 5 AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 6
Company Profile
AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 7

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our product range includes:

  • Pneumatic Diaphragm Pump
  • Electric Diaphragm Pump
  • Piston Pump
  • Powder Pump
  • Sanitary Pump
  • Diaphragm Pump with Leakage Detector Controller
  • Pneumatic Diaphragm Regulating Valve
  • Control Valve
  • Sequencing Valve

Our products have been granted more than 40 patents, including 10 invention patents. We participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017).

Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS.

Materials Available:

  • Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
  • Diaphragm: Teflon, Santoprene, Viton, Hytrel, Buna-N
  • Inlet/outlet sizes: 1/4" to 3"
  • Connection types: Threaded or flanged
Our Service
AdBlue Diaphragm Pump 120 psi 40gpm for Wastewater Treatment 8
  • All enquiries replied within 24 working hours
  • Professional design and production team
  • Standard export packaging (non-fumigation wooden case)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - please confirm with us for exact order.
Q: What is the delivery time?
A: Depends on quantity. Generally 1-7 working days.
Q: What about packaging?
A: Cartons with foam inside & wooden case & pallet.
Q: How are products delivered?
A: By international express or sea freight.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
