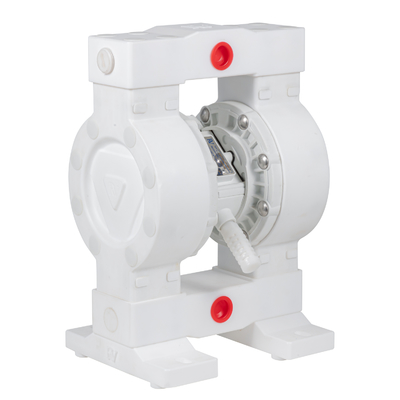

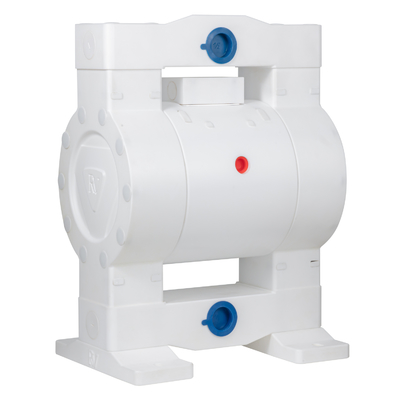

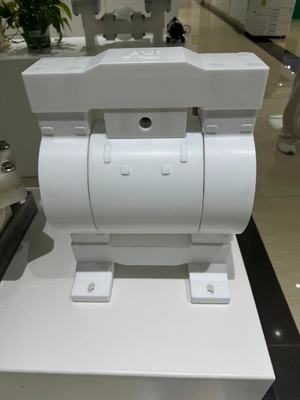

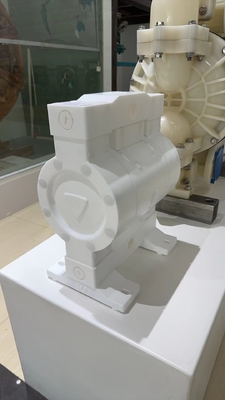

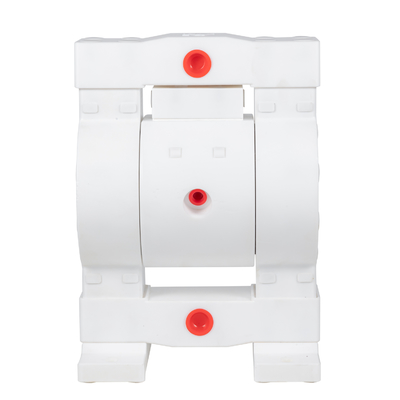

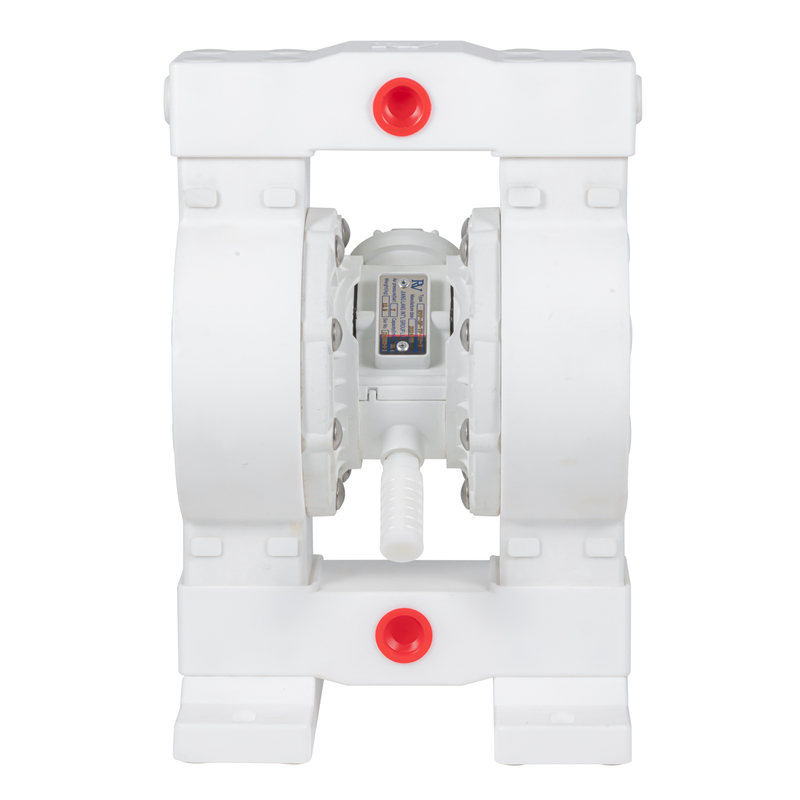

RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure

RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure

Large Image :  RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure

Product Details:
Place of Origin: Shanghai, China
Brand Name: RV
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: $2,667
Contact Now

RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure

Description
Max Working Pressure: 7bar Max Flow Rate: 36lpm
Max Reciprocating Speed: 400cpm Max Suction Height: 3.5m
Max Permitted Grain: 2.5mm Max Air Consumption: 8.510L/S
Air Inlet Size: 1/4 In Air Outlet Size: 3/8 In
Fluid Inlet Size: 1/2 3/4 In Fluid Outlet Size: 1/2 3/4 In
Weight: 16 Kg Diaphragm Material: PTFE
Pump Body Material: Aluminum Outlet Size: 1/2
Power Source: Pneumatic
Highlight:

RV PTFE diaphragm pump 36lpm

,

pneumatic diaphragm pump 100psi

,

PTFE diaphragm pump high flow

Full PTFE Diaphragm Pump for RV for Wastewater Drinking Water & Industrial Treatments
Product Specifications
Attribute Value
Warranty 1 year
Customized Support OEM, ODM
Power Source Pneumatic
Structure Diaphragm Pump
Outlet Size 1/2
Material PTFE
Color Black
Weight 16kgs
Diaphragm PTFE
Brand RV
Packing Carton
Max Pressure 100psi (0.7Mpa, 7bar)
Pump Body Aluminum
Max Flow 36lpm
Technical Details
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 0
Max Working Pressure 7bar
Max Flow Rate 36lpm
Max Reciprocating Speed 400cpm
Max Suction Height (Dry Sucking) 3.5m
Max Permitted Grain 2.5mm
Max Air Consumption 8.510L/S
Air Inlet Size 1/4 in
Air Outlet Size 3/8 in
Fluid Inlet Size 1/2 3/4 in
Fluid Outlet Size 1/2 3/4 in
Weight PTFE pump 16 kg
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 1 RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 2
Product Advantages
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 3
  • High-performance PTFE diaphragm for chemical resistance
  • Aluminum pump body for durability and lightweight construction
  • Pneumatic operation for safe use in various environments
  • Versatile for wastewater, drinking water, and industrial applications
Packing & Delivery
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 4 RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 5 RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 6 RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 7
Company Profile
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 8

Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years. We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry.

Our Service
RV PTFE Diaphragm Pump 36lpm Max Flow 100psi Pressure 9
All enquiries will be replied within 24 working hours
Professional pump producer with dedicated design team
Standard export packaging with wooden cases (non-fumigation)
Fast and reliable after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depend on the quantity. Generally speaking, 1-7 working days.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
