Product Details:
|
| Materal: | Aluminum | Brand: | RV |
|---|---|---|---|
| Color: | Silver Gray | Flow Rate: | 340 L/M |
| Usage: | Air Diaphragm Pump | Carton Size: | 49*28*66cm |
| DN (mm): | 40 Mm | Model: | RVA-B3311-T |
| Max. Pressure: | 8.4 Bar | Feature: | Eco-Friendly |
| High Light: | RV double diaphragm pump 446L/M,Air double diaphragm pumps flow rate 446L/M,Double aodd pump 446L/M |
||

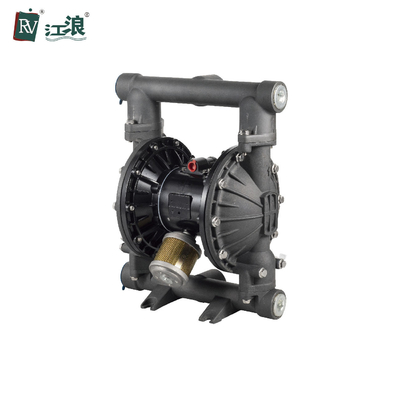

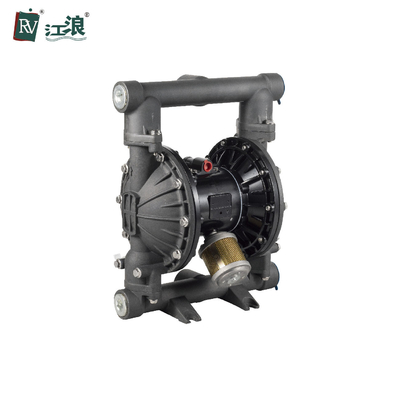

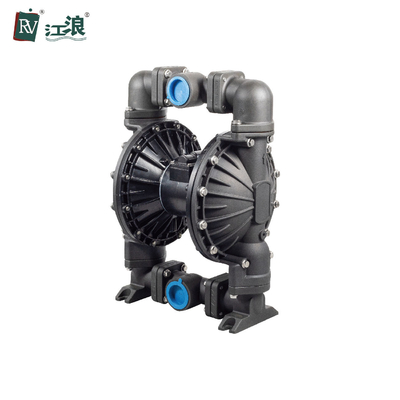

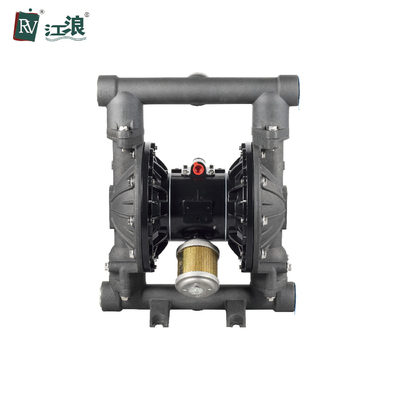

1-1/2 inch Aluminum Double Diaphragm Pump For Chemical Fuel Transfer
Chemical Diaphragm Pumps Application:
Chemical diaphragm pumps measure and dispense chemicals within metered water treatment systems. Chemical metering pump systems treat well water systems. Chemical transfer magnetic drive pumps move liquids such as mild acids, mild alkalis, and saltwater, and they isolate the pump mechanism from the motor to help eliminate seal-caused friction loss, wear, contamination, and leakage.
Installation:
1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.
2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.
3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.
4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Diaphragm Pump |
| Power Driven | Compressed air |
| Max Permitted Grain | 0.2 in(5mm) |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Aluminum |
| Fluid Inlet Size | 1 1/2 in. |
| Fluid Outlet Size | 1 1/2 in. |
| Installation | 480×290×540mm |
Display
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Working Principle:
Chemical diaphragm pump are based on the following working principle: two flexible diaphragms are fitted into two symmetrical chambers of the air diaphragm pump severally and connected as a whole part by a link rod. The compressed air enters the central body through the in-suck terminal and impels the diaphragms in two chambers to drive consequently the link rod into move synchronously. At the same time, the air in the other chamber is expelled from the back side of the diaphragm. When piston reaches the end of the stroke, the air-distributing valve guide compressed air into the other chamber automatically
AIR DIAPHRAGM PUMP SERVICES
· We provide guaranteed first-class technical support services to address all your pumping needs. Our clients can trust in our extensive capacity to offer custom solutions with consistent reliability and high performance.
· We implement comprehensive servicing that is tailor-made to match our client’s needs for air diaphragm pump.
· We supply a vast range of spare parts to maximise the user’s air diaphragm pump experience and convenience.
