Product Details:
|

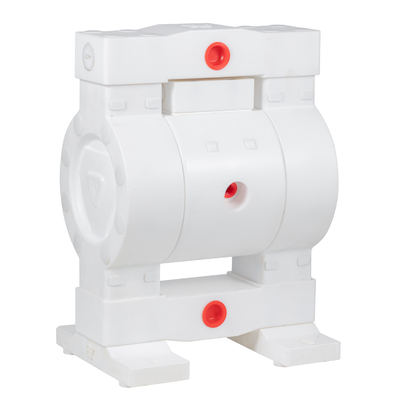

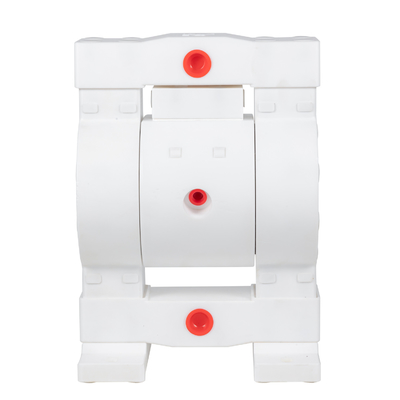

RV Full PTFE Pneumatic Diaphragm Pump
RV ful PTFE pneumatic diaphragm pump is made of polytetrafuoroethylene material with excellent corrosion resistance and high temperatureresistance. it is widely used in chemical industry/electronic circuitoharmaceutical and other fields.
Features
1.Since there are no electrical components, the PTFE pneumalic diaphragm pump wil not generate sparks during operation, making it verysuitable for use in places with explosion risks.
2. Made of full PTFE, it performs very well when conveying strong acid and alkali fluids.3. The fluorine-lined bolts are hidden in the PTFE plugs, which have stronger corrosion in extreme environments
4. The universal design of the upper and lower covers makes maintenance easy and assembly simple.
5. Using integrated composite diaphragm, it can operate continuously for more than 2,000 hours.
6. CNC machined parts have high assembly precision and have better sealing resistance than injection molded parts.
| Model | Max Pressure | Max Flow Rate | Max Reciprocating Speed | Max Suction Height | Max Permitted Grain | Max Air Consumptiom |
| DN15 | 7 Bar | 36lpm | 400cpm | 3.5m | 2.5mm | 8.5 NL/S |
| DN25 | 7 Bar | 125lpm | 276cpm | 3.5m | 4mm | 19.3 NL/S |
| DN40 | 7 Bar | 315lpm | 200cpm | 4.5m | 5mm | 48.6 NLS |
