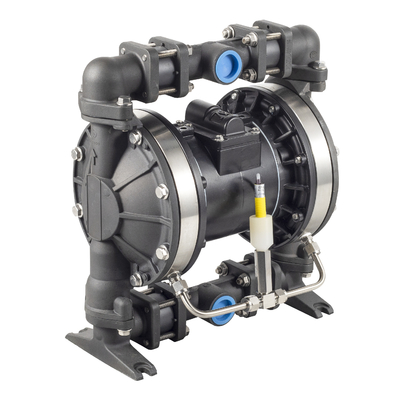

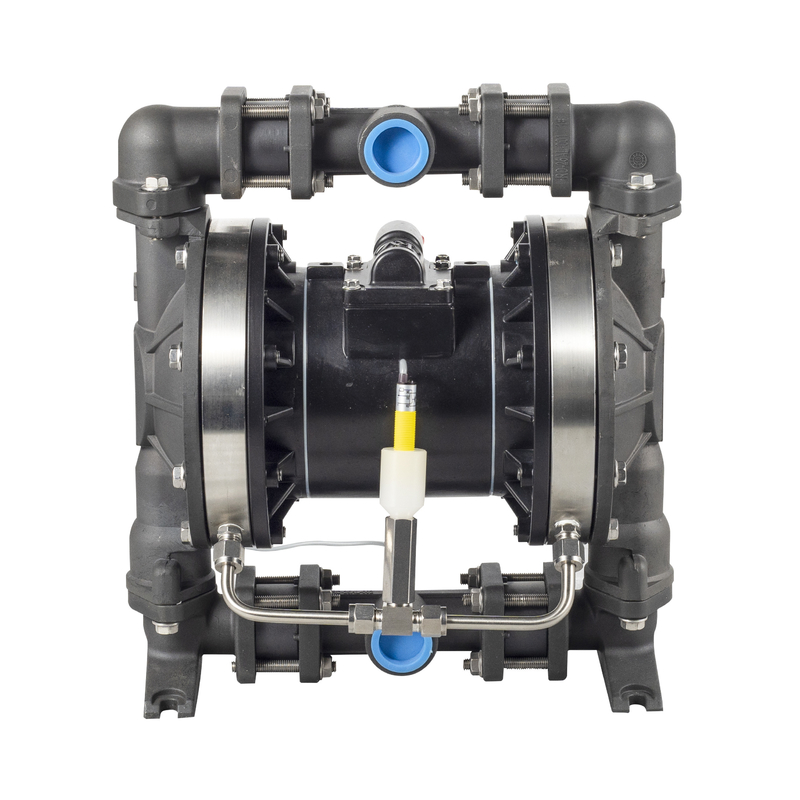

Diaphragm Pump With Leakage Detective Device

A diaphragm pump with a leakage detection device is designed to enhance safety, efficiency, and maintenance by detecting leaks in the diaphragm, which can prevent fluid contamination, pump failure, or hazardous situations. Below is an overview of its working principle, key features, and applications:
How It Works
Diaphragm Pump Basics:
Uses a flexible diaphragm to move fluid through check valves via reciprocating action.
Commonly used for handling corrosive, viscous, or abrasive fluids.
Leakage Detection Mechanism:
Dual Diaphragm Design: Many industrial diaphragm pumps have two diaphragms with a hydraulic fluid chamber in between.
Leak Detection Sensor: If the primary diaphragm fails, fluid leaks into the intermediate chamber, triggering:
Pressure/Vacuum Sensors: Detect changes in the hydraulic fluid.
Float/Conductivity Sensors: Identify fluid presence in the intermediate chamber.
Electronic Monitoring: Some pumps integrate IoT-enabled sensors for real-time alerts.
Automatic Shutdown (Optional):
Advanced systems may stop the pump upon detecting a leak to prevent damage or contamination.
Key Features
Prevents Cross-Contamination: Critical in chemical, food, or pharmaceutical applications.
Reduces Downtime: Early detection allows for timely maintenance.
Safety Compliance: Meets industry standards for hazardous fluid handling.
Versatility: Works with pneumatic, electric, or hydraulic diaphragm pumps.
Applications
Chemical Processing: Handling acids, solvents, or toxic fluids.
Water Treatment: Pumping chlorine, coagulants, or sludge.
Food & Beverage: Avoiding product contamination (e.g., dairy, syrups).
Oil & Gas: Transferring fuels, lubricants, or wastewater.
Medical/Pharma: Ensuring sterile fluid transfer.
Example Designs
Pneumatic Double Diaphragm Pump (AODD):
Uses compressed air; leaks are detected via a central chamber alarm.
Electrically Operated Diaphragm Pump:
Integrates electronic sensors linked to a control panel or PLC.
Advantages of Leak Detection
Cost Savings: Prevents product loss and pump damage.
Envir
