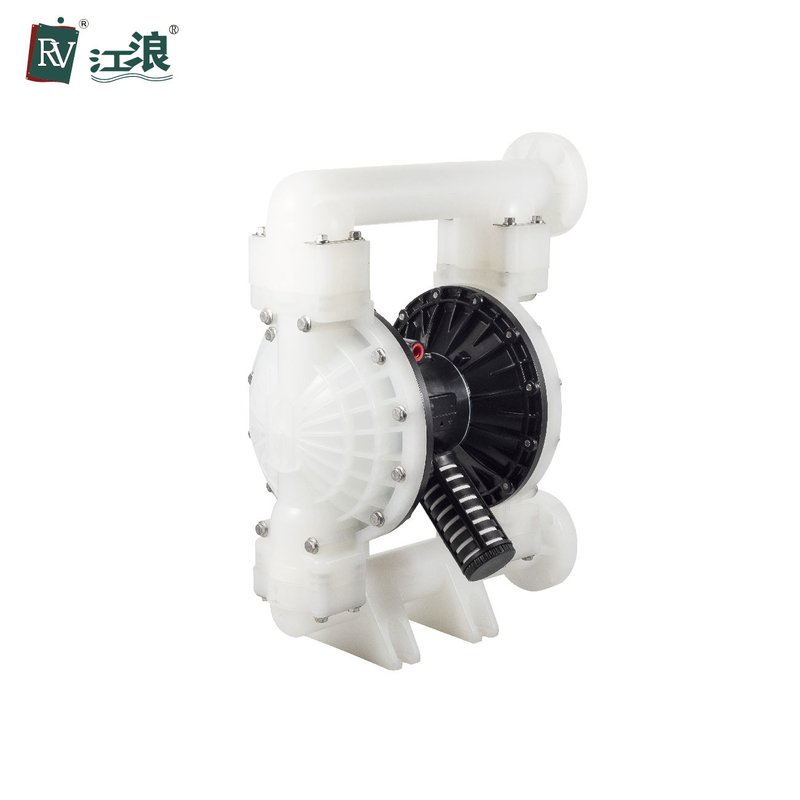

Max Pressure 120 PSI Polypropylene Diaphragm Pump

Max Pressure 120 PSI Polypropylene Diaphragm Pump
Max Pressure 120 PSI Polypropylene Diaphragm Pump

Large Image :  Max Pressure 120 PSI Polypropylene Diaphragm Pump

Product Details:
Place of Origin: China
Brand Name: RV
Model Number: RV-P-72A11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100-1000
Packaging Details: Carton Wooden Case
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, Western Union,

Max Pressure 120 PSI Polypropylene Diaphragm Pump

Description
Dimensions: 41*25*54 Material: PP
Warranty: 1 Year Max Temperature: 60
Air Inlet Size: 1/2 Air Outlet Size: 1/2
Fluid Inlet Size: 1inch Fluid Outlet Size: 1 Inch
High Light:

120 Psi Polypropylene Diaphragm Pump

,

Air Driven Double Polypropylene Diaphragm Pump

Product Description:

The Polypropylene Diaphragm Pump is a reliable and versatile air driven double diaphragm pump designed to meet the requirements of demanding industrial applications. Its light weight and compact design make it ideal for limited space applications. This pump is engineered to provide reliable performance, and features a high-efficiency air motor for superior performance. The easy-to-use design ensures a smooth operation and extended pump life. . The Polypropylene Diaphragm Pump comes with a 1-year warranty. It is an excellent choice for a reliable, low-maintenance and efficient air driven double diaphragm pump.



Features:

  • Product Name: Polypropylene Diaphragm Pump
  • Max Working Pressure :120psi
  • Inlet/Outlet Size: 1/2
  • Flow Rate: 150lpm
  • Material: Polypropylene
  • Air Driven Double Diaphragm Pump


Technical Parameters:

Product Name Specifications
Polypropylene Diaphragm Pump Air Driven Double Diaphragm Pump
Warranty 1 Year
Flow Rate 150lpm
Air Inlet Size  1/2
Air Oulet Size  3/4
Fluid Inlet Size  1 inch
Fluid Outlet Size  1 inch
Weight  8kg
Max Temperature 60

Applications:

Polypropylene Diaphragm Pump is an ideal choice for many industrial and commercial applications. It is powered by an air driven double diaphragm, making it an efficient and reliable pumpIt is designed for long life and comes with a 1-year warranty for added peace of mind. This China-made product is perfect for applications such as transferring and circulating fluids, draining tanks, injectors, valves and many other related tasks. It is suitable for water, oil, acids, chemicals and many other fluid types. This air driven double diaphragm pump is a reliable and cost-effective choice for many industrial and commercial applications.



Packing and Shipping:

Packaging and shipping for Polypropylene Diaphragm Pump is done in an efficient and secure manner. The pump is packed in a sturdy corrugated box with bubble wrap cushioning and is secured with foam padding. The box is then sealed with a plastic wrap and is labelled with the product name and contents. The pump is then shipped in the box with appropriate shipping materials such as pallets, shrink wrap, and/or packing peanuts. The package is then shipped via a reliable shipping company such as FedEx, DHL, or UPS.



FAQ:

Q: What brand is the Polypropylene Diaphragm Pump?
A: The Polypropylene Diaphragm Pump is RV brand and the model number is RV-P-72A11.
Q: Where is the Polypropylene Diaphragm Pump made?
A: The Polypropylene Diaphragm Pump is made in China.
Q: What are the components of the Polypropylene Diaphragm Pump?
A: The Polypropylene Diaphragm Pump is composed of pump body, diaphragm, valve, and other components.
Q: What material is the Polypropylene Diaphragm Pump made of?
A: The Polypropylene Diaphragm Pump is made of polypropylene.
Q: What is the maximum flow rate of the Polypropylene Diaphragm Pump?
A: The maximum flow rate of the Polypropylene Diaphragm Pump is up to 300L/min.
