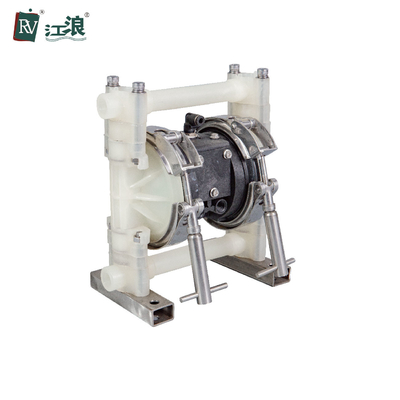

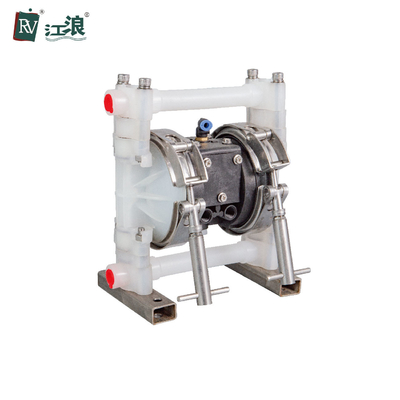

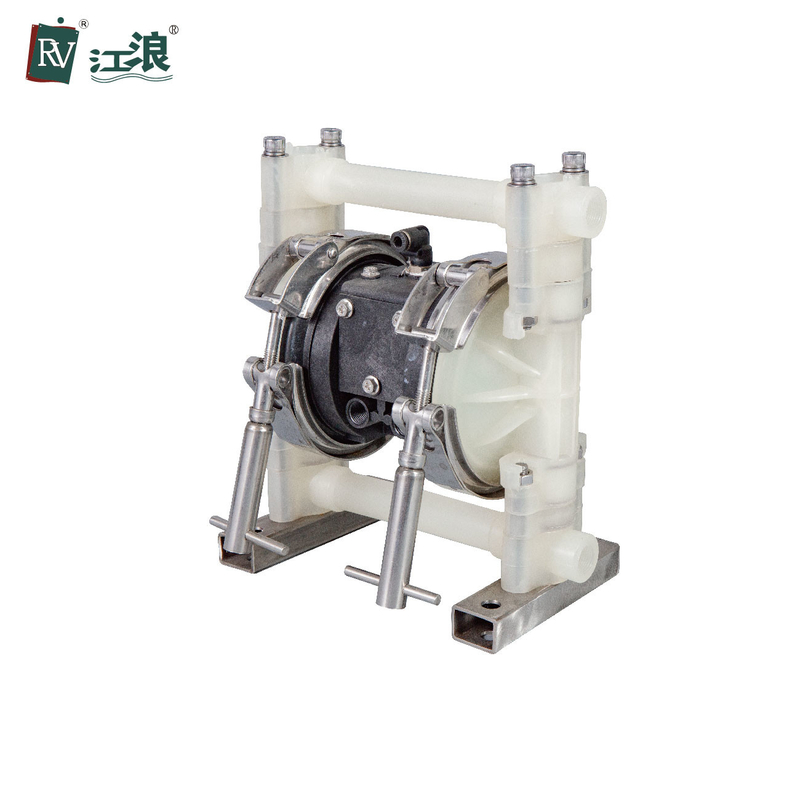

3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body

3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body
3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body 3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body 3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body

Large Image :  3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-35A11-T(S)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body

Description
Pump Housing: PVDF Brand: RV
Valve Seat: PVDF Valve Ball: PTFE
Diaphragm: PTFE Carton Size: 25*20*36cm
Size: 3/8 Inch Model: RVP-35A11-T(S)
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Usage: Chemical, Water
High Light:

3/8'' Polypropylene diaphragm pump

,

Polypropylene diaphragm pump suction lift

,

RV diaphragm suction pump

3/8'' Polypropylene diaphragm pump suction lift High PVDF body



Air Operated Diaphragm Pump Principle:



As a result of air pressure acting on the entire surface of the diaphragm, the diaphragm is in a balanced condition while pumping. This measurably extends diaphragm life over that of mechanically air operated diaphragm pumps.


Because compressed air is limited, the maximum pressure is also safely limited. This air operated diaphragm pump are appropriately selected for on-demand intermittent requirements or continuous duty.
Air operated diaphragm pump are available with a wide choice of construction materials and accessories for any industrial.
We want to become the preferred partner of manufacturer leaders whenever they need the most reliable, fast and globally spread service for the air operated diaphragm pump.



Air Operated Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free



Type RV10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight PP: 3kgs
PVDF: 4kgs
Acetal: 4kgs
Available body material PP. Acetal. PVDF





3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body 0



How Do Air Driven Diaphragm Pump Work



As the name implies, air operated diaphragm pump (AODD) use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air operated diaphragm pumps must be installed and maintained properly to function as designed.





When these diaphragms are pushed away from (or toward) the center section, or air motor, a vacuum is created in the pump’s body, and fluid flows into one of the liquid chambers through an inlet port. When the diaphragms are subsequently pushed in the opposite direction back to their original positions, again via compressed air, the fluid is expelled from the liquid chamber via an outlet port.



Packing & Shipping:



3/8'' Polypropylene Diaphragm Pump Suction Lift High PVDF Body 1





FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
