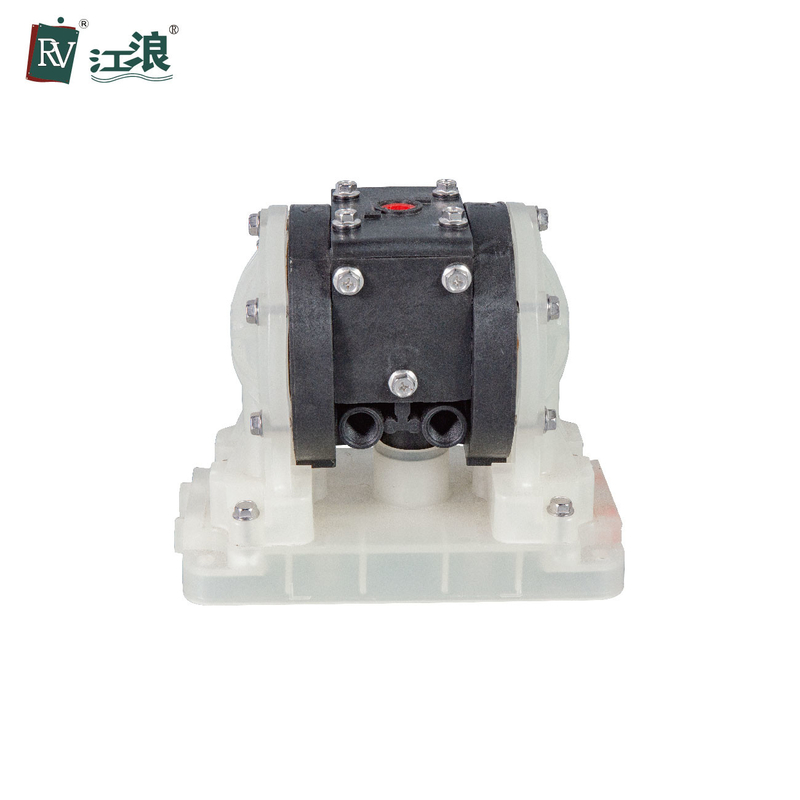

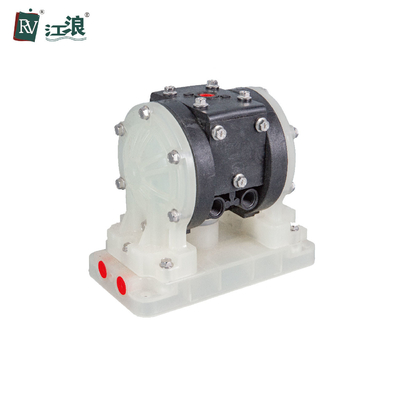

RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate

RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate
RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate

Large Image :  RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate

Product Details:
Place of Origin: China
Brand Name: RV
Model Number: RV-P-K2001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100-1000
Packaging Details: Carton Wooden Case
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union

RV 06 Air Operated Diaphragm Pump 7bar Pp Material 17lpm Flow Rate

Description
Material: Pp Colour: White
Working Pressure: 7bar Flow Rate: 17lpm
Dry Sucking: 2.5-3m Air Inlet Size: 1/4
Air Outlet Size: 1/4 Fluid Inlet Size: 1/4
Fluid Outlet Size: 1/4
High Light:

RV 06 Air Operated Diaphragm Pump

,

7bar Air Operated Diaphragm Pump

,

Pp Air Operated stainless diaphragm pump

RV 06 Air Operated Diaphragm Pump

DESCRIPTION:

Our RV 06 air operated diaphragm pump is the 1/4″ fluid inlet and outlet version of our pumps. With Poly Propylene body and Teflon diaphragms and valve balls, this unit is well suited for small flow applications on light viscosity acids, alkaline and other fluids.
The spring style non return valves provide positive fluid sealing between pulses and provides a superior self priming capability compared to small bore non spring valves.
Body material in Poly Propylene, Acetal and PVDF provides versatile options for your duty needs.



MAIN  FEATURES:

Max Working Pressure  100 psi(0.7mpa,7bar)
Max Flow Rate  4.5gpm (17lpm)
Max Reciprocationg Speed  Dry running 320cpm Wet Running 250cpm
Max Suction Height 8-10ft
Max Permitted Grain 0.06min(1.5mm)
Max Air Consumption  7.0 scfm (3.5l/s)
Air   Inlet Size  1/4 in npt(f) 1/4 in bsp (f)
Air Outlet Size  1/4 in npt(f) 1/4 in bsp (f)
Fluid Inlet Size  1/4 in npt(f) 1/4 in bsp (f)
Fluid Outlet Size  1/4 in npt(f) 1/4 in bsp (f)
Weight  PVDF 1.3 kg  PP 1.1 kg
