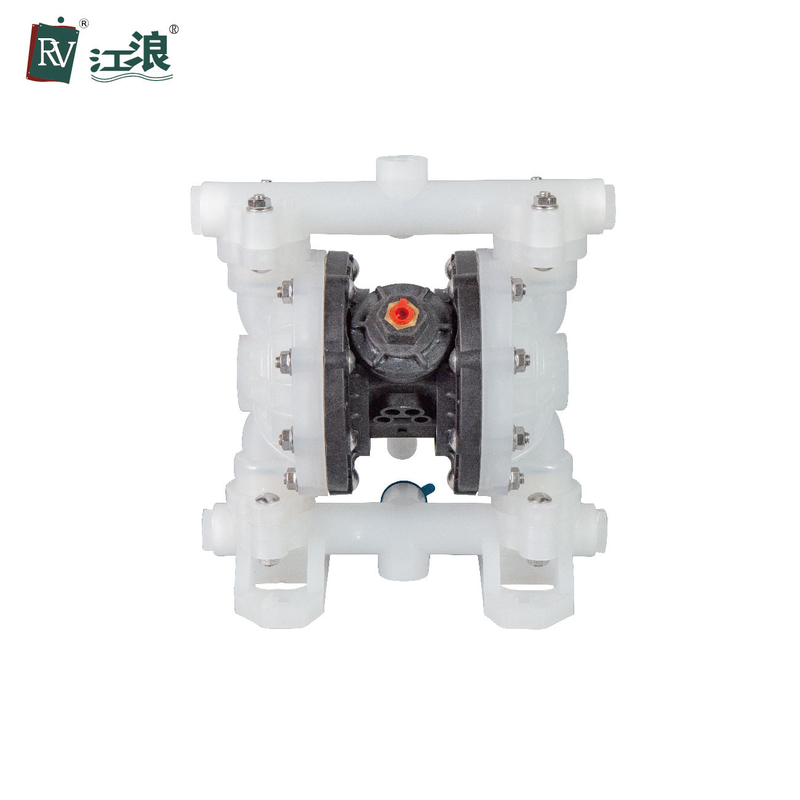

Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm

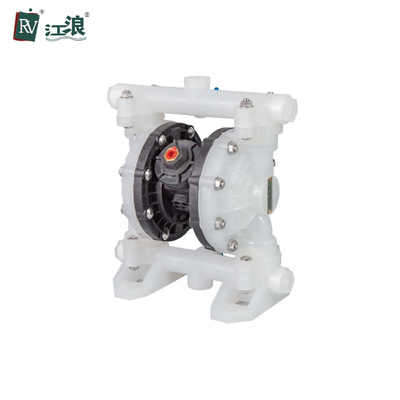

Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm
Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm

Large Image :  Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-52A11-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm

Description
Type: Pneumatic Diaphragm Pump Place Of Origin: Shanghai, China
Pressure: 7 Bar, Low Pressure Power: Pneumatic
OEM: Applicable Displacement Per Cycle (Liters): 0.15
Material Of Diaphragm: Santoprene Weight: 3.0kgs
High Light:

Plastic Waste Water Pneumatic Diaphragm Pump

,

1/2 inch Plastic Diaphragm Pump

,

Pneumatic Diaphragm Pump with PTFE

1/2 inch Plastic Waste Water Pneumatic Diaphragm Pump with PTFE Diaphragm



Plastic Diaphragm Pump Application

RV waste water diaphragm pumps are excellent drum pumps. For the emptying of barrels, containers, canisters and drums of all kind of chemicals such as acids or lye, air operated diaphragm pump is a very good alternative to a conventional rod drum pump. Air operted diaphragm pump can pump corrosive, viscous and abrasive fluids with ease.


Plastic Diaphragm Pump Features

1. PP pump in PP-H material, wearing resistance, chemical resistance much better than PP.

2. The pump with PP center block, be full plastic pump, excellent chemical resistance.

3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 3/4 in.
Fluid Outlet Size 3/4 in.
Net Weight 3.0kgs






Plastic Waste Water Pneumatic Diaphragm Pump 1/2 Inch With PTFE Diaphragm 0




How Do Plastic Diaphragm Pump Work



As the name implies, pneumatic diaphragm pump (AODD) use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air operated diaphragm pumps must be installed and maintained properly to function as designed.





When these diaphragms are pushed away from (or toward) the center section, or air motor, a vacuum is created in the pump’s body, and fluid flows into one of the liquid chambers through an inlet port. When the diaphragms are subsequently pushed in the opposite direction back to their original positions, again via compressed air, the fluid is expelled from the liquid chamber via an outlet port.




FAQ



1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air operated diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
