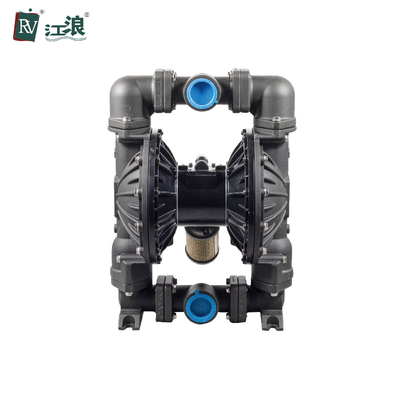

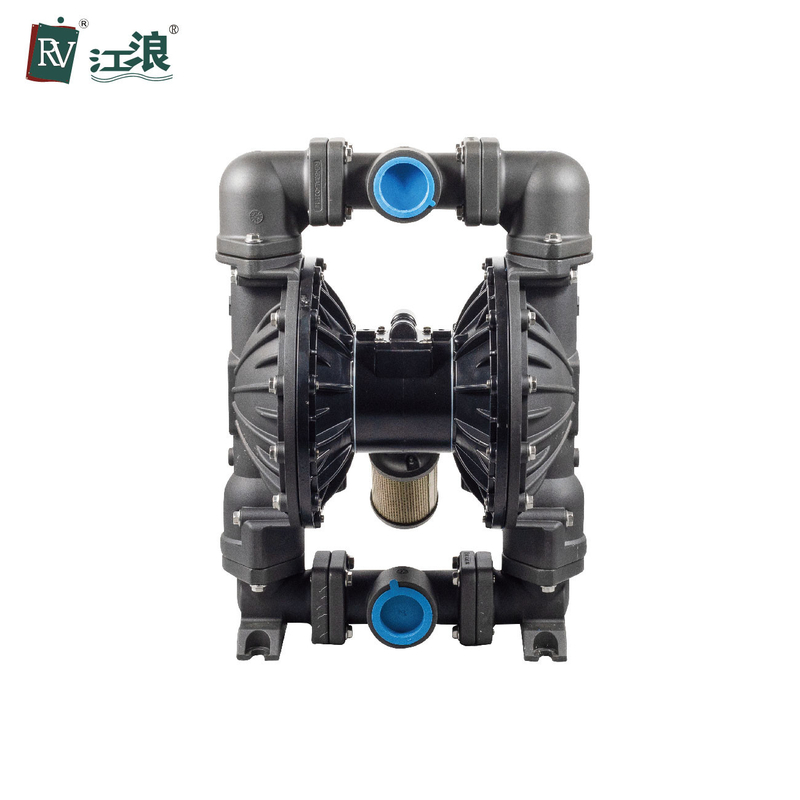

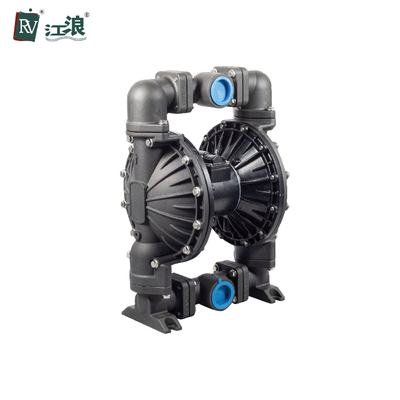

Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch

Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch
Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch

Large Image :  Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-F3311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch

Description
Materal: Aluminum Alloy Certification: CE ISO
Place Of Origin: Shanghai Liquid: Solvent, Paint And Coating
Application: Painting And Coating Industry Carton Size: 520×350×650mm
Size: 2 Inch Noise Level: Lower Than 75 Db
Theory: Air Diaphragm Pump Diaphragm: PTFE
High Light:

Double Diaphragm Pneumatic Pump 2 Inch

,

Water Transfer Pneumatic Diaphragm Pump

,

Aluminum Alloy Pneumatic Diaphragm Pump

2 inch Aluminum Alloy Oil Water Ink Lotion  Acid Transfer Pneumatic Diaphragm Pump



HIGH LEVEL TECHNICAL SUPPORT & AIR DIAPHRAGM PUMP SERVICING

  • We provide guaranteed first-class technical support services to address all your air diaphragm pump needs. Our clients can trust in our extensive capacity to offer custom solutions with consistent reliability and high performance.
  • We implement comprehensive servicing that is tailor-made to match our client’s needs.
  • We supply a vast range of spare parts to maximise the user’s product experience and convenience.
Max Working Pressure 120 psi ( 0.84 Mpa, 8.4 bar )
Max Flow Rate 150 gpm (570 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.24 in (6mm)
Max Air Consumption 140 scfm ( 70 L/s )
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 2 in.
Fluid Outlet Size 2 in





Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch 0

Model Pipe Size Max. Air Pressure Wetted Parts Material Valve Seat

Ball Material



Connection

RVP-F3311-T 2” inch 8.4 bar Aluminum Stainless Steel Santoprene

NPT THREAD









Packing & Shipping:



Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch 1Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch 2
Our service


Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.

Company Introduction:



Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.

Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.



Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.

Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.




Oil Water Lotion Acid Transfer Pneumatic Diaphragm Pump Aluminum Alloy 2 Inch 3



QUESTIONS:


Q1. Can I have a sample order for air diaphragm pump?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.



Q3. Do you have any MOQ limit for air diaphragm pump order?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for air diaphragm pump?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the air diaphragm pumps?

A: Yes, we offer 5 years warranty to our air diaphragm pumps.
