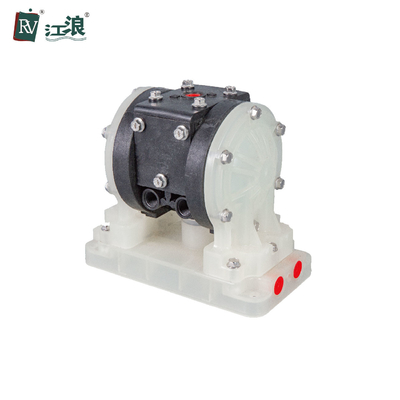

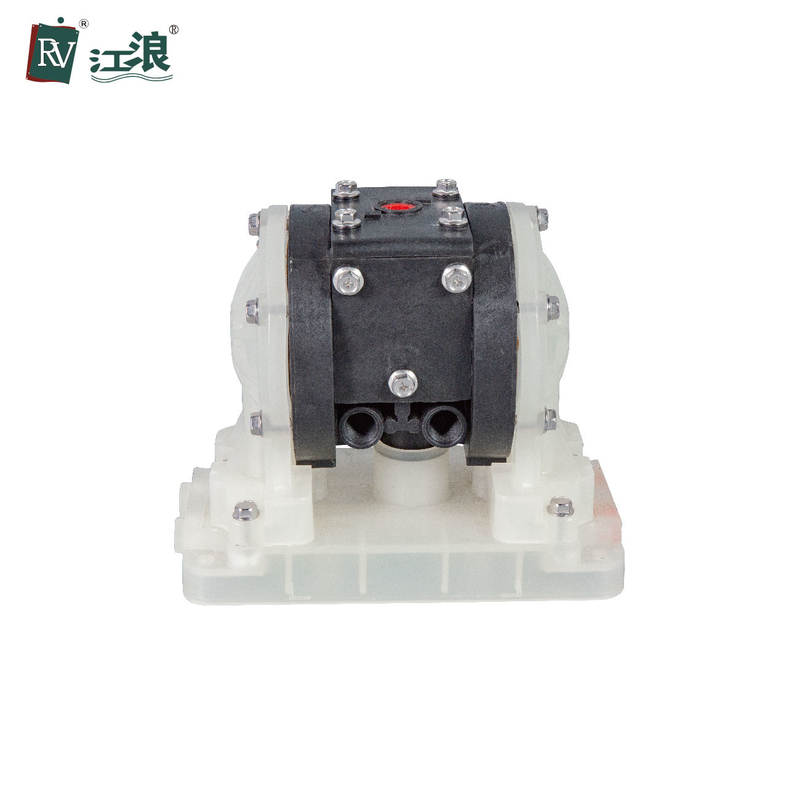

Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer

Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer
Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer

Large Image :  Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-15001-0
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer

Description
Materal: PVDF Color: White
Flow Rate: 19L/M Weight: 1.5kgs
Carton Size: 21*16*20cm Size: 1/4 Inch
Model: RVP-15001-0 Certification: CE ATEX ISO9001
Feature: Eco-Friendly
High Light:

Mini PVDF Pneumatic Diaphragm Pump

,

Strong Alkali Transfer Pneumatic Diaphragm Pump

,

19l/M Pneumatic Driven Pump

Mini PVDF Pneumatic Diaphragm Pump For Strong Acid and Alkali Transfer



Pneumatic diaphragm pumps are positive displacement pumps that transfer liquids in wet commercial pumping applications. They run on compressed air and move slurries, solvents, and other high-viscosity liquids.



Pneumatic Diaphragm Pump Specification



Brand
RV
Material
PVDF
Color
White
Function
Fluid Handling, Pump Industrial Applications
Feature
1/4 inch end-porting, Spring check valves for superior priming in any mounting configuration
Usage
Wastewater chemical supply, Laundry chemicals and detergents handled





Max Working Pressure 100 psi(0.7Mpa, 7bar)
Max Flow Rate 5.0 gpm(19lpm)
Max Reciprocating Speed 320 cpm
Max Suction Height (Dry Sucking) 3m
Max Permitted Grain 0.06 in(1.5mm)
Max Air Consumption 7.0scfm(3.5L/s)
Air Inlet Size 1/4 in.npt(f)
Air Outlet Size 1/4 in.npt(f)
Fluid Inlet Size 1/4 in.
Fluid Outlet Size 1/4 in.
Net Weight PP pump 1.1kg; PVDF pump 1.5kg



Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer 0




Packing & Shipping:



Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer 1Mini PVDF Pneumatic Diaphragm Pump For Strong Acid And Alkali Transfer 2
Our service


* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.


FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.

4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
