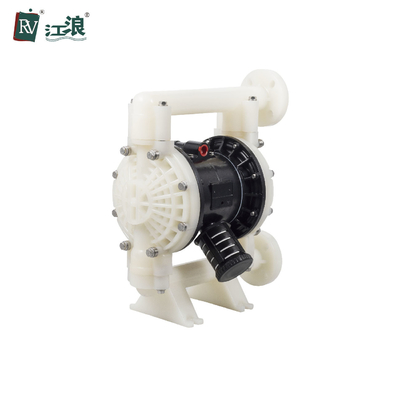

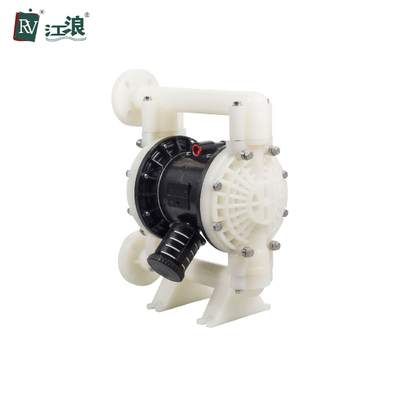

25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port

25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port
25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port 25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port

Large Image :  25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-75A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port

Description
Product Name: Air Operated Diaphragm Pump Liquid Port Size: 1 Inch
Liquid Connection Types:: FNPT, FBSP Standard Suction Port:: Side
Standard Discharge Port:: Side Air Inlet Connection Size: 1/2 In. FNPT
Air Exhaust Connection Size:: 3/4 In. FNPT Valve Ball: PTFE
Body Material: PVDF
High Light:

40 GPM Air Operated Diaphragm Pump

,

25mm PVDF Air Driven Diaphragm Pump

,

Fluid Port Air Driven Diaphragm Pump

25mm PVDF Air Operated Diaphragm Pump Air Consumption 150 Lpm 40 GPM DN25 Fluid Port

Air-operated diaphragm pumps are positive displacement pumps that transfer liquids in wet commercial pumping applications. They run on compressed air and move slurries, solvents, and other high-viscosity liquids.

RV25 Series air diaphragm pump provide a maximum flow rate of 40 gallons per minute. Pumps are available in aluminum, stainless steel (304/ 316), Kynar (PVDF), groundable acetal, and polypropylene construction.

AIR DIAPHRAGM PUMPS: HIGH PERFORMANCE. LONG LIFE.
1. central shaft is of integrave structure, ensure the concentricity and make the action more fluent.
2. increase the filter unit, ensure the normal operation of air motor.
3. the material of air-guided plate is ceramic and stainless steel to suitable for different workplace
4. the piston end adopts no screw structure and easy to install
5. external air motor, easy to maintain
6. engineering plastic is adopted, saving resources
7. compared with other diaphragm pumps, moving parts are less
8 one reversing valve suitable for pumps of multiple specifications



Technicial
Parameter
Unit Date
Maximum air inlet pressure Mpa 0.84
Maximum flow rate liter per minute 150 lpm
Maximum lift Meter 70 m
Maximum outlet pressure Mpa 0.84
Maximum particle size mm 4
weight kg 15.7
Noise level db < 70



25mm PVDF Air Operated Diaphragm Pump 150 Lpm 40 GPM DN25 Fluid Port 0




Maximum Applied Temperature Limits (Diaphragm/ Ball/ Seal Material)


Acetal ....................................................................40° - 150 ° F (4.4 - 65.5 °C)
Santoprene ........................................................... -40° - 225 ° F (-40 ° - 107.2 °C)
Nitrile ................................................................... 10° -180 ° F ( -12° -82 °C)
.................................................................... -40° -350 ° F ( -40° - 176.6 °C)
Hytrel................................................................... -20° -150° F (-12°- 93 °C)
Kynar...................................................................10° - 200 °F (-28.9° - 65.5 °C)
Polypropylene .....................................................32° - 175 ° F (0-79.4 °C)



FAQ


Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.


Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our air diaphragm pump.
