Product Details:
|
| Materal: | SS304 SS316 | Brand: | RV |
|---|---|---|---|
| Color: | Sliver | Flow Rate: | 570lpm |
| Weight: | 47kgs | Carton Size: | 52*35*65cm |
| Size: | 2 Inch | Certification: | CE ATEX ISO9001 |
| Feature: | Eco-Friendly | ||
| High Light: | SS304 Air Operated Diaphragm Paint Pump,2inch Air Operated Diaphragm Pump,Pneumatic Diaphragm Paint Pump |
||

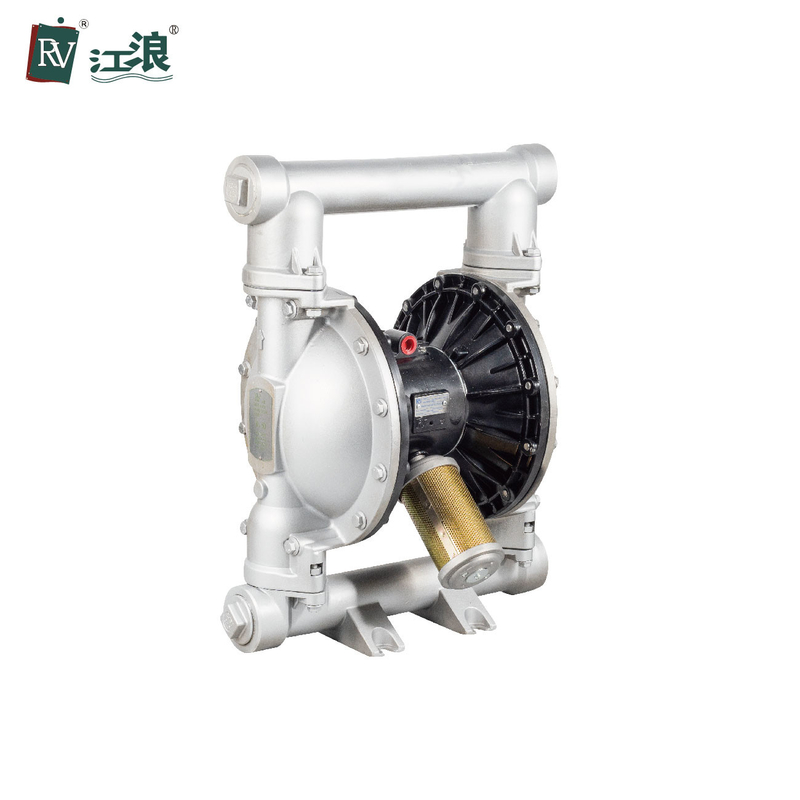

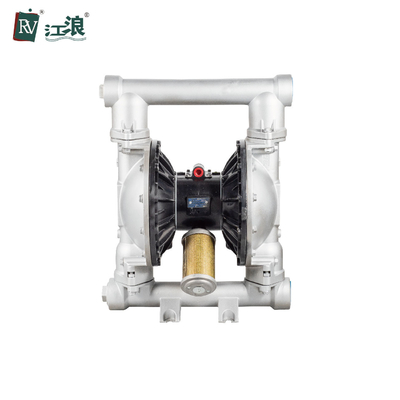

304 Stainless Steel Air Operated Diaphragm Paint Pump Low Pressure Standard 2inch
Air-operated diaphragm pumps are positive displacement pumps that transfer liquids in wet commercial pumping applications. They run on compressed air and move slurries, solvents, and other high-viscosity liquids.
Diaphragm Pump Information:
- Name: Diaphragm Paint Pump
- Model Type: RVA-F4311-T
- Wetted Parts: SS304
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene
-Connection: Threaded
Diaphragm Pump HS CODE : 8413501090
Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm(570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 6.3mm |
| Max Air Consumption | 140 scfm(70L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 1/2 in.npt(f) |
| Fluid Inlet Size | 2 in.npt(f) |
| Fluid Outlet Size | 2 in.npt(f) |
| Weight | SST pump 47kgs |
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are diaphragm pumps and control valves, including: Air Operated Diaphragm Paint Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Paint Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Paint Pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
