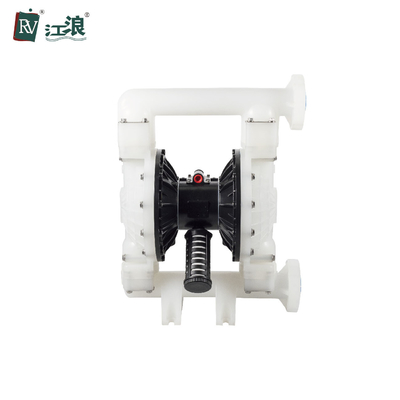

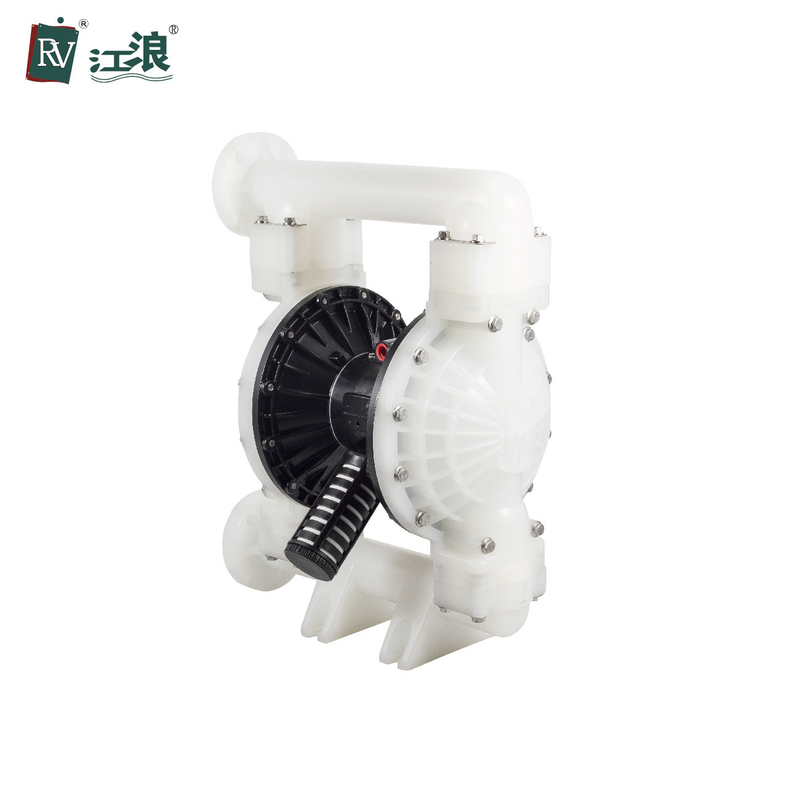

PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry

PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry
PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry

Large Image :  PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-F2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry

Description
Product Name: Air Operated Diaphragm Pump Horese Power: 8.4 Bar
Pressure: Circulating Pump Type: 2 Inch
Maximum Reciprocating Speed: 145 Cpm Certificateion: ISO 9001 , CE , ATex
Ball: PTFE Membrane: PTFE
Ball Seat: PVDF
High Light:

Chemical Solvent Industry PTFE Diaphragm Pump

,

2 Inch Air Powered Diaphragm Pump

,

PTFE Air Diaphragm Pump 8.4 bar

2 Inch Plastic Air Operated Diaphragm Pump For Chemical Solvent Industry With PTFE Diaphragm



Air operated diaphragm pumps are positive displacement pumps that transfer liquids in wet commercial pumping applications. They run on compressed air and move slurries, solvents, and other high-viscosity liquids.

Air Operated Double Diaphragm Pumps allow you to pump thick, solids-laden liquids and slurries in applications such as mining and dewatering. Units are lightweight, can be easily transported where needed, and equipped with pneumatic operation to reduce exhaust and spark hazards. Models with an unbalanced air valve and independent pilot rod are designed to help prevent stalling, sticking, centering, and freezing. Self-priming pumps are capable of running dry.



Air Operated Diaphragm Pump Applications

  • Dewatering through filtration (filter press)
  • Chemical dosing to neutralize pH levels and treat sludge
  • Wastewater sump transfer and sample
  • Municipal water treatment plants, wastewater treatment plants and utility pumps
  • Belt press feed
  • Sewage treatment process
  • Potable water systems



ADVANTAGES OF AODD PUMPS



RV air driven waste water diaphragm pumps provide stall-free, ice-free operation. The secret is a great design that comes equipped with unique air valves that offer energy savings and greater flow rates when compared to other air operated diaphragm pump technologies.

Additionally, for increased reliability, the RV air operated diaphragm pump has been designed with increased suction lifts and fewer moving parts.



PARAMETER



Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Driven Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.24 in(6mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End PP
Fluid Inlet Size 2 in.
Fluid Outlet Size 2 in.
Carton Size 770×370×570mm


PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry 0

Packing & Shipping:

PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry 1PTFE Plastic Air Operated Diaphragm Pump 2 Inch For Chemical Solvent Industry 2



Performance Introduction:



RV waste water diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.

1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.

2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.

3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).

4. Temperature range of working environment: 5~65℃


FAQ


Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.


Q3. Do you have any MOQ limit for air operated diaphragm order?
A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
