Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

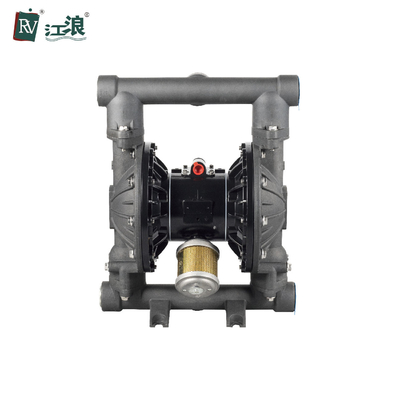

Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch

Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch
Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch

Large Image :  Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-B3311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch

Description
Materal: Aluminum Brand: RV
Color: Black Flow Rate: 340L/M
Usage: Air Diaphragm Pump Carton Size: 48*29*53cm
DN (mm): 40 Mm Model: RVA-B3311-F
Max. Pressure: 8.4 Bar Feature: Eco-Friendly
High Light:

Aluminum Alloy Double Pneumatic Spray Pump

,

Diaphragm Pneumatic Spray Pump

,

Paint Industry Double Diaphragm Pump 1/2 Inch

1-1/2 Inch Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry



What is air operated diaphragm pump?



The air operated diaphragm pump uses compressed air as the power sourse. It is a positive displacement pump that changes the volume caused the  reciprocating deformation of the diaphragm. The Flow rate is 1-60m3/h.And the maximum head is 70m.



Air Operated Diaphragm Pump Installation:



1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.

2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.

3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.

4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.



Air Operated Diaphragm Pump Details:



A:Increased munber of ports for installation flexibility

B:Modular air valve for stall-free ,low pulsation operation ,providing smooth and rapid changeover

C:Up to 5x longer diaphragm life for less maintenance and downtime

D:Four bolt joint design provides even sealing pressure for optimal performance



Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.2 in(5mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Aluminum
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Installation 480×290×530mm





Display

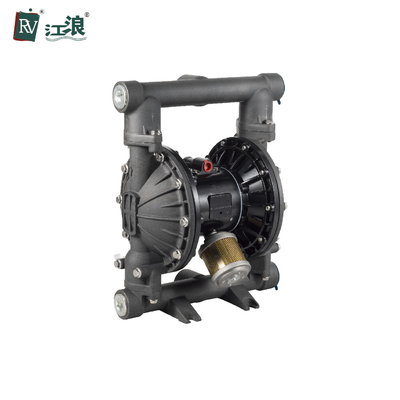

Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch 0




Packing & Shipping:



Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch 1Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch 2
Our service


Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.

Working Principle:

The RV series air diaphragm pump are based on the following working principle: two flexible diaphragms are fitted into two symmetrical chambers of the air diaphragm pump severally and connected as a whole part by a link rod. The compressed air enters the central body through the in-suck terminal and impels the diaphragms in two chambers to drive consequently the link rod into move synchronously. At the same time, the air in the other chamber is expelled from the back side of the diaphragm. When piston reaches the end of the stroke, the air-distributing valve guide compressed air into the other chamber automati



Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".



Aluminum Alloy Double Pneumatic Spray Pump Diaphragm For Paint Industry 1 - 1/2 Inch 3

AIR DIAPHRAGM PUMP SERVICES

· We provide guaranteed first-class technical support services to address all your pumping needs. Our clients can trust in our extensive capacity to offer custom solutions with consistent reliability and high performance.

· We implement comprehensive servicing that is tailor-made to match our client’s needs for air diaphragm pump.

· We supply a vast range of spare parts to maximise the user’s air diaphragm pump experience and convenience.
