FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

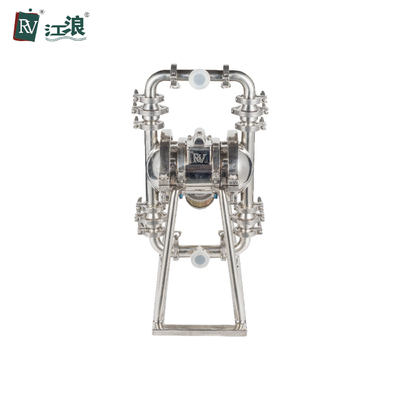

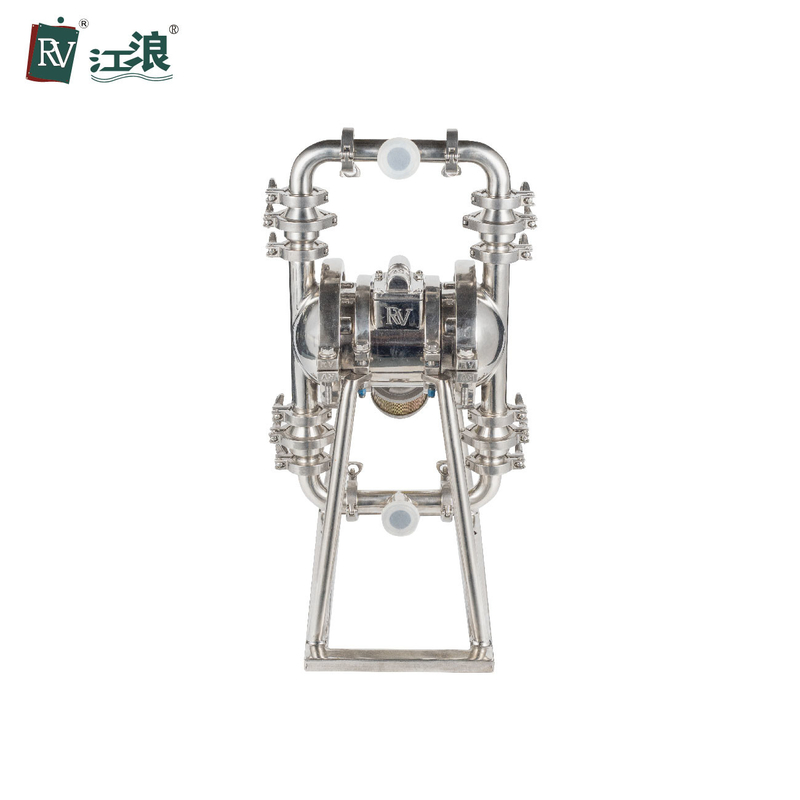

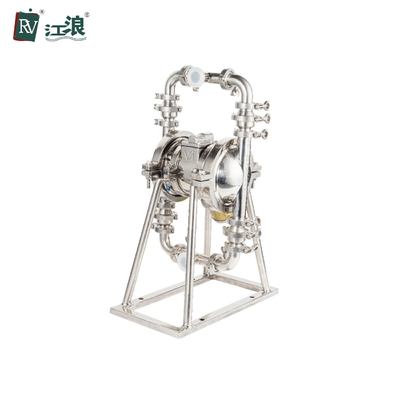

FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade

FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade
FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade

Large Image :  FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RV-FDA-74311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade

Description
Product: FDA Air Operated Diaphragm Pump Max. Flow Rate: 32 Gpm (120 LPM)
Type: Food Grade Max. Pressure: 72 Psi
Compatibility: CE Compliant Control Box: Optional
Diaphragm: PTFE Backup Diaphragm: Santoprene
High Light:

FDA Sanitary Air Operated Diaphragm Pump

,

Ethanol Food Grade Air Diaphragm Pump

,

1 Inch Air Powered Diaphragm Pump

1 Inch FDA Approved Sanitary Air Operated Diaphragm Pump For Ethanol Food Grade



KEY FEATURES



FDA compliant air operated diaphragm pumps are designed for Food, Pharmaceutical & Cosmetic Industries.
These series of air operated diaphragm pumps include: 316 Stainless Steel wetted components, and Sanitary Clamp Fittings.
Passivate is when you alter the surface layer or coat the surface with a thin inert layer (for protection and to avoid contamination).

Available in FDA compliant elastomers: Hytrel, EPDM and PTFE.



  • self-priming, lube-free air valve
  • excellent for shear sensitive liquids
  • intrinsically safe and portable
  • non mechanical seals
  • ability to run dry without pump damage





Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Operated Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.2 in(5mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Stainless Steel 304
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Connection Thread




FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade 0



The RV Hygienic Air Operated Diaphragm Pump was developed for hygienic grades and is used primarily in the food and pharmaceutical industries. This FDA air operated diaphragm pump is ideal for applications where the surface of the device is required to achieve an electro polished 32Ra. The clamp is designed with easy removal. The FDA air operated diaphragm pump body is made of food grade stainless steel, the diaphragm material is food grade PTFE or EPDM rubber, and the fluid contact area is in compliance with FDA standards.



Main Applications:

  • Winery
  • Brewery
  • Pharmaceutical
  • Bulk Transfer
  • Food Ingredients / Packaging
  • Batching
  • Filter Press, Utility
  • Tanker/Railcar Unloading
  • Product Transfer
  • Cosmetics
  • Personal Hygiene
