2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm

2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm
2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm
2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm 2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm

Large Image :  2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RV-FDA-F4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm

Description
Product: FDA Air Operated Diaphragm Pump Port Sizes: 3 Sizes Available From 1”to 3”ports
Port Type: Tri - Clamp Air Pressure: From 20 To 120 PSI
Compatibility: CE Compliant Control Box: Optional
Diaphragm: PTFE Backup Diaphragm: Santoprene
High Light:

FDA Sanitary Pneumatic Diaphragm Pump

,

50mm Double Diaphragm Air Pump

,

Food Grade PTFE Diaphragm Pump

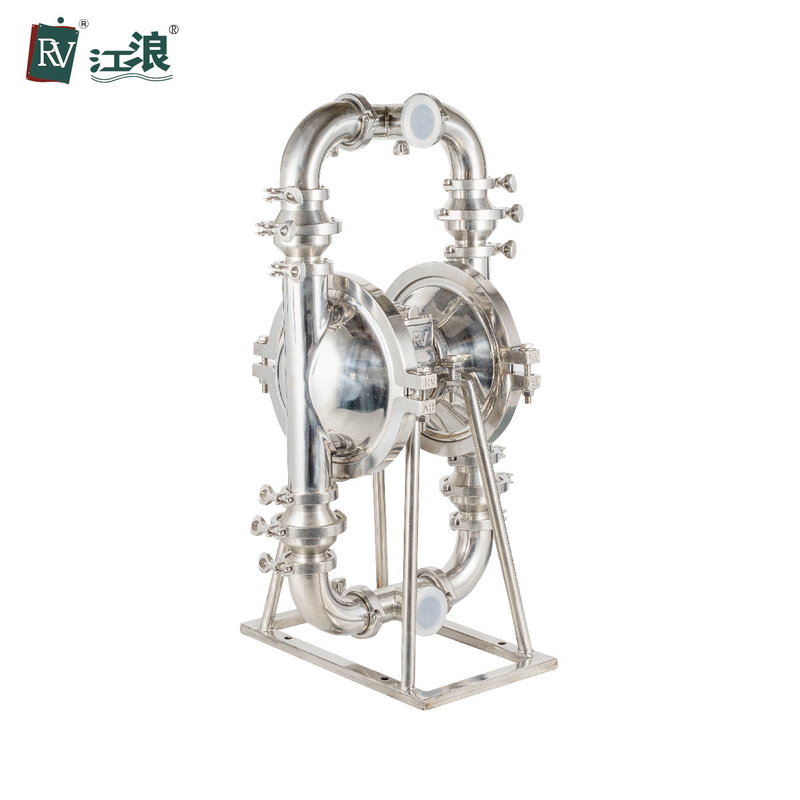

2 inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm



KEY FEATURES

The diaphragm pumps from the FDA series are designed to efficiently and reliably pump foods, beverages, cosmetics and pharmaceutical products. The options installed in the factory enable you to adapt your RV FDA pump to your specific application requirements to thereby achieve a low-cost, smooth integration checked by the factory. The construction for rapid dismantling enables rapid inspection and maintenance - and therefore speedy recommissioning.



Advantages:

  • design for better flow rates and greater reliability
  • The compression clamp and band construction enables rapid cleaning, service and maintenance
  • Optimised flow rate resulting from improved construction for better overall performance and less material shear.
  • FDA compatibility since the pump is made from electropolished 316L stainless steel





Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Operated Diaphragm Pump
Power Driven Compressed air
Max. Working Pressure 0.5 Mpa
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Stainless Steel 304
Fluid Inlet Size 2 in.
Fluid Outlet Size2  in.
Connection Thread




2 Inch FDA Sanitary Air Operated Diaphragm Pump Food Grade 50mm 0



Introduction of RV FDA Air Operated Diaphragm Pump Performance



1. No need to irrigate water, the suction height is up to 5m, the lift is up to 50m, and the outlet pressure is ≤0.5MPa.

2. The flow is spacious, the pass performance is good, and the maximum particle diameter is 6mm, which makes the pump wear little.

3. The head and flow rate can be adjusted by the pressure of the gas source (the pressure of the gas source is between 0.1 and 0.5 MPa).

4. Working environment temperature range: 5 ~ 65 ° C.

5. The FDA air operated diaphragm pump has no rotating parts and no shaft seal. The diaphragm separates the pumped medium from the moving parts of the pump. The delivered medium will not leak to the outsid

6. No need to use electricity, safe and reliable in flammable and explosive places.

7. Easy to use, reliable in operation, easy to open and close, only need to open and close the gas valve, even if there is no medium running or sudden stop due to unexpected circumstances, the pump will not be damaged.

8. Simple structure and less wearing parts. The FDA air operated diaphragm pump has a simple structure and is easy to install and maintain.
