1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

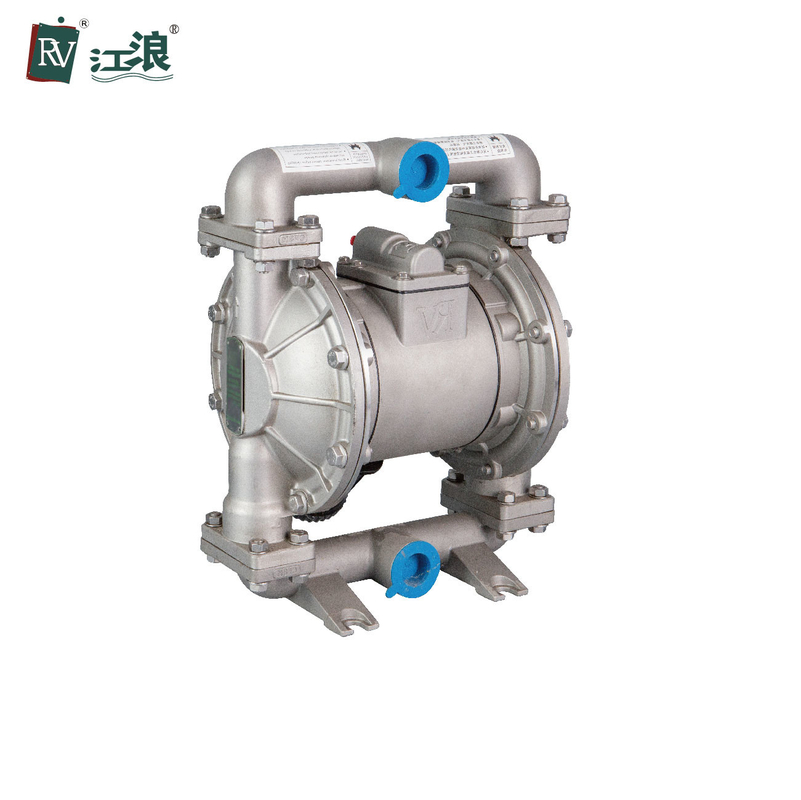

1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel

1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel
1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel

Large Image :  1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVS-74311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel

Description
Materal: Stainless Steel 304 Or 316 Liquid Inlet & Outlet: 1”BSP NPT
Air Inlet: 1/2” NPT BSP Air Outlet: 3/4" NPT BSP
Lowest Pressure: 7.25 Psi Max Pressure: 120 Psi
Size: 1 Inch Model: RVS-74311-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Center Body: SS304/SS316
High Light:

Pneumatic Positive Displacement Diaphragm Pump

,

316 Stainless Steel Air Diaphragm Pump

,

1" Positive Displacement Diaphragm Pump

1”Air Operated Positive Displacement Diaphragm Pump 304/316 Stainless Steel



Diaphragm Pump Advantages:


This air operated diaphragm pump is designed for industrial and chemical application, with very good property of anti-corrosion and abrasion resistance.
The wet body and center section are both stainless steel. We use micro diecast technology instead of ordinary casting to improve the density and mechanical strength of the material.
The wet body and center section are both stainless steel. We use micro diecast technology instead of ordinary casting to improve the density and mechanical strength of the material.
The fluid cavity adopts a simpler trilateral structure. By this design, the internal of the cavity is more round and smooth without blind angles, which promote the smooth flow of the liquid.
Considering the alternate output of diaphragm pump, we used central port design to better balance the delivery of the liquid.
Concerning valve seat and O-rings, there are three O-ring grooves on each seat, two big sizes and one small size.
The normal configuration is two big size O-rings. But when dealing with solvents with strong permeability, one big size and one small size will be used to achieve better sealing.

For extension, this air operated diaphragm diaphragm pump can be equipped with a detecting device.
Its real-time working condition can be monitored on the mobile terminal by adding data, single chip and cloud technology.


Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 40 gpm(150 lpm)
Max Reciprocating Speed 276 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 4mm
Max Air Consumption 45 scfm(22.5L/s)
Air Inlet Size 1/2 in.npt(f)4
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 in.npt(f)
Fluid Outlet Size 1 in.npt(f)
Weight SST pump 21kg



1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel 0
1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel 1
Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The air operated diaphragm pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


1" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel 21" Air Operated Positive Displacement Diaphragm Pump 304 / 316 Stainless Steel 3



FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
