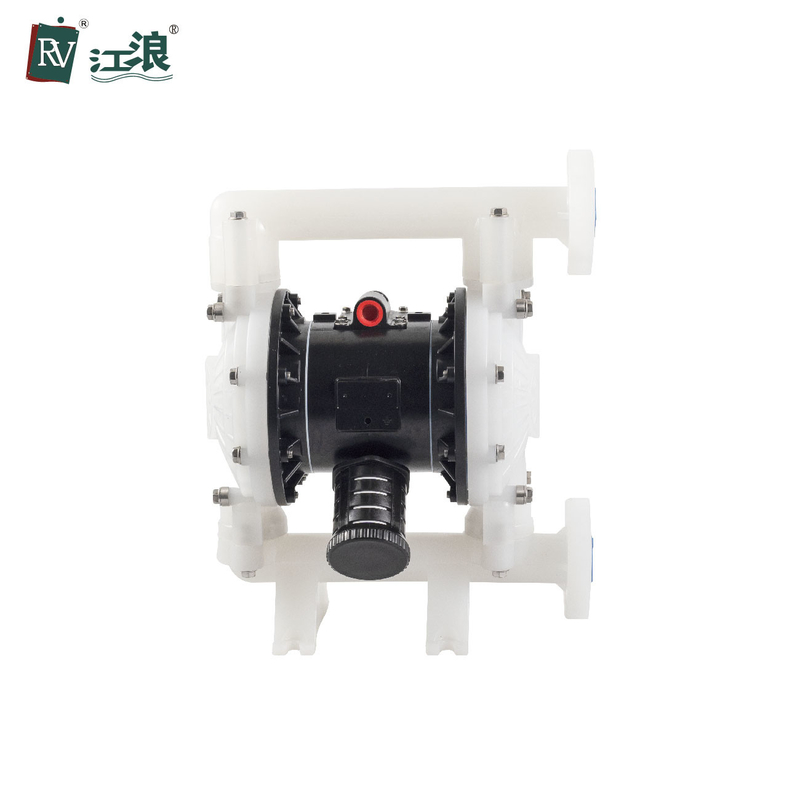

Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM

Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM
Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM

Large Image :  Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA/ PVP-72911-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM

Description
Product Name: Air Diaphragm Pump Discharge Port: 25 Mm
Capacity: 40GPM / 150LPM Max. Working Pressure: 120psi ( 0.84 Mpa , 8.4bar)
Maximum Suction Height: 5 M Max. Air Consumption: 22.5 L/s
Diaphragm: PTFE Valve Ball: PTFE
High Light:

Water Transfer Air Operated Diaphragm Pump

,

1 Inch Diaphragm Paint Pump

,

25mm Air Diaphragm Pump

1 Inch Air Operated Diaphragm Pump For Water Transfer



1" FLUID PORT



RV25 Series air diaphragm pump provide a maximum flow rate of 40 gallons per minute. Pumps are available in aluminum, stainless steel (304/ 316), Kynar (PVDF), groundable acetal, and polypropylene construction.



AIR DIAPHRAGM PUMPS: HIGH PERFORMANCE. LONG LIFE.

All RV air diaphragm pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.



Outside-Accessible Air Valve

Inspection or maintenance of every RV air valve may be performed without removing the pump from service. Outside accessible, making it easy to fix / inspect.



Unified Air Valve Concept

Common-size air valve assemblies reduce parts confusion and inventory.



INTAKE & DISCHARGE CONNECTIONS



Polypropylene 1" Female NPT or 1" ANSI Flange B16.5 #150
Kynar (PVDF) 1" Female NPT or 1" ANSI Flange B16.5 #150
Aluminum 1” Female NPT
Stainless Steel 1” Female NPT
Cast Iron 1” Female NPT
Air Inlet 1/2 in.npt(f)
Air Exhaust 3/4 in.npt(f)
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Net Weight PP pump 10.5kg





Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM 0






Packing & Shipping:



Water Transfer Air Operated PTFE Diaphragm Pump 1 Inch 40GPM / 150LPM 1


Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Jianglang mainly provides air diaphragm pump services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Jianglang has established long term business relationship with famous enterprise. RV air diaphragm pump has been exported to more than 70 countries and regions.


FAQ



Q1. Can I have a sample order for air diaphragm pump?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.



Q3. Do you have any MOQ limit for air diaphragm order?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for air diaphragm pump?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our air diaphragm pump.
