Product Details:
|
| Pump Housing: | PVDF | Brand: | RV |
|---|---|---|---|
| Valve Seat: | PVDF | Valve Ball: | PTFE |
| Diaphragm: | PTFE | Carton Size: | 25*20*36cm |
| Size: | 3/8 Inch | Model: | RVP-35A11-T(S) |
| Certification: | CE ATEX ISO9001 | Feature: | Eco-Friendly |
| Usage: | Chemical, Water | ||
| High Light: | Polypropylene Pneumatic Transfer Pump,3/8'' Air Powered Diaphragm Pump,PVDF Diaphragm Pneumatic Driven Pump |
||

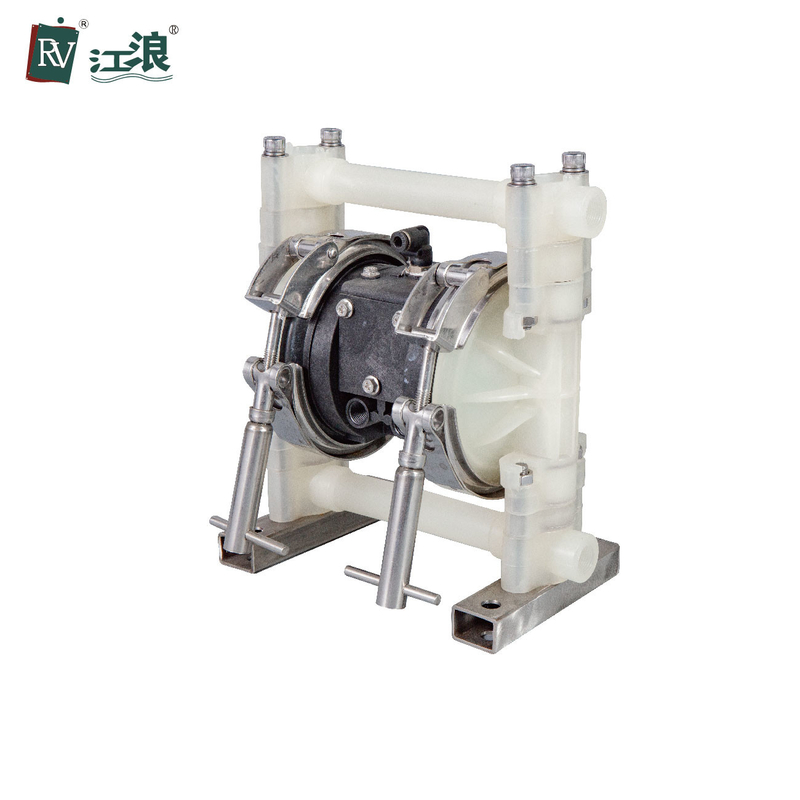

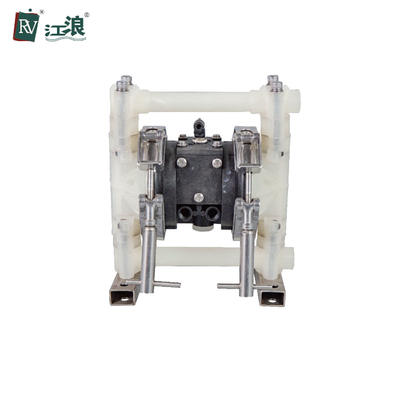

3/8'' Polypropylene Pneumatic Diaphragm Pump Suction Lift High PVDF Body
Pneumatic Diaphragm Pump Principle:
As a result of air pressure acting on the entire surface of the diaphragm, the diaphragm is in a balanced condition while pumping. This measurably extends diaphragm life over that of mechanically air operated diaphragm pumps.
Because compressed air is limited, the maximum pressure is also safely limited. This air operated diaphragm pump are appropriately selected for on-demand intermittent requirements or continuous duty.
Air operated diaphragm pump are available with a wide choice of construction materials and accessories for any industrial.
We want to become the preferred partner of manufacturer leaders whenever they need the most reliable, fast and globally spread service for the air operated diaphragm pump.
Pneumatic Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free
| Type | RV10 |
| Inlet size | 3/8" |
| Outlet size | 3/8" |
| Air inlet size | 1/4" |
| Suction lift (dry) | 3m |
| Max. working pressure | 7bar ; 0.7MPa |
| Max. flow rate | 26.5 l/min(1.56m³/h) |
| Max. delivery lift | 70m |
| Max. grain diameter | 1.6mm |
| Weight | PP: 3kgs PVDF: 4kgs Acetal: 4kgs |
| Available body material | PP. Acetal. PVDF |
How Do Pneumatic Diaphragm Pump Work
As the name implies, air operated diaphragm pump (AODD) use compressed air to operate, rather than an electrical motor. This unique operating characteristic allows them to be used in situations where an electrically powered pump would not be advisable (e.g., when pumping flammable liquids). By their very nature, though, these types of air operated diaphragm pumps must be installed and maintained properly to function as designed.
When these diaphragms are pushed away from (or toward) the center section, or air motor, a vacuum is created in the pump’s body, and fluid flows into one of the liquid chambers through an inlet port. When the diaphragms are subsequently pushed in the opposite direction back to their original positions, again via compressed air, the fluid is expelled from the liquid chamber via an outlet port.
Packing & Shipping:
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
