Product Details:
|
Type: | Plastic Diaphragm Pump | Place Of Origin: | Shanghai, China |
---|---|---|---|
Pressure: | 7 Bar, Low Pressure | Power: | Pneumatic |
OEM: | Applicable | Displacement Per Cycle (Liters): | 0.15 |
Material Of Diaphragm: | PTFE | Weight: | 2.8kg |
Highlight: | 1/2 Inch Pneumatic Plastic Diaphragm Pump,Food Grade Air Powered Diaphragm Pump,Low Pressure Plastic Diaphragm Pump |

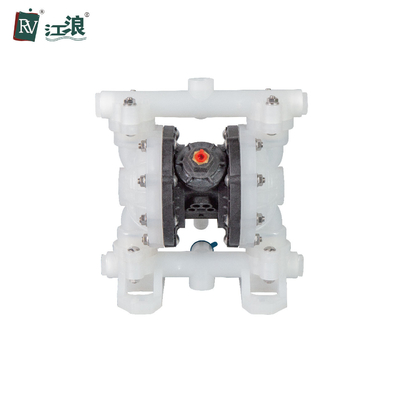

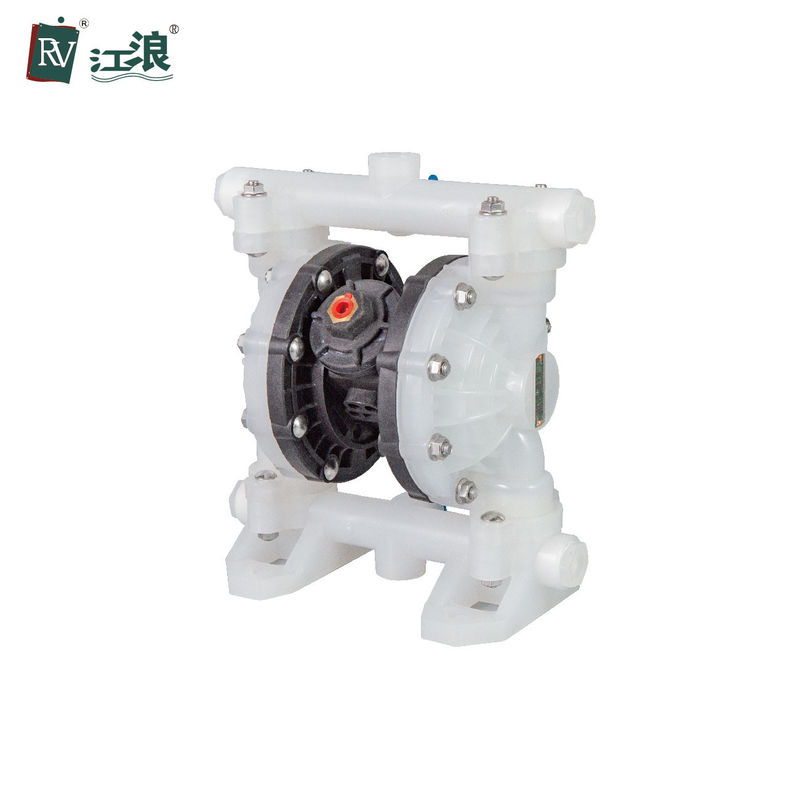

1/2 inch Pneumatic Plastic Diaphragm Pump Food Grade Low Pressure
The Typical Applications of Pneumatic Diaphragm Pumps:
Mining (Can operate in classified/hazardous areas) |
|
Coatings (Can pump low to very viscous solutions, and capable of low shear / gentle fluid transfer) |
|
Ceramics (Can operate with highly abrasive slurries) |
|
Chemical (Excellent chemical resistance with corrosive/ hazardous chemicals) |
|
Electroplating and Anodizing |
|
Pulp and Paper |
|
Oil and Gas (Can operate in classified/hazardous areas) |
|
Water / Waste Water Treatment |
|
Pneumatic Diaphragm Pump Advantages:
-Idling ,Self-priming , Submerse capability.
-Provide stall-free, ice-free zero leak operation.
-Epoxy-coated air section for tough environmental conditions.
-Bolt joint design provides even sealing pressure for optimal performance.
-Diversity of material,no rotating parts,applicable to various erosive situations.
-Modular air valve,low pulsation operation,providing smooth and rapid changeover.
-No electricity . It's safe and realiable while using in the flammable and explor place .
-Can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
Max Capacity | 15 gpm ( 57lpm ) |
Max Reciprocating Speed | 400 cpm |
Power | Pnuematic |
Max Permitted Grain | 3/32 in ( 2.5mm ) |
Advantages: | Explosion-proof |
Air Inlet Size | 1/4 in.npt (f) |
Air Outlet Size | 3/8 in.npt (f) |
Fluid Inlet Size | 1/2 in. |
Fluid Outlet Size | 1/2 in. |
Net Weight | 3.4kg |
Packing & Shipping:
Maintenance
The air valve is designed to operate un-lubricated. If lubrication is desired, every 500 operation hours (or monthly), just add several drops of machine oil to container below in air regulator (C).
Flush the pump often enough to prevent the fluid you are pumping from drying or freezing in the pump and damaging it. The fluid for flushing should be compatible with the pumped fluid, and doesn’t affect the wetted parts. For recommendation on flushing fluids and periods, please contact with the provider and manufacturer.
Always flush the pump and relieve the pressure before storing it for any length of time.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air operated diaphragm pump have?
A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
