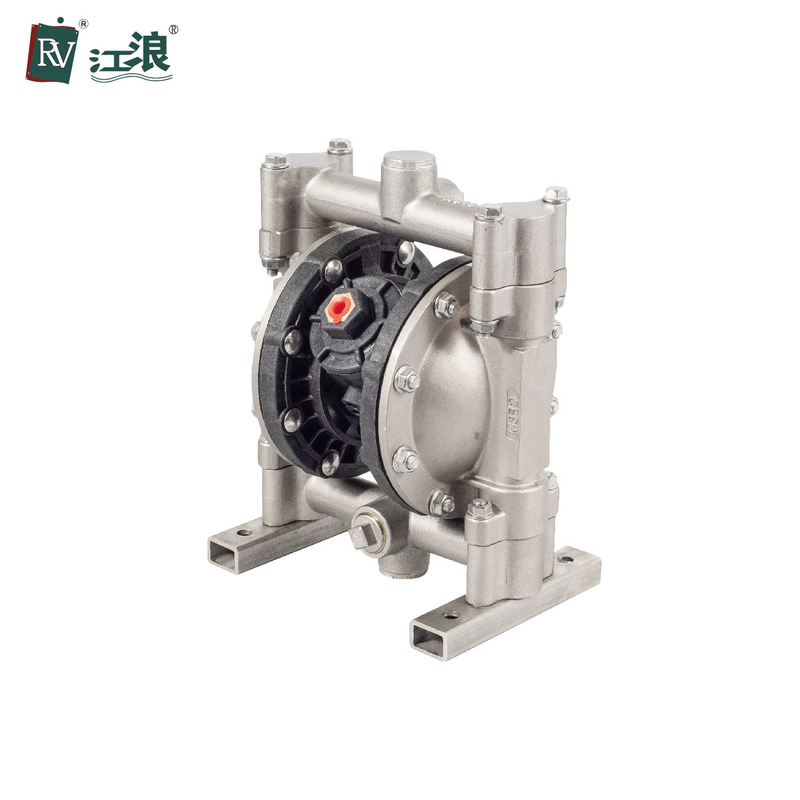

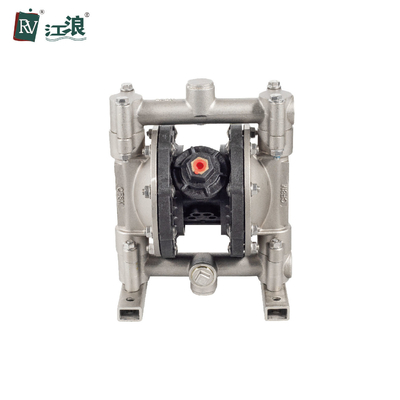

1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer

1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer
1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer 1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer

Large Image :  1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-5L411-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer

Description
Product Name: Pneumatic Diaphragm Pump Type: Fuel & Oil Transfer Pump
Pump Casting: SS 316 Model Type: RVP-5L411-T
Lift: 230 FT / 70meter Application: Commercial Buildings, Drinking Water Treatment
Structure: Diaphragm Pump Weight: 8.9kg
High Light:

1/2'' Stainless Steel Double Diaphragm Pump

,

Pharmaceutical Solvent Transfer Double Diaphragm Pump

,

Double Pneumatic Diaphragm Pump

1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer



PneumaticDiaphragm Pump Application:



1. The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.



Pneumatic Diaphragm Pump Installation:



1. Be sure the mounting can support the weight of the pump, hoses, and accessories, as well as the stress during operation progress.

2. During installation, make sure that the pump has been fixed with bolts on the mounting feet.

3. In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the pump.

4. While fastening the pump, rubber pad can be padded to reduce the noise and vibration during operation.





Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 8.9kg






1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer 0

Packing & Shipping:



1/2'' Stainless Steel Double Diaphragm Pump For Pharmaceutical Solvent Transfer 1




Air Operated Diaphragm Pump Introduction



RV air operated diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.





1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.

2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.

3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).

4. Temperature range of working environment: 5~65℃

5. The air operated diaphragm pump has no rotating parts and shaft seals. The diaphragms separate the pumped medium from moving part and working medium absolutely, so that the pumped medium does not leak to outside. So there are no risks of environment pollution and personal injury while pumping poisonous, volatile or corrosive media.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated  diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air operated diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
