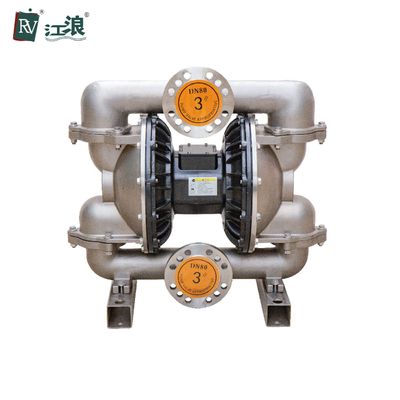

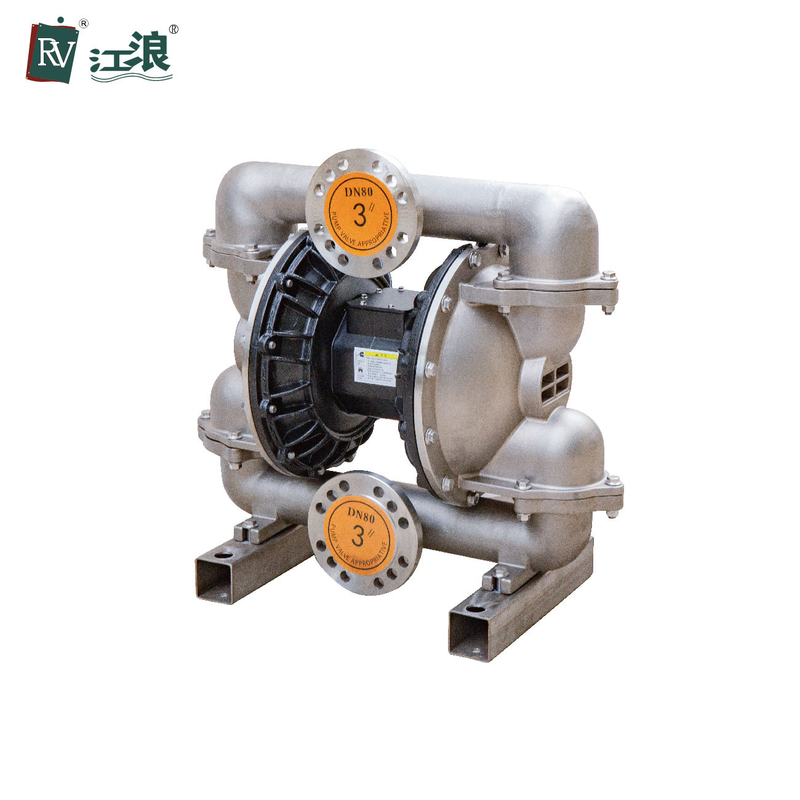

SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer

SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer
SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer

Large Image :  SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVS-KL411-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer

Description
Pump Materal: Stainless Steel 316 Certification: ATEX
Form Of Pipe: ANSI FLANGE Diaphragm Material: PTFE
Ball Material: PTFE Wooden Case Packing: 840×480×800mm
Size: 3 Inch Noise Level: Lower Than 75 Db
Theory: Air Operated Diaphragm Pump
High Light:

Air Operated Transfer Pump

,

Lotion Acid Transfer Double Diaphragm Pump

,

Water Oil Transfer Double Diaphragm Pump

3 Inch Stainless Steel Air Operated Pneumatic Water Oil Lotion Acid Transfer Double Diaphragm Pump



Air Operated Diaphragm Pump Applications

  • Dewatering through filtration (filter press)
  • Chemical dosing to neutralize pH levels and treat sludge
  • Wastewater sump transfer and sample
  • Municipal water treatment plants, wastewater treatment plants and utility pumps
  • Belt press feed
  • Sewage treatment process
  • Potable water systems

 Advantage:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.




Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight Stainless Steel 122 kg



Type of Diaphragm IMAGE Typical Usage
PTFE SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer 0 Excellent choice when pumping highly aggressive fluids such as aromatic or chlorinated hydrocarbons, acids, caustics, ketones and acetates.
Temperature range +4°C to +104 C (+40 F to +220F)


SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer 1


Packing & Shipping:


SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer 2SS316 Air Operated Pneumatic Double Diaphragm Pump Water Oil Lotion Acid Transfer 3



INSTALLATION


Be sure the mounting can support the weight of the air diaphragm pump, hoses, and accessories, as well as the stress during operation progress.
During installation, make sure that the air diaphragm pump has been fixed with bolts on the mounting feet.
In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.
While fastening the air diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.





FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air operated diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
