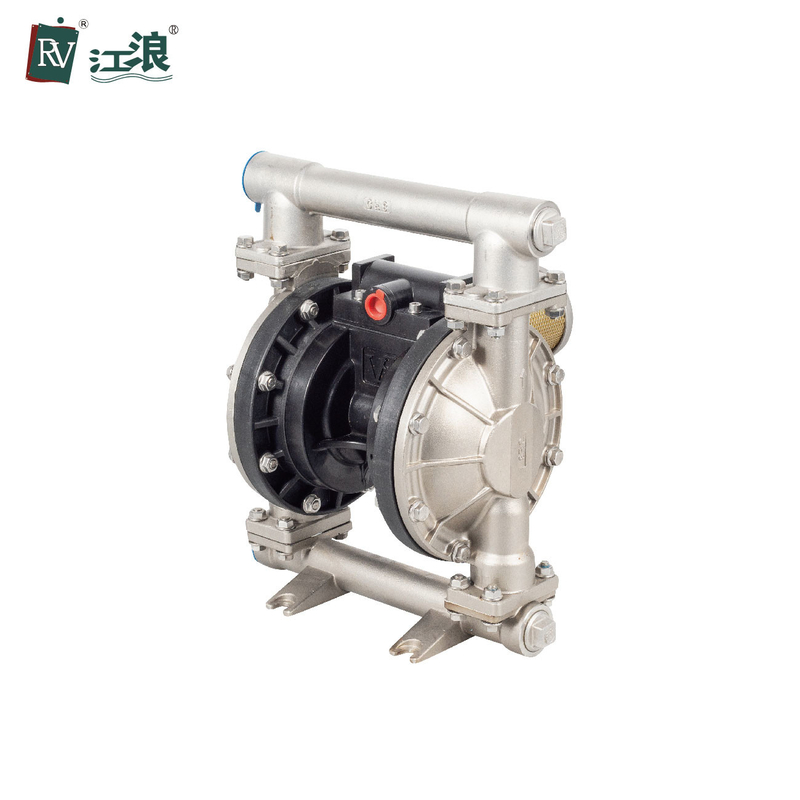

Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1"

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1"

Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1"
Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1"

Large Image :  Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1"

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-74377-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1"

Description
Product Name: Air Operated Diaphragm Pump With Diaphragm Failure Detector Horese Power: 8.4 Bar
Type: Leak Detector Monitors Pump Accessories: Sensor
Method Of Detection: Optional And Conductive Control Box: Optional
Ball: Buna-N Membrane: Buna-N
High Light:

Powder Transfer Air Driven Diaphragm Pump

,

Stainless Steel Pneumatic Operated Diaphragm Pump

,

8.4 Bar Air Operated Transfer Pump

1" Wholesale Stainless Steel Powder Transfer Diaphragm Pump



USAGE OF AIR OPERATED DIAPHRAGM PUMPS WITH DFP

The leak detector monitors air operated diaphragm pumps for diaphragm rupture or other leaks that may contaminate the fluid being pumped. The system is made up of a main control box and two liquid detection sensors. The sensors are screwed into the air side of each diaphragm on the pump. When liquid is sensed by either one of the sensors, an alarm will sound, indicating a diaphragm rupture has occurred. The control box also has the ability to control an external device such as an alarm, light, or an air solenoid via an onboard relay



PARAMETER





Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Operated Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.2 in(5mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Aluminum
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Installation 340×230×440mm



Stainless Steel Air Operated Diaphragm Pump Powder Transfer 1" 0


Performance Introduction:

During normal operation, the LED indicators on the control box and each sensor will flash once per second, indicating proper operation. If a system fault or a leak is detected, an alarm will sound and the LED on the control box will blink three times per second.


Such air operated diaphragm pumps have totally 4 specifications. The sizes for import/export are ", 1.5", 2",3". The components which contact with the fluids are usually made of Aluminum alloy, PP, PVDF, stainless steel. Depend on the varied applications; various materials of diaphragm can meet the requirements of different fluid mediums (corrosive, volatile, flammable, poisonous liquid or fluids with particles and high viscosity)

FAQ
Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air operated diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
