1/2" Portable Air Operated Diaphragm Pump For Water Transfer

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

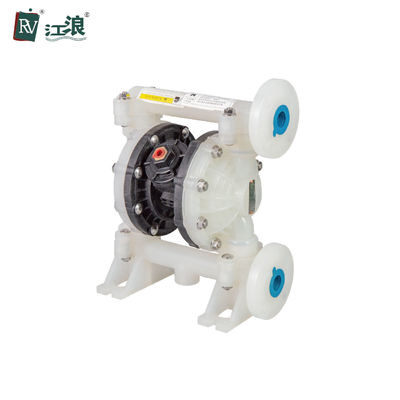

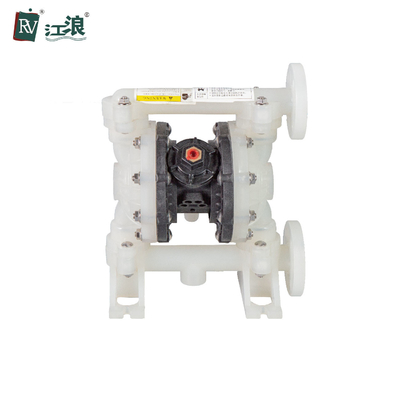

1/2" Portable Air Operated Diaphragm Pump For Water Transfer

1/2" Portable Air Operated Diaphragm Pump For Water Transfer
1/2" Portable Air Operated Diaphragm Pump For Water Transfer 1/2" Portable Air Operated Diaphragm Pump For Water Transfer

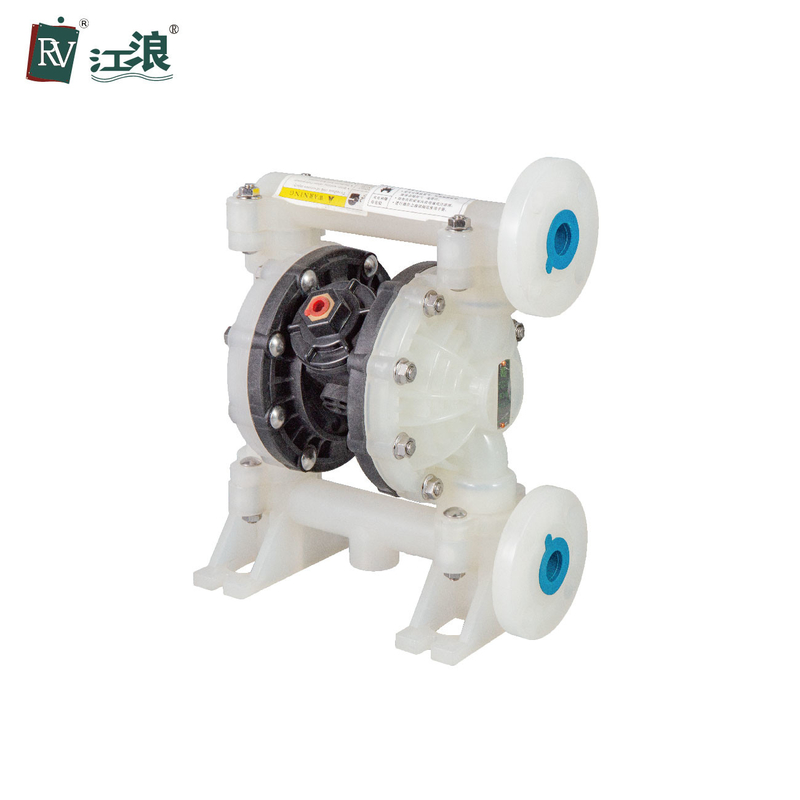

Large Image :  1/2" Portable Air Operated Diaphragm Pump For Water Transfer

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-62911-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/2" Portable Air Operated Diaphragm Pump For Water Transfer

Description
Product Name: Air Diaphragm Pump Inlet/ Outlet: 3 / 4"
Flow Rate: 15GPM / 57LPM Max. Air Consumption: 20scfm (10L/s)
Maximum Reciprocating Speed: 400 Cpm Certificateion: ISO 9001 , CE , ATex
Diaphragm: PTFE Seat O Ring: PTFE Encapsuled FCP
High Light:

1/2" Air Operated Diaphragm Pump

,

Portable Air Operated Diaphragm Pump

,

Water Transfer Air Driven Diaphragm Pump

1/2" Air Operated Diaphragm Pump For Water Transfer Portable

Reliable pumping solutions:
When it comes to process applications, it’s tough to beat our pumps!
We offer a variety of piston transfer and air diaphragm pumps for your low to high viscosity fluids. Every air diaphragm pump is manufactured with your productivity in mind – providing you a more reliable, efficient pump

Air Operated Diaphragm Pump Features:
Designed to meet your application needs.
Manufactured for complete corrosion resistance- constructed with Polypropylene center body, standard stainless steel fasteners, and your choice of Acetal,  PVDF (Kynar) or Polypropylene casing materials.


Characteristic:
• 3/4 in (19.05 mm) end-porting
• No seals to leak or fail
• Quiet running — less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• High flow rates in a small, portable package
• External controller for optional remote operation





Max Working Pressure 100 psi(0.7Mpa, 7bar)
Max Flow Rate 15 gpm(57lpm)
Max Reciprocating Speed 400 cpm
Max Suction Height (Dry Sucking) 4.5m
Max Permitted Grain 3/32 in(2.5mm)
Max Air Consumption 20scfm(10L/s)
Air Inlet Size 1/4 in.npt(f)
Air Outlet Size 3/8 in.npt(f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight PP pump 2.8kg;







1/2" Portable Air Operated Diaphragm Pump For Water Transfer 0

Specifications:
• Maximum Flow Rate:
• Pipe Connection: 1/2" NPT
• Pump Body Material: Polypropylene
• Diaphragm Material: PTFE (PTFE), Santoprene, NBR (Buna), Hytrel,
• Air Motor Material: Polypropylene
• Maximum Operating Pressure: 100 PSI (0.7 Mpa)
• Supply Air Pressure Range: 30 to 100 PSI (0,7 Mpa)
• CE Certified: Yes:


Easy Maintenance:
• Low internal volume reduces waste and makes clean-up easy
• Stainless steel bolts resist corrosin and provide positive positioning for easy reassembly

Unique, Patented Air Valve:
• Three-way pilot valve for no-stick operation
• All parts are replaceable without opening wet body parts
• No air-line lubrication require

Air Diaphragm Pump Packing Status:

- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free




Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


Company Introduction:

Jianglang Technology Co., Ltd mainly produce Air Diaphragm Pump, Electric Diaphragm Pump, and Pump Systems Complete, Regulating Valve, Control Valve, Sequencing Valve, ect.
The air diaphragm pumps and valves have been granted more than 40 patents.
Jianglang participated in setting norms and standards for technical specification for air diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.


FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
