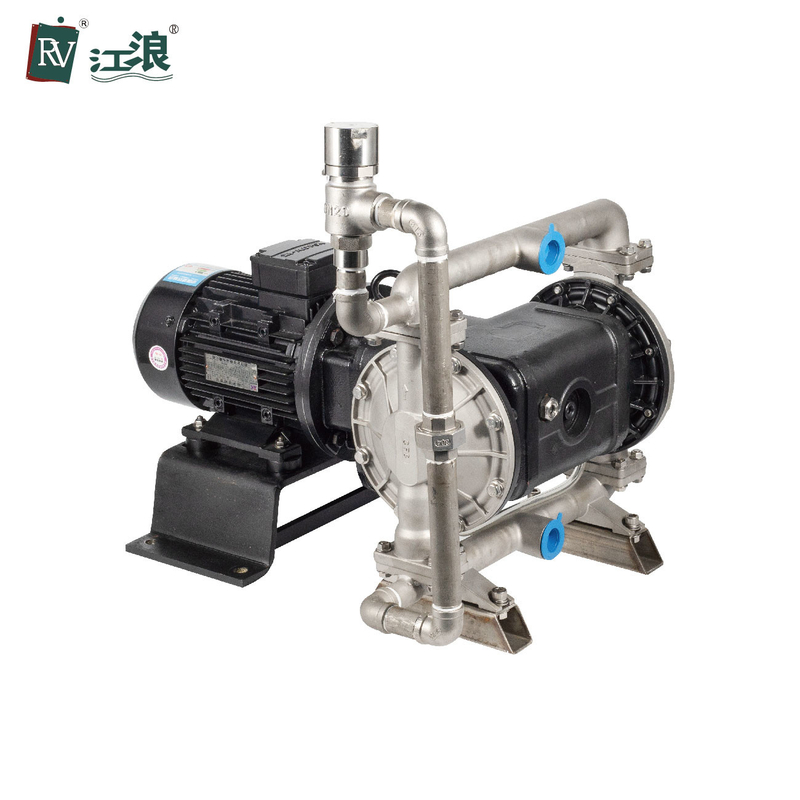

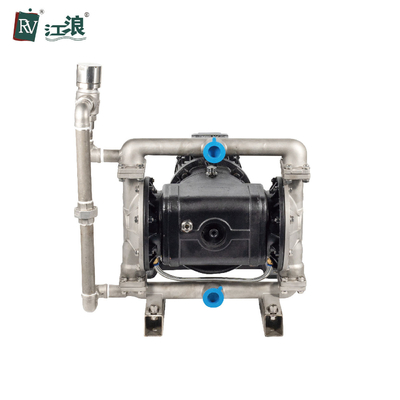

1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer

1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer
1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer 1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer

Large Image :  1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-7L411-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer

Description
Pump Power: Electric Driven Motor Power: 1.5 Kw ( 2.2kw Senior As Options)
Speed (r/min): 1450 Max. Discharge Pressure: 0.6 Mpa
Max. Flow Rate: 3.5 M³/h Connection: NPT Or BSP Thread
Pump Body: SS316 Valve Seat: SS316
Ball: PTFE Diaphragm: PTFE
High Light:

Air Driven Double Diaphragm Pump 1"

,

Liquid Transfer Double Diaphragm Pump

,

Stainless Steel Electric Diaphragm Pump

1" Stainless Steel Electric Air Double Diaphragm Pump Motor Driving Liquid Transfer



INTRODUCTION



Motor diaphragm pump is used where there is a demand for high pumping performance, combinations of both hot and corrosive fluids, both acidic and alkali. They are the ultimate choice for durable long life performance.

RV offers some class leading diaphragm materials in combination with these pumps to tackle some of the most difficult pumping applications.



RV Motor Diaphragm Pump Suitable Industries:



1. Peanut butter, pickle, mashed potato, small red sausage, jam, apple pulp, chocolate, etc.

2. Paint, gum and pigment.

3. Sticky liquid, such as adhesive and glue.

4. Various tiles, porcelain, brick ware and ceramic glaze.

5. After the well is drilled, pump the sediment and grouting.

6. All kinds of sewage.

7. Various emulsions and fillers.

8. Oil tanker and barge clean up and suck up the sewage in the warehouse.

9. Hops, fermentation powder, syrup and molasses.

10. Water accumulation in mines, kang channels, tunnels, mineral processing and slag.

11. Cement grout, mortar and various kinds of rubber slurry.

12. All kinds of abrasive, etchant, oil and mud, clean oil and scale liquid.

13. All kinds of highly toxic, flammable and volatile liquids.

14. All kinds of strong acids, strong bases and highly corrosive liquids.



Diaphragm Material Selection:



NBR

Carbon disulfide, carbon tetrachloride, oil: oil, diesel, and other temperatures 0-80

degrees: ding qing rubber

Santoprene

Paint, weak acid, alkali and other special weak corrosive liquid, temperature 0-100

degrees: mountain road rubber

PU,EPDM

Mortar, sludge, and so on, wear greater normal temperature liquid: ethylene propylene

rubber, polyurethane

PTFE F46 Sulfuric acid, nitric acid, and other corrosive liquids: PTFE F46
PTFE

Food, medicine, strong acid, strong alkali or high temperature special corrosivity,

high temperature has low: import PTFE



1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer 0



Packing & Shipping:


1" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer 11" Stainless Steel Electric Air Double Diaphragm Pump Liquid Transfer 2




FAQ



1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
