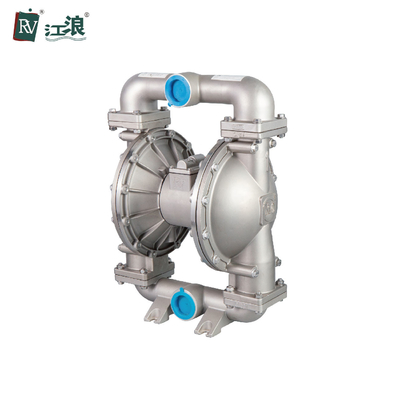

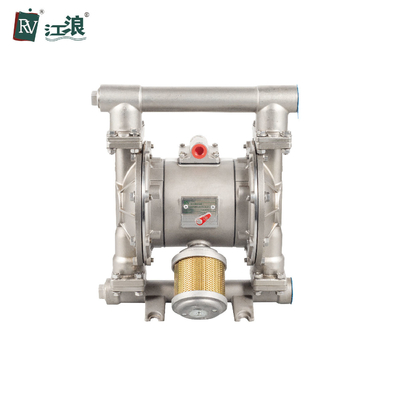

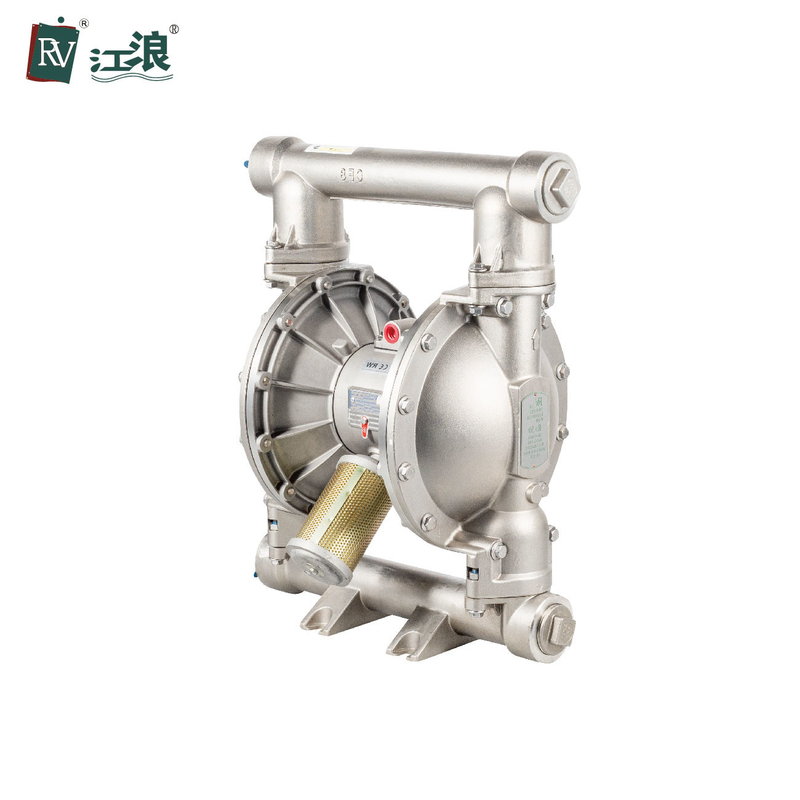

2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling

2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling
2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling

Large Image :  2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVS-F4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling

Description
Materal: Stainless Steel Brand: RV
Color: Black Flow Rate: 568L/M
Weight: 50kgs Carton Size: 52*35*65cm
Size: 2 Inch Model: RVS-F4311-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

RV 2 Inch Stainless Steel Diaphragm Pump

,

RV Stainless Steel Diaphragm Pump System

,

RV 2 stainless steel diaphragm pump

Diaphragm Pump Advantages:
- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free

Diaphragm Pump Information:
- Name: Air Operated Diaphragm Pump
- Model Type:
RVS-F4311-T
- Wetted Parts: SS304
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Threaded
Diaphragm Pump HS CODE : 8413501090
Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free


Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight AL pump 29kg; SST pump 47kg

2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 0
2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 12 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 2
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

2 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 32 Inch Stainless Steel Diaphragm Pump System Pneumatic Fluid Handling 4
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
