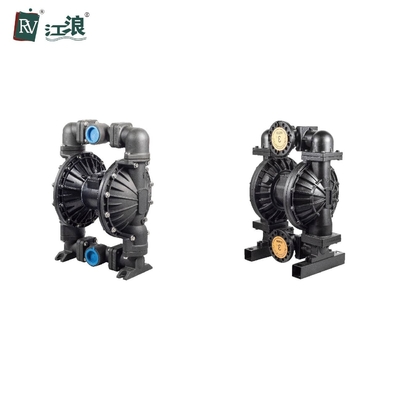

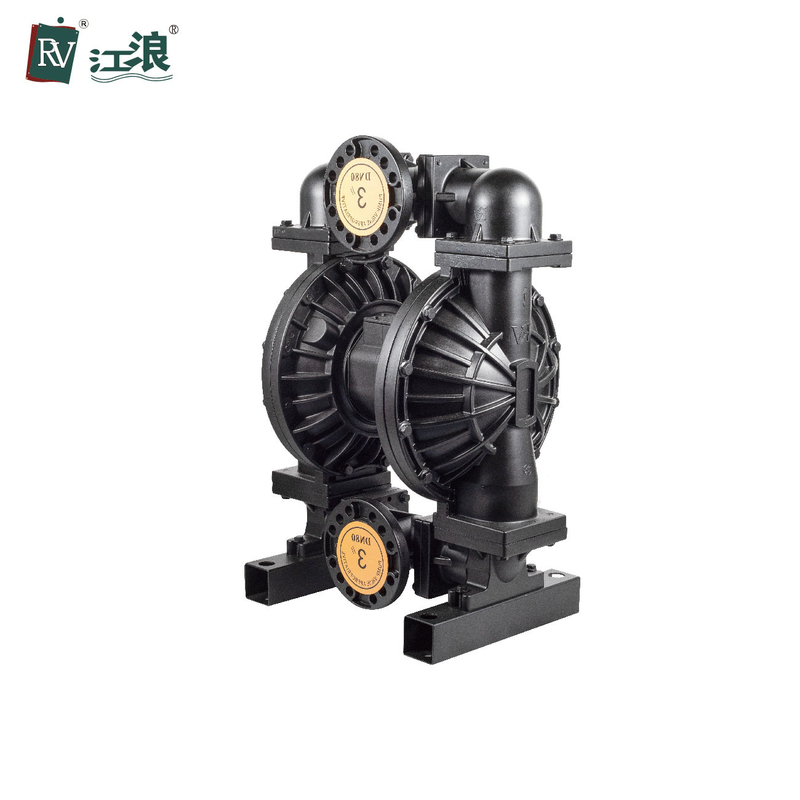

3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment

3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment
3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment

Large Image :  3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-K3311-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment

Description
Pump Materal: Aluminum Alloy Casting Fluids Handled: Coating
Typical Application: Mining Industry Max. Free Flow Delivery: 1022 Lpm
Max. Pump Speed: 135 Cpm Displacement Per Cycle: 2.0 Gallon (7.6 Liter)
Size: 3 Inch Noise Level: Lower Than 75 Db
Max. Fluid Working Pressure: 120 Psi
High Light:

Aluminum Pneumatic Diaphragm Pump

,

Neutral Water Treatment Diaphragm Paint Pump

,

Pneumatic Diaphragm Pump 3 Inch

3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment

Diaphragm Paint Pump Features:

1. Because it is using air as power, the pneumatic diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.
2. Use santoprene diaphragm, can be used for wastewater properties relatively.
3. Pneumatic Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid
.



Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm (90L/s)
Air Inlet Size 3/4 in.npt (f)
Air Outlet Size 1 in.npt (f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight 66kg



Exterior dimension drawing



3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 0



Display


3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 1



Packing & Shipping:


3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 23 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 3




Company Introduction:



Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.

Pneumatic diaphragm pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.

Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.

Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.


3 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 43 Inch Aluminum Pneumatic Diaphragm Pump For Neutral Water Treatment 5

Installation


Be sure the mounting can support the weight of the pneumatic diaphragm pump, hoses, and accessories, as well as the stress during operation progress.

During installation, make sure that the pneumatic diaphragm pump has been fixed with bolts on the mounting feet.

In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.

While fastening the pneumatic diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
