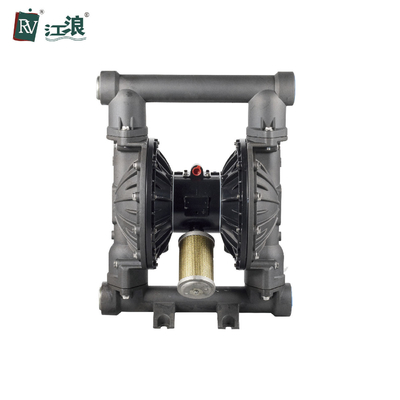

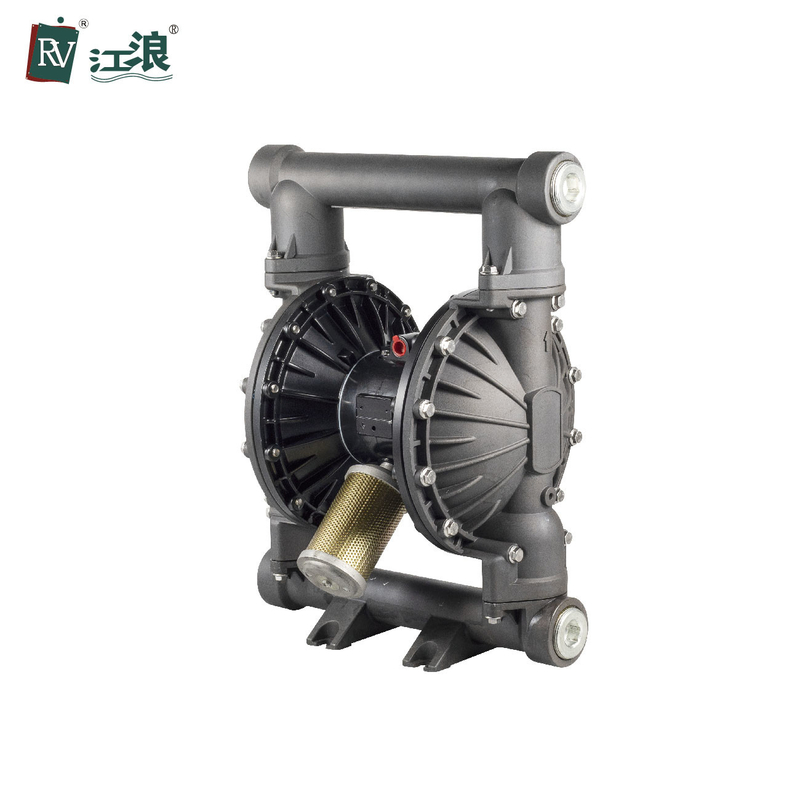

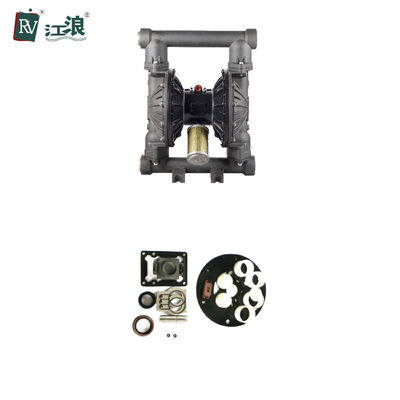

Medium Sized Diaphragm Paint Pump ATEX 2'' Hytrel Membranes

Medium Sized Diaphragm Paint Pump ATEX 2''  Hytrel Membranes
Medium Sized Diaphragm Paint Pump ATEX 2''  Hytrel Membranes Medium Sized Diaphragm Paint Pump ATEX 2''  Hytrel Membranes Medium Sized Diaphragm Paint Pump ATEX 2''  Hytrel Membranes

Large Image :  Medium Sized Diaphragm Paint Pump ATEX 2'' Hytrel Membranes

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-F3355-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Medium Sized Diaphragm Paint Pump ATEX 2'' Hytrel Membranes

Description
Materal: Aluminum Alloy Certification: CE ISO
Place Of Origin: Shanghai Liquid: Solvent, Paint And Coating
Application: Painting And Coating Industry Carton Size: 770×370×570mm
Size: 2 Inch Noise Level: Lower Than 75 Db
Theory: Air Diaphragm Pump
High Light:

RV Medium sized Diaphragm Paint Pump

,

RV Diaphragm Paint Pump ATEX

,

RV Paint air driven diaphragm pump

Medium Sized Diaphragm Paint Pump ATEX 2'' Hytrel Membranes


Application of Diaphragm Paint Pump:



Diaphragm paint pumps can deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
1. The diaphragm paint pumps can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The
diaphragm paint pumps can suck the paint, pigment, glue and adhesive etc.
3. The
diaphragm paint pumps can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The
diaphragm paint pumps can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The
diaphragm paint pumps can suck various toxin and flammable or volatility liquid etc.
6. The
diaphragm paint pumps can suck various wedge water, cement slurry and mortar etc.
7. The
diaphragm paint pumps can suck various strong acid, alkali and corrosive liquid etc.
8.  It can be used as a front-step tranmission device of the solid and liquid separation equipment.



Max Working Pressure 120 psi ( 0.84 Mpa, 8.4 bar )
Max Flow Rate 150 gpm (570 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.24 in (6mm)
Max Air Consumption 140 scfm ( 70 L/s )
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 2 in.
Fluid Outlet Size 2 in



Medium Sized Diaphragm Paint Pump ATEX 2''  Hytrel Membranes 0

Model Pipe Size Max. Air Pressure Wetted Parts Material Valve Seat

Ball Material


Connection

RVA-F3311-T 2” inch 8.4 bar Aluminum Stainless Steel PTFE

NPT THREAD




Company Introduction:

Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Pneumatic diaphragm pump (AODD) pump are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.

Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.


Medium Sized Diaphragm Paint Pump ATEX 2''  Hytrel Membranes 1
FAQ


Q1. Can I have a sample order for pneumatic diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have any MOQ limit for pneumatic diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for pneumatic diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the pneumatic diaphragm pumps?
A: Yes, we offer 1 years warranty to our pneumatic diaphragm pumps except easy wear parts.
