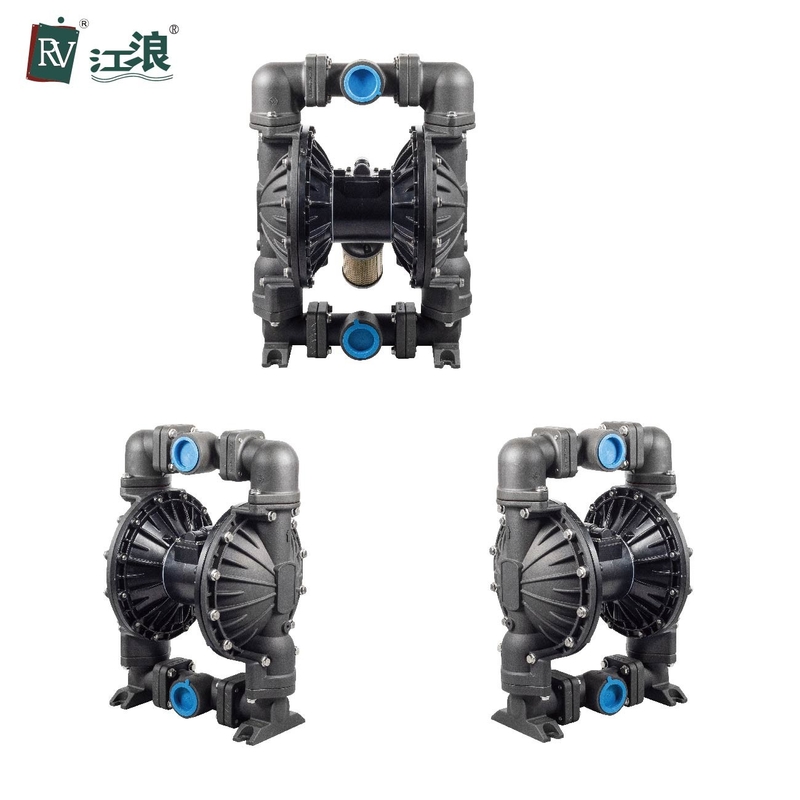

2'' Aluminum Pneumatic AODD Pump With PP Air Center

2'' Aluminum Pneumatic AODD Pump With PP Air Center
2'' Aluminum Pneumatic AODD Pump With PP Air Center

Large Image :  2'' Aluminum Pneumatic AODD Pump With PP Air Center

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-F3311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2'' Aluminum Pneumatic AODD Pump With PP Air Center

Description
Materal: Aluminum Brand: RV
Color: Black Flow Rate: 568L/M
Weight: 32kgs Carton Size: 52*35*65cm
Size: 2 Inch Model: RVP-F3311-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

PP Air Center AODD Pump

,

Aluminum Mechanical Diaphragm Pump

,

Pneumatic Diaphragm Pump 2''

2'' Factory Wholesale Aluminum AODD Pump With PP Air Center



AODD Pump Advantages:


- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free

Air Diaphragm Pump Information:


- Name: Air Operated Diaphragm Pump
- Model Type: RVA-F3411-T
- Wetted Parts: Aluminum
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Threaded

AODD Pump HS CODE : 8413501090

Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free





Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight

AL pump 29kg; SST pump 47kg





2'' Aluminum Pneumatic AODD Pump With PP Air Center 02'' Aluminum Pneumatic AODD Pump With PP Air Center 1

PACKING & SHIPPING


2'' Aluminum Pneumatic AODD Pump With PP Air Center 22'' Aluminum Pneumatic AODD Pump With PP Air Center 3



Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:




We have the following materials available, and our engineers will select the most suitable and economical air diaphragm pump for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".


2'' Aluminum Pneumatic AODD Pump With PP Air Center 42'' Aluminum Pneumatic AODD Pump With PP Air Center 52'' Aluminum Pneumatic AODD Pump With PP Air Center 6
FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
