Product Details:
|
| Product: | FDA Air Operated Diaphragm Pump | Port Sizes: | 3 Sizes Available From 1”to 3”ports |
|---|---|---|---|
| Port Type: | Tri - Clamp | Air Pressure: | From 20 To 120 PSI |
| Compatibility: | CE Compliant | Control Box: | Optional |
| Diaphragm: | PTFE | Backup Diaphragm: | Santoprene |
| High Light: | RV FDA Sanitary Air Operated Diaphragm Pump 2,RV fda diaphragm pump,RV sanitary diaphragm pump |
||

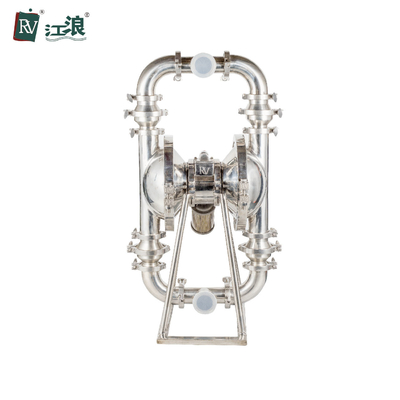

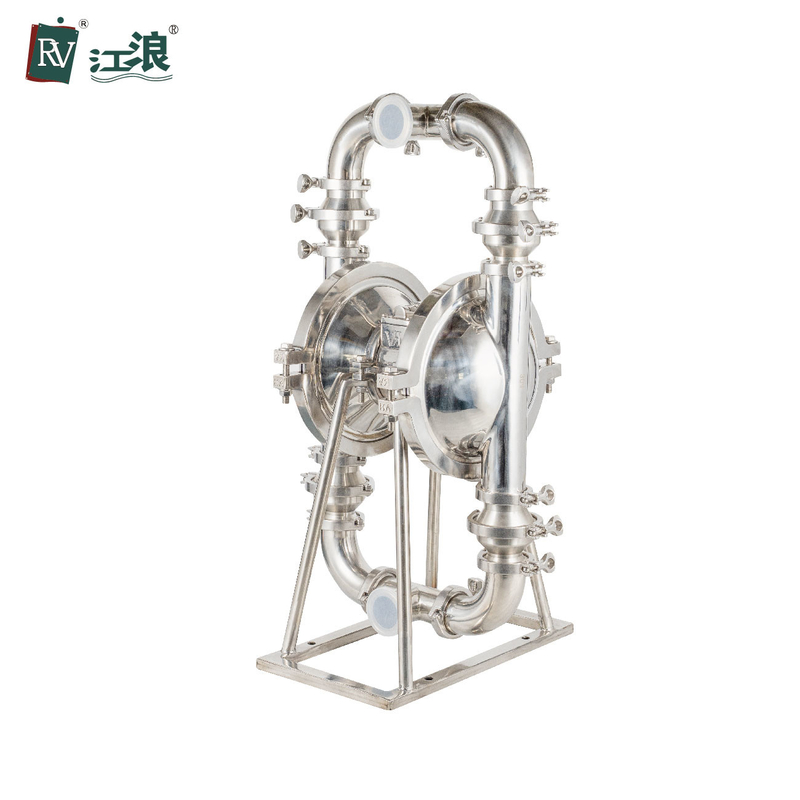

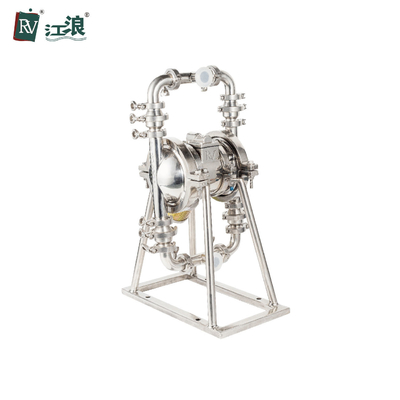

2 inch Food Grade Sanitary Air Operated Diaphragm Pump For Food Ingredients
The diaphragm pumps from the FDA series are designed to efficiently and reliably pump foods, beverages, cosmetics and pharmaceutical products. The options installed in the factory enable you to adapt your RV FDA pump to your specific application requirements to thereby achieve a low-cost, smooth integration checked by the factory. The construction for rapid dismantling enables rapid inspection and maintenance - and therefore speedy recommissioning.
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Operated Diaphragm Pump |
| Power Driven | Compressed air |
| Max. Working Pressure | 0.5 Mpa |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Stainless Steel 304 |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size2 | in. |
| Connection | Thread |
Introduction of RV FDA Air Operated Diaphragm Pump Performance
1. No need to irrigate water, the suction height is up to 5m, the lift is up to 50m, and the outlet pressure is ≤0.5MPa.
2. The flow is spacious, the pass performance is good, and the maximum particle diameter is 6mm, which makes the pump wear little.
3. The head and flow rate can be adjusted by the pressure of the gas source (the pressure of the gas source is between 0.1 and 0.5 MPa).
4. Working environment temperature range: 5 ~ 65 ° C.
5. The FDA air operated diaphragm pump has no rotating parts and no shaft seal. The diaphragm separates the pumped medium from the moving parts of the pump. The delivered medium will not leak to the outsid
6. No need to use electricity, safe and reliable in flammable and explosive places.
7. Easy to use, reliable in operation, easy to open and close, only need to open and close the gas valve, even if there is no medium running or sudden stop due to unexpected circumstances, the pump will not be damaged.
8. Simple structure and less wearing parts. The FDA air operated diaphragm pump has a simple structure and is easy to install and maintain.
