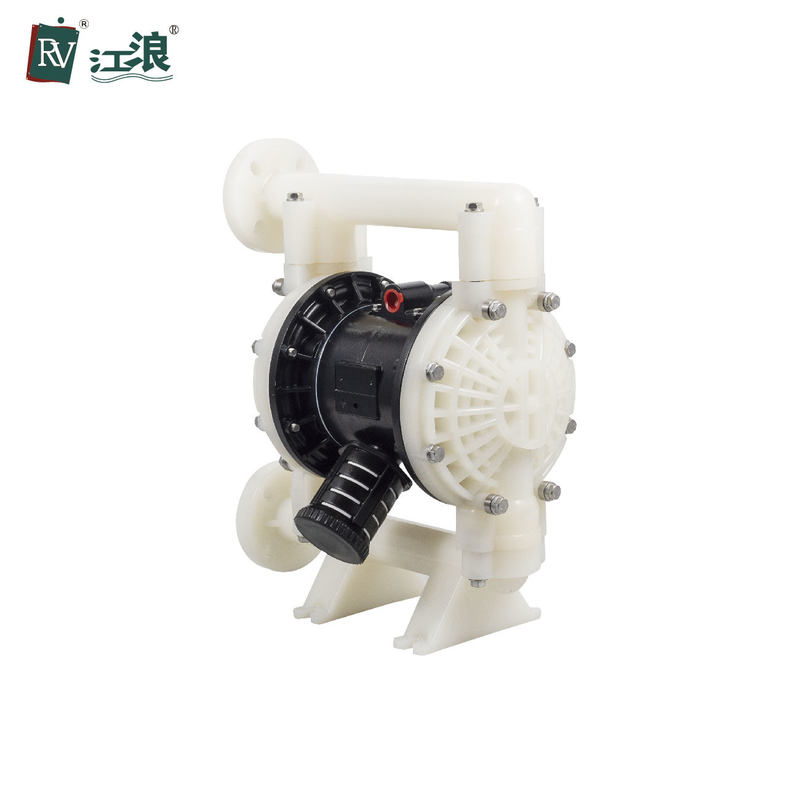

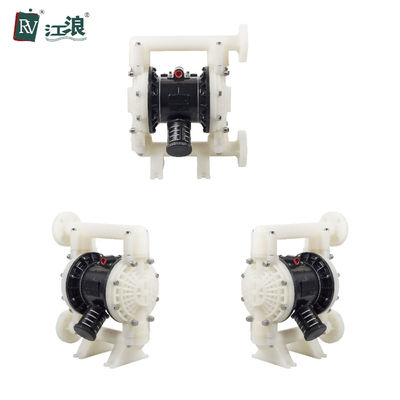

PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1"

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1"

PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1"
PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1" PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1"

Large Image :  PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1"

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-75A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1"

Description
Product Name: Plastic Diaphragm Pump Inlet/ Outlet: 1 "
Type: Chemical Pumps Max. Head: 70 M
Usage: Chemicl Coating Water Treament Certificateion: ISO 9001 , CE , ATex
Elastomer: PTFE Center Block: PVDF
High Light:

AODD Acid Transfer Pump

,

Industrial AODD Pump

,

Explosion Proof Electric Diaphragm Pump

AODD PVDF Explosion Proof Industrial Chemical Corrosive Resistant 1" Acid Transfer Pump

AODD Pumps Advantages:

1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with longer service life.
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.


Application:


Pumps are widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.



Specification


Max Working Pressure 120 psi(0.8Mpa, 8.4bar)
Max Flow Rate 40 gpm(151lpm)
Max Reciprocating Speed 276 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16 in(4mm)
Max Air Consumption 45scfm(22.5L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Net Weight PVDF pump 11.3 kg




PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1" 0
Packing & Shipping:


PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1" 1PVDF Explosion Proof Industrial AODD Pump Chemical Corrosive Resistant 1" 2


Company Introduction:


Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.

FAQ


Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our air operated diaphragm pump.
