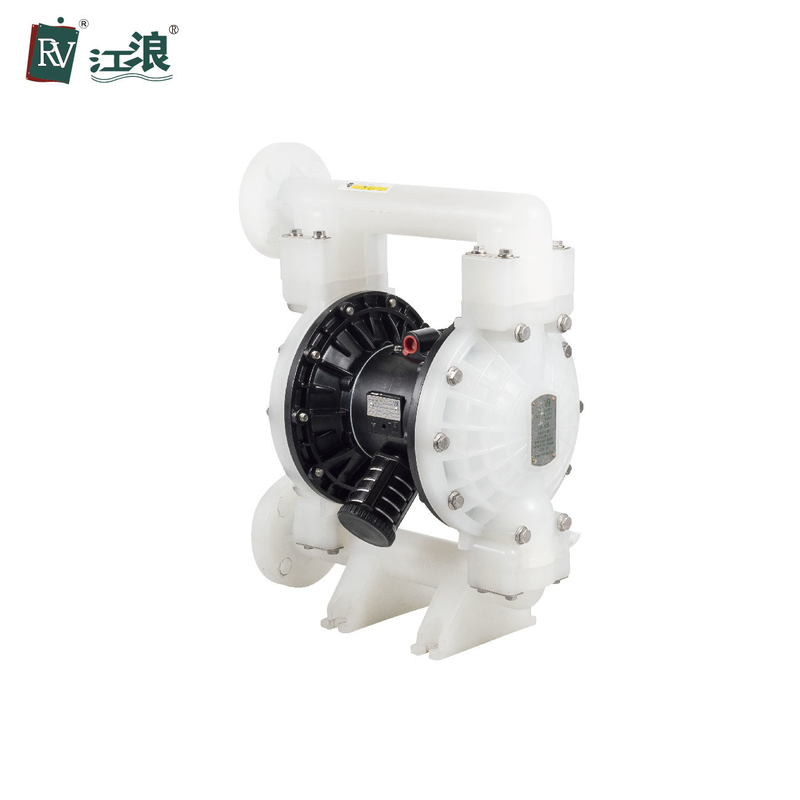

1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure

1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure
1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure 1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure

Large Image :  1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-B2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure

Description
Materal: PP Brand: RV
Color: White Flow Rate: 340L/M
Weight: 15kgs Carton Size: 48*29*53cm
Size: 1 1/2 Inch Model: RVP-B2A11-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

Reciprocating Air Driven Pump

,

Air Operated Diaphragm Water Pump

,

1.5" Air Operated Diaphragm Pump

1.5" Low Pressure Standard Air Operated Diaphragm Water Pump Reciprocating Air Driven Pump

AODD Pump Advantages:


ASimple structure,reliable connection ,easy assembly and disassembly.
BModular design,low air consumption,no dead spots and no need lubrication.
CEnhanced the chamber strength,has long_term durability.
DBolts connection design,good seal.
EAdopt special grinding machine to process in high roundness and good seal.
FAccurately calculatethe diaphragm moving distance to reduce the force to diaphragm.




Max Working Pressure120 psi(0.84Mpa, 8.4bar)
Max Flow Rate90 gpm(340lpm)
Max Reciprocating Speed200 cpm
Max Suction Height (Dry Sucking)5m
Max Permitted Grain0.2 in(5mm)
Max Air Consumption80scfm(70L/s)
Air Inlet Size1/2 in.npt(f)
Air Outlet Size3/4 in.npt(f)
Fluid Inlet Size1 1/2 in.
Fluid Outlet Size1 1/2 in.
Net WeightPP pump 15kg; PVDF pump20kg

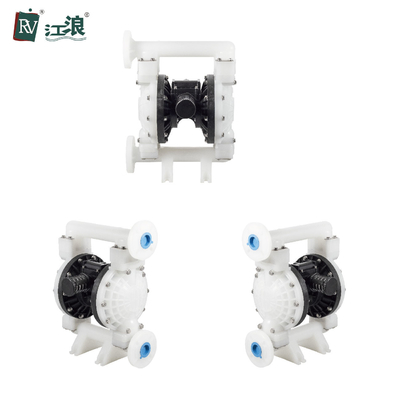

1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure 01.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure 1
Packing & Shipping:
1.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure 21.5" Reciprocating Air Operated Diaphragm Water Pump Low Pressure 3

Our service
* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
