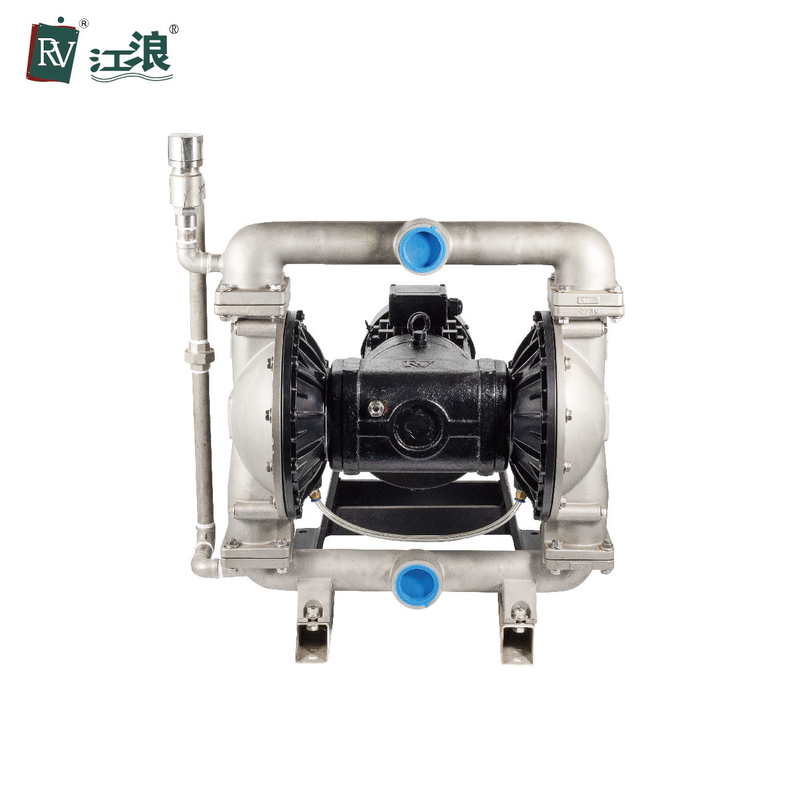

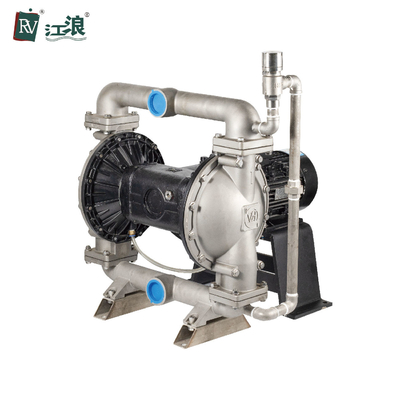

2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel

2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel
2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel

Large Image :  2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-F4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel

Description
Pump Body Material: Stainless Steel 304 Brand: RV
Color: Silver Flow Rate: 10.5 M³/h
Suction Lift: 3 Meter Packing Method: Wooden Case
Size: 2 Inch Model: RVE-F4311-T
Certification: CE ATEX ISO9001 Power: Electric
High Light:

2" Motor Diaphragm Pump Wastewater

,

Motor Diaphragm Pump Wastewater Treatment

,

motor operated diaphragm pump

2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel



Electric Diaphragm Pump Advantages:


- Long service life
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free


Motor Diaphragm Pump Information:


- Model Type: RVE-F4311-T
- Wetted Parts: SS304
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Threaded


Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free



Model RVE-F4311-T
Max Flow Rate 10.5 m³/h
Max Reciprocating Speed 145 cpm
Max Suction lift 3m
Max head lift 30m
Max Pressure 6 kg
Motor Speed 1420
Motor Capacity 3KW
Temperature (Mental) 90
Temperature (plastic) 80





2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 0

2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 12" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 2



Packing & Shipping:

Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service


Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Motor Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.






2" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 32" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 42" Motor Diaphragm Pump Wastewater Treatment Stainless Steel 5
FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
