2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

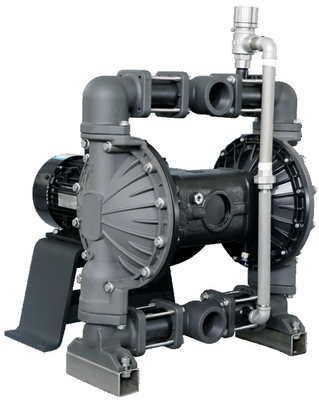

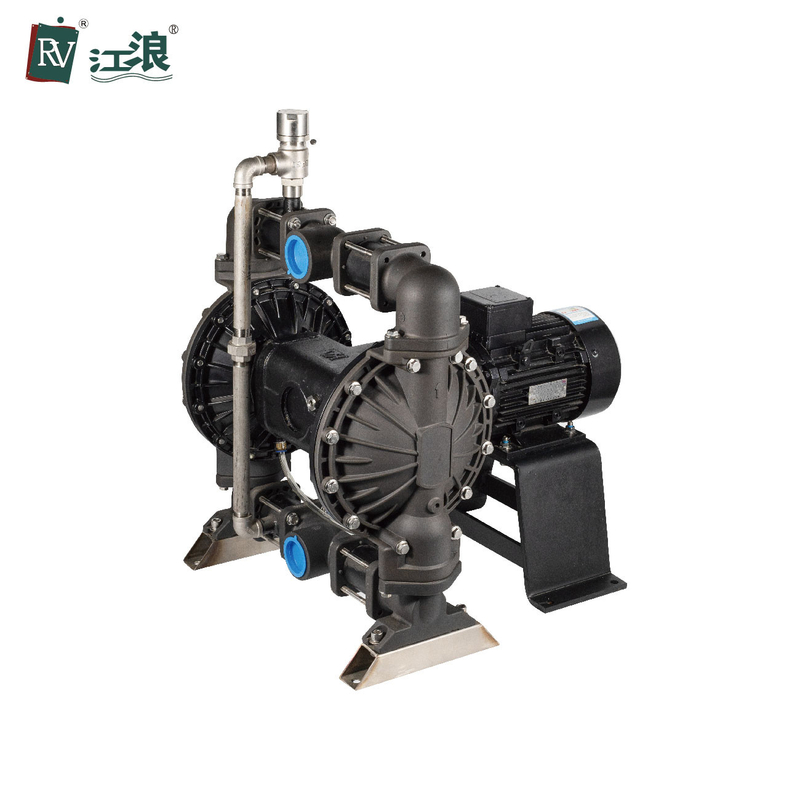

2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW

2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW
2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW

Large Image :  2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-F3311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW

Description
Materal: Aluminum Brand: RV
Color: Black Flow Rate: 3.5 M³/h
Suction Lift: 3 Meter Carton Size: 52*35*65cm
Size: 2 Inch Model: RVE-F3311-T
Certification: CE ATEX ISO9001 Power: Electric
High Light:

2 inch motor diaphragm pump 3KW

,

motor diaphragm pumps for paint 3KW

,

rv motor driven diaphragm pump

2 inch motor diaphragm pump for paint transfer aluminum 3KW



Electric Diaphragm Pump Advantages:


- Long service life
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts imported from USA
- Easy maintenance
- Lube free


MotorDiaphragm Pump Information:


- Model Type: RVE-A-F3311-T
- Wetted Parts: Aluminum
- Seat: SS304
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Threaded


Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 0

Model RVE-F3311-T
Max Flow Rate 10.5 m³/h
Max Reciprocating Speed 145 cpm
Max Suction lift 3m
Max head lift 30m
Max Pressure 6 kg
Motor Speed 1420
Motor Capacity 3KW
Temperature (Mental) 90
Temperature (plastic) 80
Weight AL pump 130kgs

Packing & Shipping:

2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 12 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 2
Our service


* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.



Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Shanghai Jianglang has established long term business relationship with famous enterprise. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".


2 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 32 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 42 Inch Motor Diaphragm Pump For Paint Transfer Aluminum 3KW 5
FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
