Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

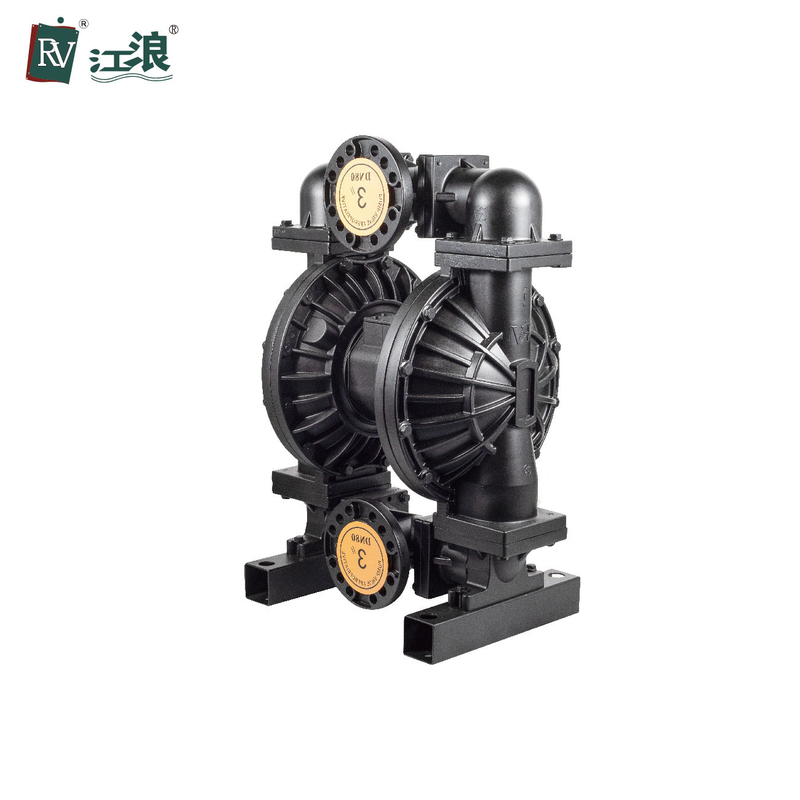

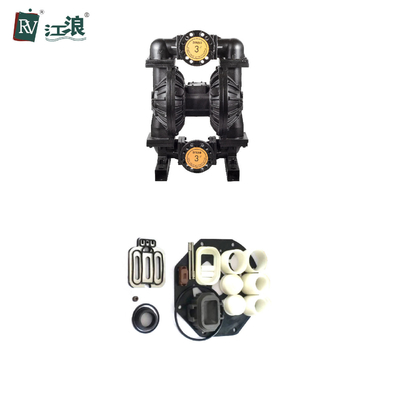

Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch

Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch
Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch

Large Image :  Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-K3311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch

Description
Product Name: Diaphragm Paint Pump Fuel: Air Driven
Brand Name: RV Model Number: RVA-K3311-T
Lift: 230 FT / 70meter Application: Resins, Latexes, Wood Preservative Stains, Concrete Paints And Primers
Material Of Diaphragm: PTFE Weight: 66 Kg
High Light:

Explosion Proof Air double diaphragm pump

,

Air double diaphragm pump for waste oil

,

Double diaphragm pump gas

3 Inch Aluminum Oil Paint Explosion-Proof Air Operated Double Diaphragm Pump



DESCRIPTION



RV diaphragm paint pumps are suitable for aggressive liquids, even with viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.

RV diaphragm paint  pump are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.



MAIN FEATURES

  • Available in PP, PVDF and AISI316
  • Suitable for viscosity fluids and solids in suspension
  • Suitable for corrosive atmospheres
  • Suitable for potentially explosive atmospheres in their ATEX
  • New generation PTFE diaphragms with embodied in/out piston
  • Ecological design ensuring a reduction of air consumption
  • Manufactured with anti-stalling circuit and ice barrier protectives to keep performances unaltered over time
  • Individually tested before shipment
  • Easy assembling and disassembling







Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight Aluminum 66kg




Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch 0

Performance curve diagram

Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch 1



Packing & Shipping:


Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch 2Explosion Proof Air Double Diaphragm Pump For Waste Oil 3 Inch 3







Spraying And Cleaning



Aluminum Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
