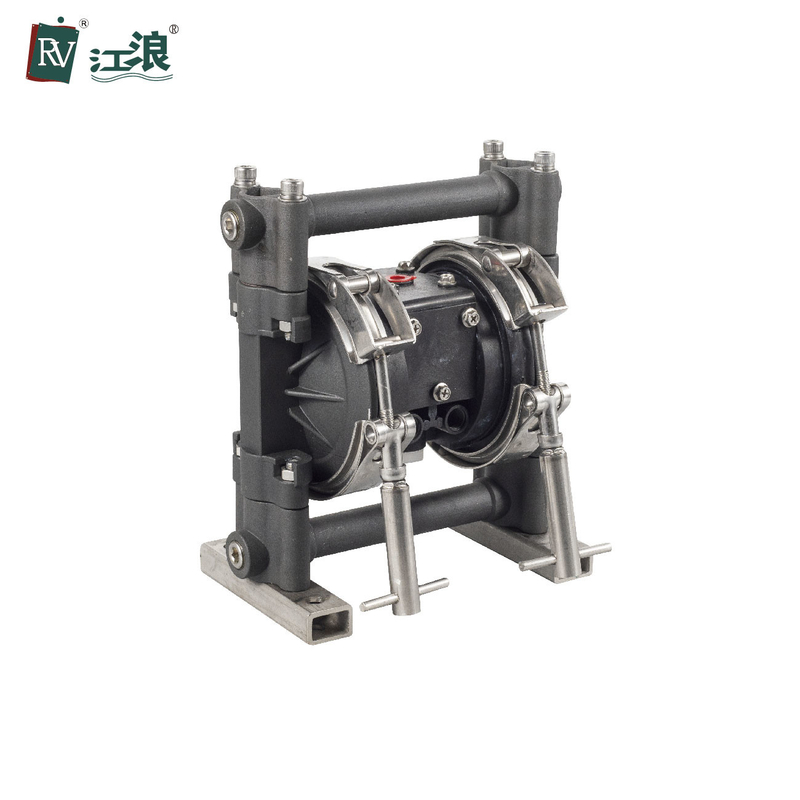

3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic

3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic
3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic 3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic

Large Image :  3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-33311-T(S)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic

Description
Product: RV10 Air Operated Diaphragm Pump Fluid Inlet / Outlet: 3/8 N. P. T.
Max. Operating Pressure: 100 Psi (6.9 Bar) Max. Self-priming Capaity: 5 M
Max. Diameter Of Passing Solids: 1mm - 1.6mm Maximum Flow: 7 G.p.m. (26.5 L.p.m.)
Air Inlet: ( Female ) 1/4 Material: Aluminum Max. Temp. 95 °C
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

3/8" Small diaphragm pump

,

Small diaphragm pump paint sprayer

,

double diaphragm pump paint sprayer

3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic


Diaphragm Paint Pump Advantages:



1. Explosion-proof, zero leak, simple operation
2. Idling capability,Self suction, No complex control
3. Diversity of material,no rotating parts,applicable to various erosive situations
4. Diaphragm, ball and ball seat adopt imported materials with longer service life
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair


Diaphragm Paint Pump Details:



A: Increased munber of ports for installation flexibility

B:Modular air valve for stall-free, low pulsation operation, providing smooth and rapid changeover

C:Up to 5x longer diaphragm life for less maintenance and downtime

D:Four bolt joint design provides even sealing pressure for optimal performance




Type RV10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight Aluminum: 3.9 kgs
Available body material Aluminum

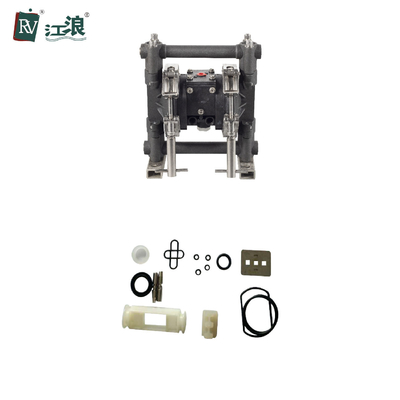

3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic 0
3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic 13/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic 2
Company Introduction:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


3/8" Small Diaphragm Pump Paint Sprayer Aluminum Air Diaphragm Pneumatic 3


FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.


2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.


3. Q: What is the delivery time?
A: Depend on the quantity.


4. Q: What about package?
A: Cartons with foam inside & wooden case.


5. Q: How are the products delivered to us?
A: By International express.


6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)


7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
