Product Details:
|
Product Name: | Diaphragm Paint Pump | Fuel: | Air Driven |
---|---|---|---|
Brand Name: | RV | Model Number: | RVP-53366-T |
Lift: | 230 FT / 70meter | Application: | Dinking Water Treatment, Raw Water Intake |
Material Of Diaphragm: | Santoprene | Weight: | 4.6kg |
High Light: | 400 cpm Reciprocating Air Double Diaphragm Pump,Air Double Diaphragm Pump 1/2 inch,Double diaphragm sludge pump |

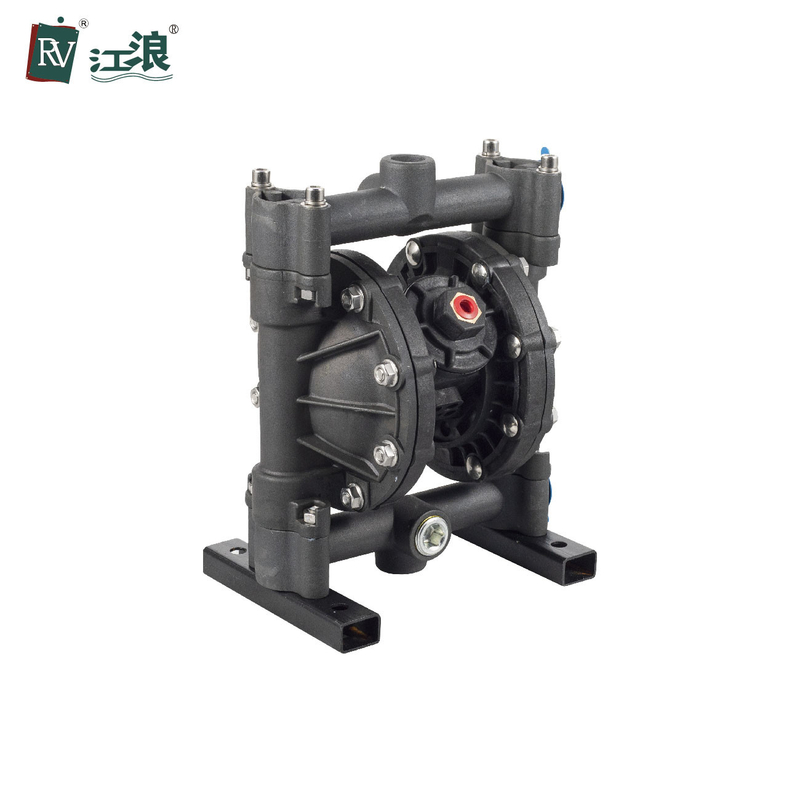

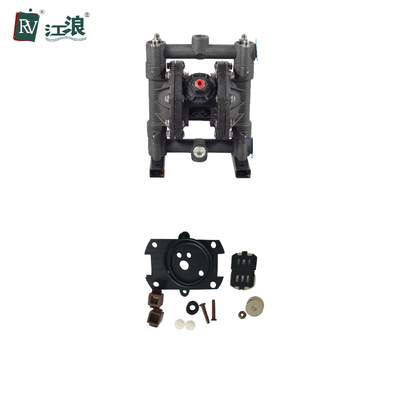

1/2 inch Aluminum Alloy Pneumatic Double Diaphragm Pump For Paint
DESCRIPTION
RV diaphragm paint pump are suitable for aggressive liquids, even with viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.
RV waste water diaphragm pump are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.
MAIN FEATURES
Max Discharge Pressure | 100 psi ( 0.7Mpa, 7bar ) |
Max Capacity | 15 gpm ( 57lpm ) |
Max Reciprocating Speed | 400 cpm |
Power | Pnuematic |
Max Permitted Grain | 3/32 in ( 2.5mm ) |
Advantages: | Explosion-proof |
Air Inlet Size | 1/4 in.npt (f) |
Air Outlet Size | 3/8 in.npt (f) |
Fluid Inlet Size | 3/4 in. |
Fluid Outlet Size | 3/4 in. |
Net Weight | 4.8kg |
Diaphragm Paint Pump Application
The diaphragm paint pumps use compressed air as power source, and it is the most advanced type of air operated diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
Packing & Shipping:
Spraying And Cleaning
Air driven double Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What're your payments ?
A: T/T,Western Union,L/C etc.
3. Q: What about the package ?
A: Standard export plywood case or carton.
4. Q: How long is the warranty ?
A: According to international standards, products in standard operation is 1 year,except wearable parts.
5. Q: The use of air diaphragm pump have?
A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.
Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.
Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.
6. Q: How air diaphragm pump quality and service?
A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
