Product Details:
|
| Materal: | PVDF | Brand: | RV |
|---|---|---|---|
| Minimum Order Qty.: | 1 | Delivery Time: | 5 Days |
| Weight: | 20.3 Kgs | Carton Size: | 490×280×660mm |
| Size: | 1 1/2 Inch | Payment Terms: | T/T |
| Certification: | CE ATEX ISO9001 | Feature: | Eco-Friendly |
| High Light: | Pneumatic Diaphragm Pump 1-1/2",1-1/2" air operated dosing pump,PVDF Air Operated Dosing Pump |
||

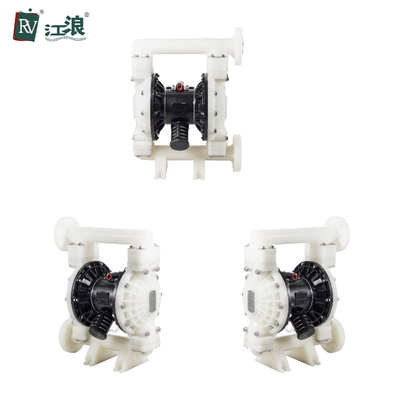

Plastic PVDF Pneumatic Diaphragm Pump 1-1/2" Air Operated Dosing Pump

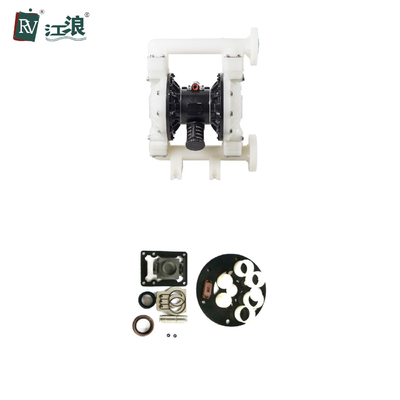

REPAIR, MAINTENANCE & OVERHAUL OF PLASTIC PNEUMATIC DIAPHRAGM PUMP
| Pneumatic Diaphragm Pump Application | |
| Max Flow Rate | 90 gpm(340lpm) |
| Structure | Pneumatic Diaphragm Pump |
| Max Suction Height (Dry Sucking) | 5m |
| Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) |
| Pharmaceutical factory |
Material handling or removable barrels material ( instead of drum pumps ) |
| Pharmaceutical chemical factory |
Material handling or removable barrels material ( instead of drum pumps ) |
| Electroplating Machinery |
Pumping plating material or wastewater replacement |
| Fluid Inlet Size | 1 1/2 in. |
| Fluid Outlet Size | 1 1/2 in. |
| Net Weight | 20.3 KG |
Packing & Shipping:
Our service
Pneumatic diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pneumatic diaphragm pump’s body.
Company Introduction:
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".
FAQ
1. Q: What is MOQ for pneumatic diaphragm pump?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment for pneumatic diaphragm pump?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for pneumatic diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for pneumatic diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for pneumatic diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the pneumatic diaphragm pump can be made of different standard?
A: Of course yes. We could pneumatic diaphragm pump product according to custom need.
