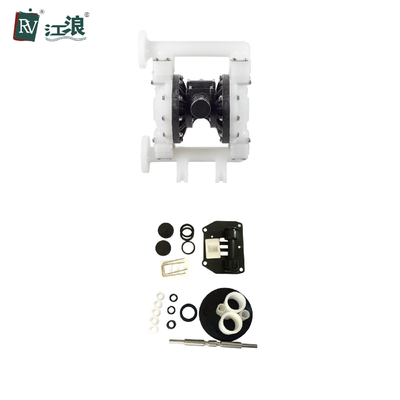

1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane

1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane
1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane 1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane

Large Image :  1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-B2A55-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane

Description
Materal: PP Brand: RV
Color: White Flow Rate: 446L/M
Weight: 18kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVP-B2A55-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
Highlight:

1-1/2 Inch plastic diaphragm pump

,

plastic diaphragm pump for water

,

diaphragm pump dirty water

1-1/2 Inch Plastic Diaphragm Pump For Water dirty Santoprene Membrane



Plastic Diaphragm Pump Advantages:


Most of industrial pumps today are made of metal, but there are also numerous special designs with respect to the material. These always depend on the medium to be handled, the technical process conditions, the industry, and also applicable standards. In principle, a distinction is made between the pump housing material and the material of the components that come into contact with the media.

Plastic diaphragm pump are often used as acid pumps or as chemical pumps or for other media that are very aggressive. Metal alloys such as stainless steel can also be used in some cases, especially if high temperatures are achieved.

Plastic Diaphragm Pump Function Description:



A Simple structure,reliable connection ,easy assembly and disassembly.
B Modular design,low air consumption,no dead spots and no need lubrication.
C Enhanced the chamber strength,has long_term durability.
D Bolts connection design,good seal.
E Adopt special grinding machine to process in high roundness and good seal.
F Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm.





Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 118 gpm(446lpm)
Max Reciprocating Speed 200 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Max Air Consumption 80scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight PP pump 16kg; PVDF pump20kg

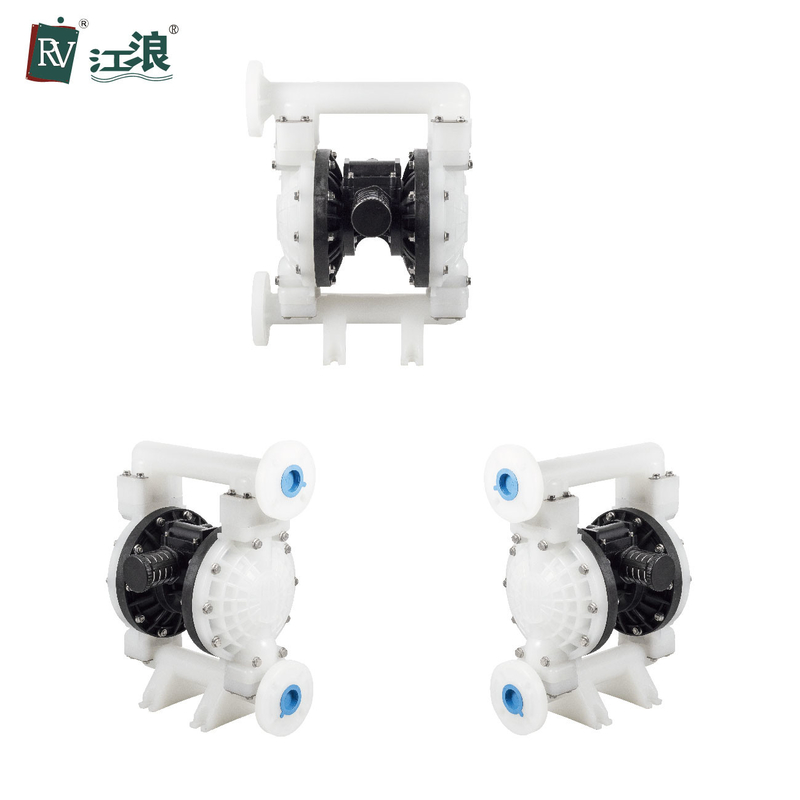

Display

1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane 01-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane 1


Packing & Shipping:

1-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane 21-1/2 Inch Plastic Diaphragm Pump For Water Dirty Santoprene Membrane 3
Our service


* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.







FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.

4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
