Product Details:
|
| Materal: | Polypropylene | Brand: | RV |
|---|---|---|---|
| Place Of Origin: | China | Usage: | Chemical |
| Application: | Sewage | Carton Size: | 560×350×750mm |
| Size: | 2 Inch | Noise Level: | Lower Than 70 Db |
| Theory: | Air Powered Double Diaphragm Pump | ||
| Highlight: | aluminum Polypropylene Diaphragm Pumps,Polypropylene Diaphragm Pumps well,diaphragm well pump |
||

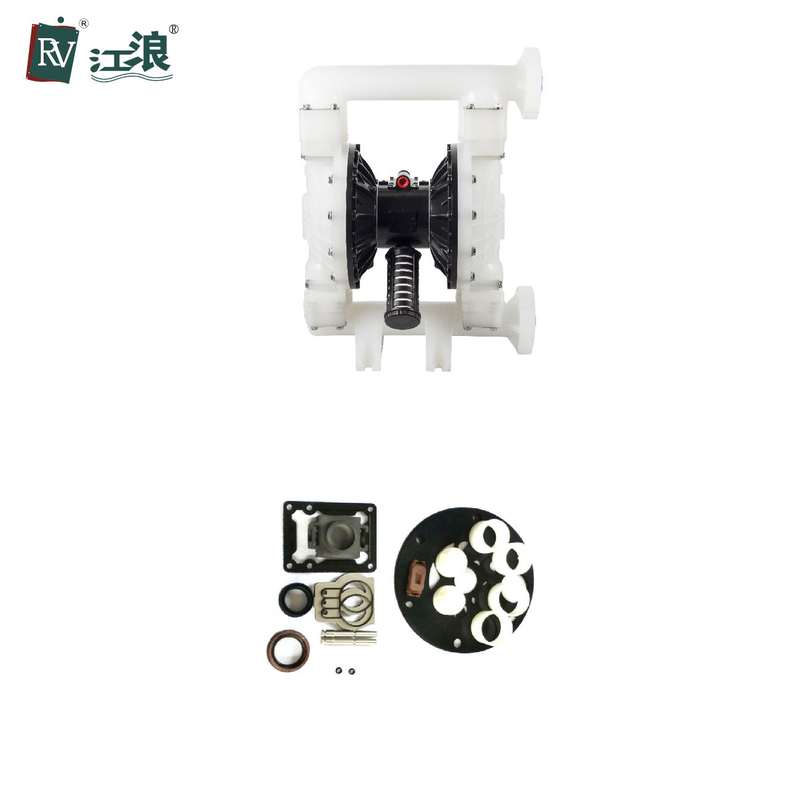

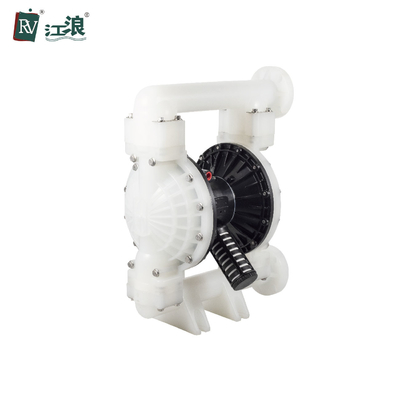

Aluminum Polypropylene Diaphragm Pumps Well Solar 2 Inch Low Pressure
Polypropylene Diaphragm Pump Description
Polypropylene pump (also know as a Membrane pump, air operated double diaphragm pump (AOOD) or pneumatic diaphragm pump) that uses a combination of the reciprocating action of a rubber, thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.
Pneumatic air diaphragm pump is a new transport machinery, is currently one of the most innovative pump. Using compressed gas as a power source for a variety of corrosive liquid, with particles of liquid, high viscosity, volatile, flammable, poisonous liquid can be pumped optical exhaustion. There are four pneumatic air diaphragm material: plastic , aluminum, cast iron , stainless steel.
| Polypropylene Pump Application |
| Max Flow Rate | 150 gpm (570 lpm) |
| Structure | Air Diaphragm Pump |
| Max Suction Height (Dry Sucking) | 5m |
| Chemical Factory | Material handling or removable barrels material ( instead of drum pumps ) |
| Pharmaceutical factory |
Material handling or removable barrels material ( instead of drum pumps ) |
| Pharmaceutical chemical factory |
Material handling or removable barrels material ( instead of drum pumps ) |
| Electroplating Machinery | Pumping plating material or wastewater replacement |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Net Weight | 30.7 KG |
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD)pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
