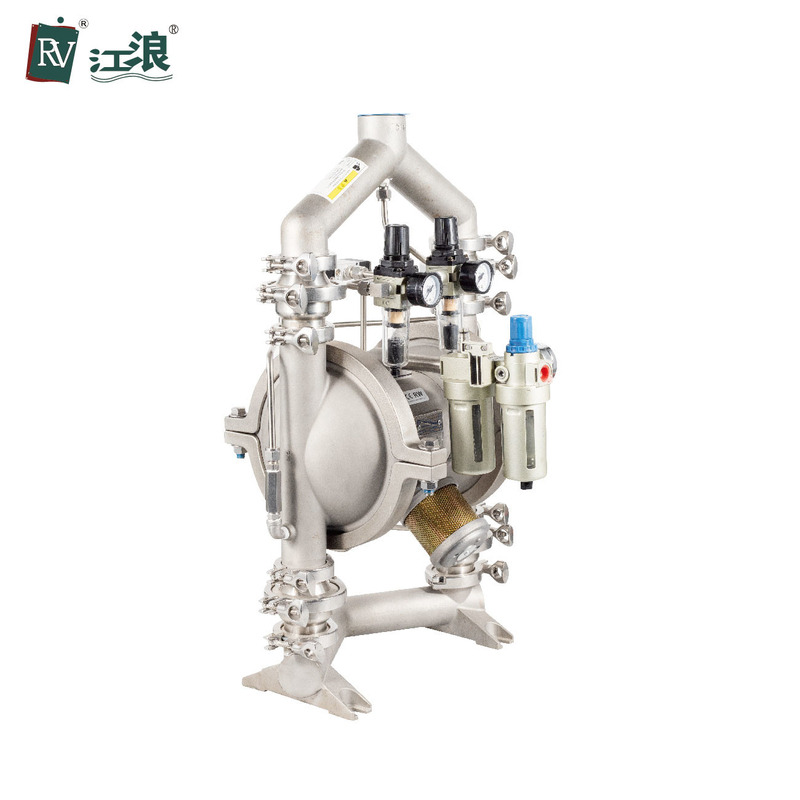

1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density

1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density
1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density

Large Image :  1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RV-PW-B4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density

Description
Product Name: Pneumatic Diaphragm Pump Horese Power: 8.4 Bar
Pressure: Circulating Pump Type: 1.5"inch
Head Lift: 20 M Suction Lift: 3 M
Ball: PTFE Membrane: PTFE
High Light:

1.5 Inch Transfer Powder Diaphragm Pump

,

air diaphragm powder pump

,

powder transfer diaphragm pump

1.5 inch Pneumatic Diaphragm Pump for Low Bulk Density Powder Transfer



Powder Pneumatic Diaphragm Pump Introduction

RV powder pump is a kind of pneumatic diaphragm pump, mainly used for pumping light powders. Compared with traditional powder transfer system, just like air mixture conveyor, screw conveyor, scraper conveyor, RV powder pump is simpler to install and easily to operate, which is more cost effective. RV powder pump has totally four specifications, the inlet and outlet port is ranging from 1” 1.5” 2” inch, the fluid contact material has aluminum, carbon steel, stainless steel 304 &316 as options. Depending on the varied fluid requirement and different applications, the materials of diaphragm are available in Santoprene, Buna-N, Hytrel, Neoprene, PTFE and .





PARAMETER



Place of Origin Shanghai, China
Power Source Pneumtic
Max. Flow Rate 1.2 m³/h
Power Driven Compressed air
Max Permitted Grain 0.8 g/cm³
Particles .≤10%
Air Inlet Size 1/2 in.npt(f)
Wetted End Stainless Steel
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.


1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density 0

Packing & Shipping:

1.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density 11.5 Inch Transfer Powder Diaphragm Pump Air Driven Low Bulk Density 2


Attention:
The bulk density of powder must be less than 0.8g/cm3, the powder particles should be less than or equal to 150 mesh. The conveying distance is related to particle size and bulk density (silicon dioxide= 45 meter, flour= 12 meter); the higher the density is, the smaller the conveying distance and flow rate are.



FAQ


Q1. Can I have a sample order for powder pneumatic diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.


Q3. Do you have any MOQ limit for powder pneumatic diaphragm order?
A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for powder pneumatic diaphragm pump?
A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
